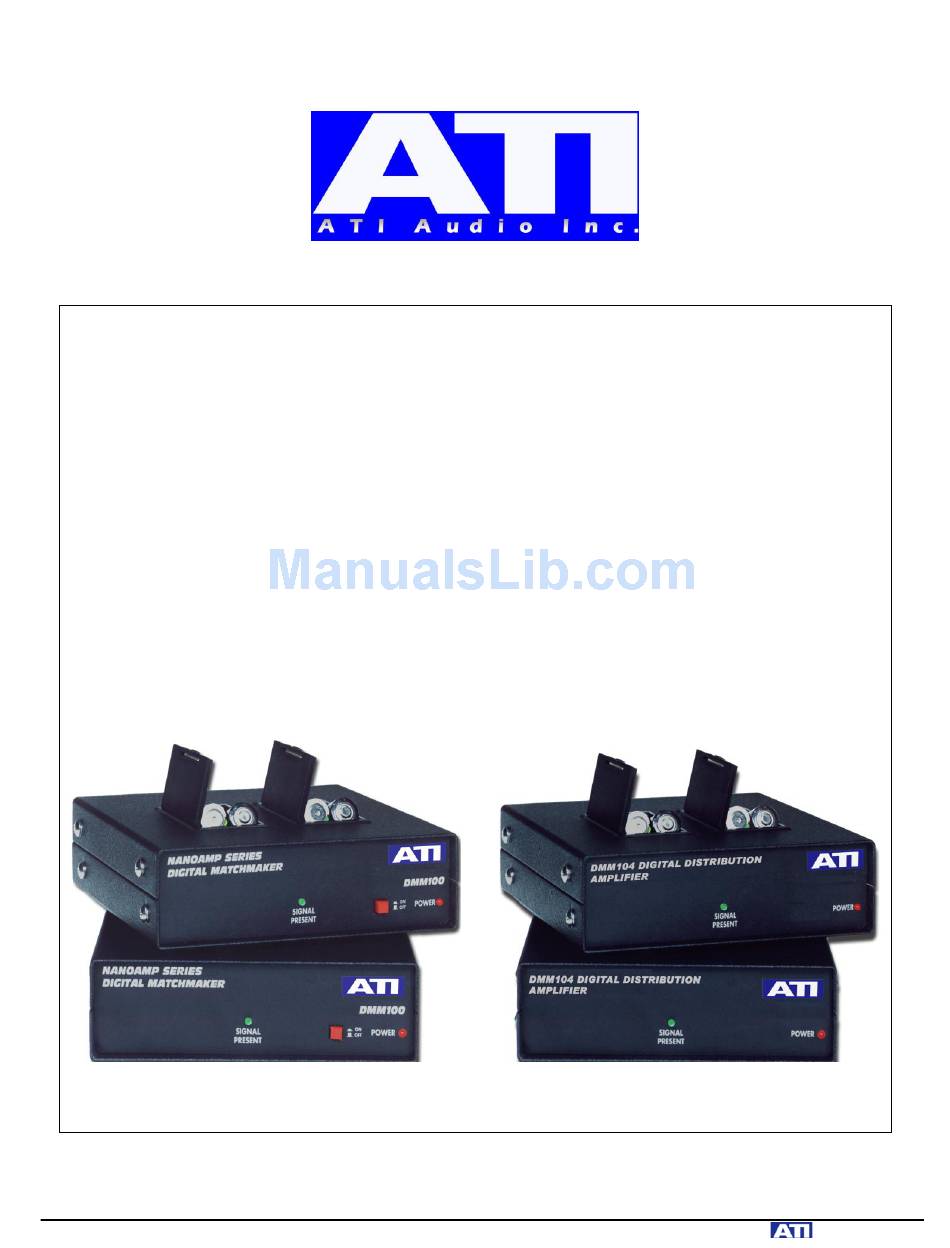

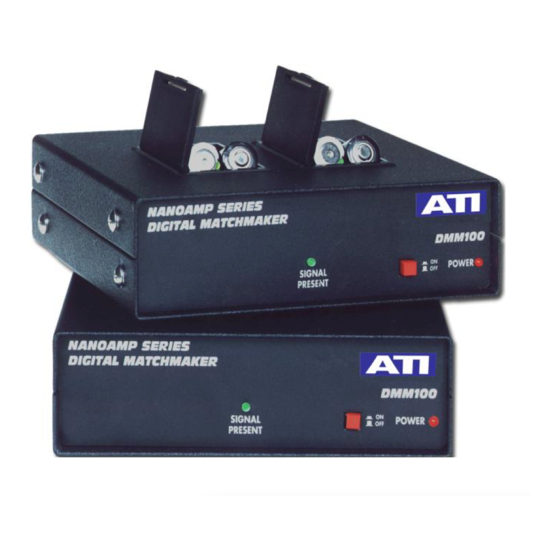

- Page 1 DMM100 & DMM100-BAT Digital Audio MatchMaker ® DMM104 & DMM104-BAT 1X5 Digital Audio Distribution Amplifier OPERATING AND MAINTENANCE MANUAL © Copyright 2011, ATI Audio Inc. ATI Audio Inc. ■ Tel: 856-626-3480 ■ Fax: 856-504-0220 ■ sales@atiaudio.com ■ www. audio.com...
- Page 2 A professional device may indicate whether the encoded audio is a stereo signal or two monaural channels. The DMM100 doesn’t care about any of these details and just outputs a clean copy of the original data stream to the smart boxes that do.
- Page 3 The DMM104 simultaneously drives four RCA S/PDIF outputs and one TOSLINK™ output. Propagation delay through either the DMM100 or the DMM104 is less than 100nS and jitter is under 5nSp-p. All electrical inputs and outputs are transformer isolated, floating and DC blocked to eliminate ground loop hum and jitter and to prevent transformer saturation due to accidental superimposed DC line voltages.
- Page 4 Carry case with shoulder strap houses DMM products with power modules, attaches to PROK-1 (included). Allows easy access to battery holders. NOTES: TOSLINK Interconnect cables up to several feet long are available separately. ATI Audio Inc. ■ Tel: 856-626-3480 ■ Fax: 856-504-0220 ■ sales@atiaudio.com ■...
- Page 5 ATI reserves the right to modify or discontinue, without prior notice to you, any model or style product. If warranty problems arise, or if you need assistance in using your product contact us. ATI Audio Inc. ■ Tel: 856-626-3480 ■...
