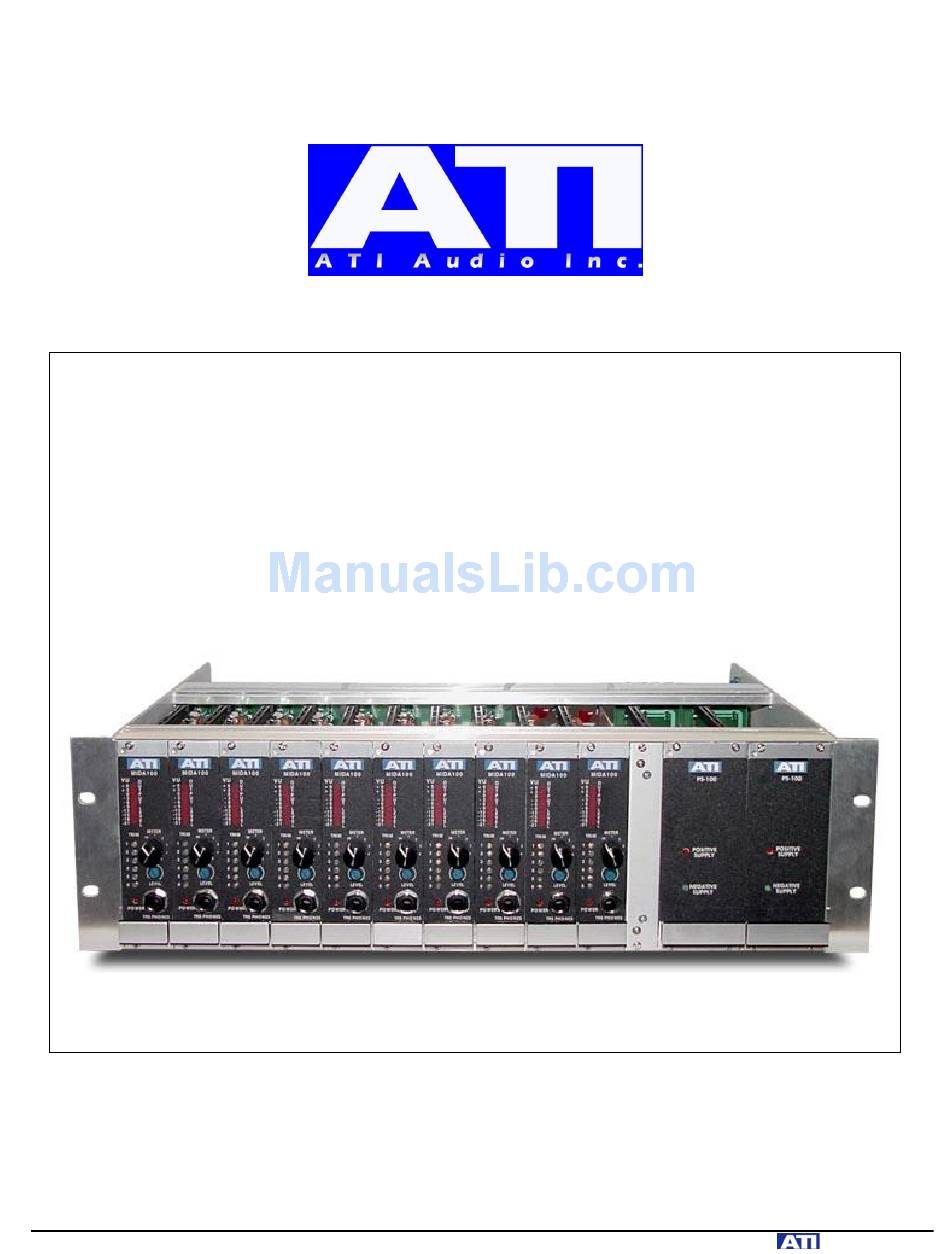

- Page 1 SYSTEM 10K MODULAR AMPLIFIER RACK SYSTEM OPERATING AND MAINTENANCE MANUAL © Copyright 2011, ATI Audio Inc. ATI Audio Inc. ■ Tel: 856-626-3480 ■ Fax: 856-504-0220 ■ sales@atiaudio.com ■ www. audio.com...

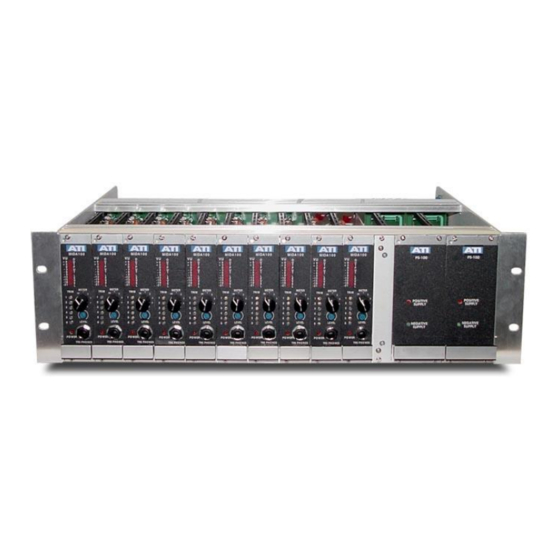

- Page 2 SYSTEM 10K Modular Amplifier Rack System SYSTEM DESCRIPTION The System 10K Modular Amplifier System is a flexible and efficient high performance audio distribution system. The System 10K combines up to ten amplifier modules with two (redundant) power supplies in a 5-1/4" high (3RU) by 19"...
- Page 3 Dual power transformers in each module run cooler and generate minimal hum field. DC lines are fully bypassed. AC line filtering, non-concentric wound power transformers and varistor clippers suppress power line transients and RF feed-through. ATI Audio Inc. ■ Tel: 856-626-3480 ■ Fax: 856-504-0220 ■...
- Page 4 Special tools for wire insertion into the MTA connectors include a simple and inexpensive maintenance type tool, AMP 59803-1, and a precision ratchet type self-indexing hand tool, AMP59801-1. Consult factory for more information. ATI Audio Inc. ■ Tel: 856-626-3480 ■...
- Page 5 The System 10K uses only three-wire grounded power plugs. The third wire ground can cause a ground loop with your facility ground. If you are sure your facility ground will provide adequate protection to personnel in case of an AC line short to chassis, a 3-to-2 AC adaptor can be used to isolate the power line ground.
- Page 6 ACCESSORIES A full complement of operational accessories is available for use with your System 10K. A partial list follows. Consult the factory or a current price list for a current listing. BP100-1 Blank Front Panel, 1.2 inches wide, required to replace missing...
- Page 7 ATI reserves the right to modify or discontinue, without prior notice to you, any model or style product. If warranty problems arise, or if you need assistance in using your product contact us. ATI Audio Inc. ■ Tel: 856-626-3480 ■...
