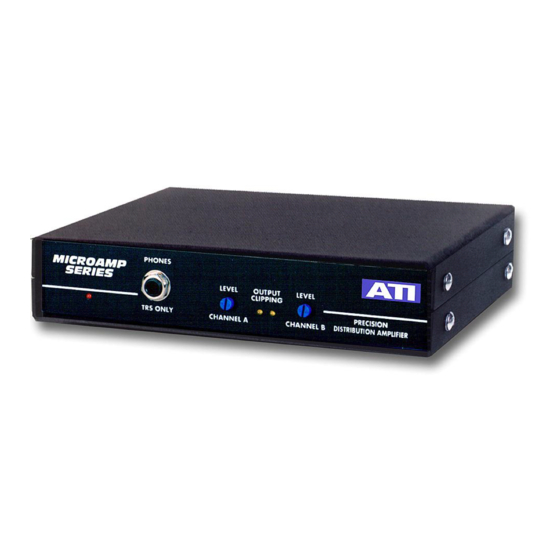

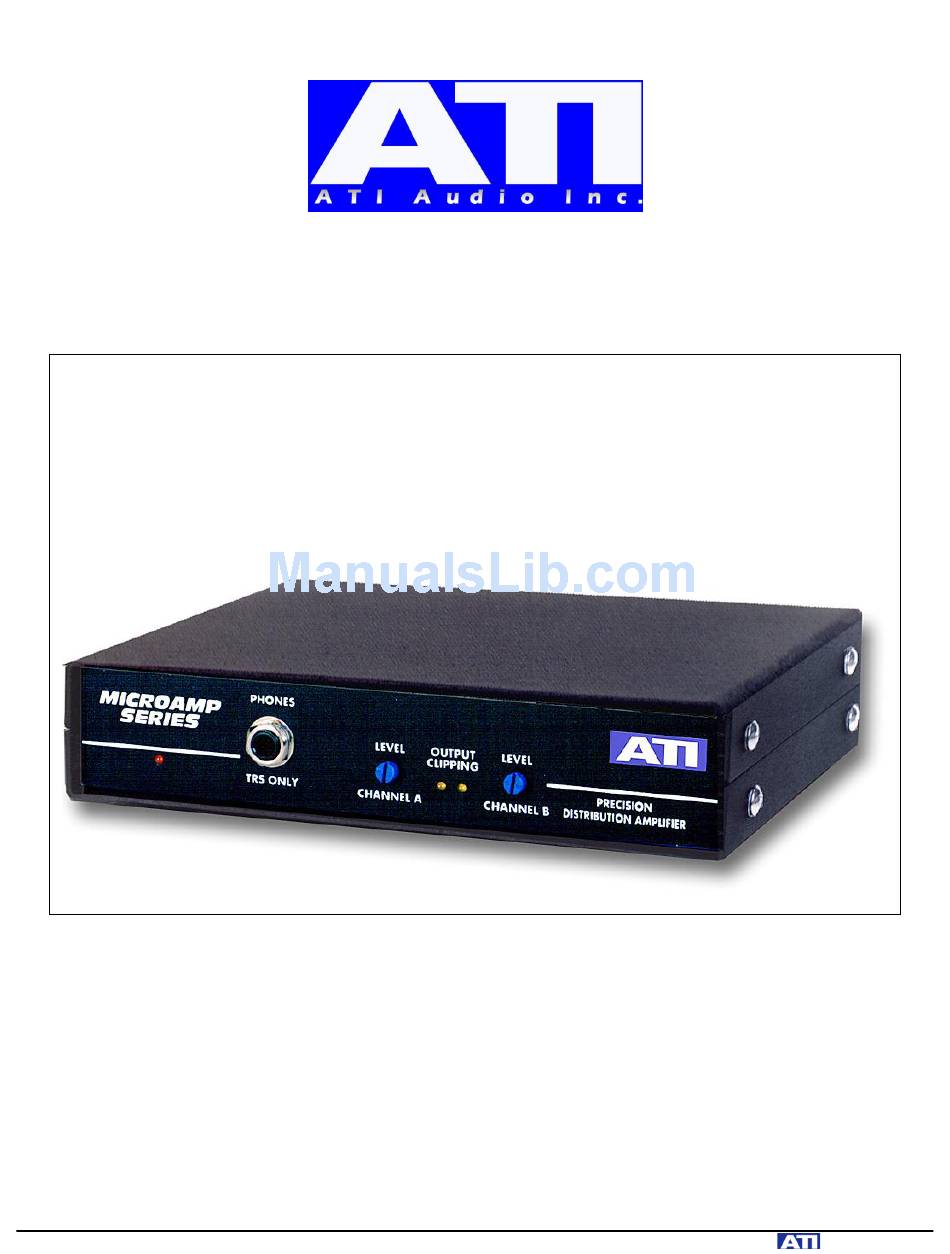

- Page 1 DA2008-1 DUAL 1X4 DISTRIBUTION AMPLIFIER OPERATING AND MAINTENANCE MANUAL © Copyright 2011, ATI Audio Inc. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www. audio.com ■ ■...
- Page 2 IC amplifiers driven to full output at high frequencies and the freedom from increasing harmonic distortion vs. frequency. As used in the DA2008-1, a minimum of 40dB of loop gain is available for 100:1 distortion reduction even at 20kHz. All program audio...
- Page 3 Drive single ended loads from either the HI or LO output to ground. Up to 16 single-ended 600 ohm output loads may be simultaneously driven by the DA2008-1. The build-out resistors are split and heavily bypassed to prevent RF pickup on the output lines from affecting operation of the DA.
- Page 4 INSTALLATION MOUNTING Your DA2008-1 may be desk mounted on its non-slip suction cup feet, or securely rack mounted with our optional 21075-501 Rack Mount Shelf. Since the DA2001-8 is 1/2 rack width, the 21075-501 supports up to two units side by side.
- Page 5 J1 and J3 and inserting a jumper in the J2 holes. Gain To increase gain by 10db, change R25 and R26 to 680 ohms and increase C23 and C24 to 68 microfarads. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www.
- Page 6 DA2008-1 Technical Specifications OUTPUT CLIPPING LEVEL: +24 dBm/600 ohms DISTORTION: @ +24 dBm output .2% maximum THD, 20Hz to 20kHz and input levels to +24 dBm ±.25dB, 20Hz to 20kHz, –3 db at 100KHz FREQUENCY RESPONSE: OUTPUT NOISE: -70dBm maximum...
- Page 7 ATI reserves the right to modify or discontinue, without prior notice to you, any model or style product. If warranty problems arise, or if you need assistance in using your product contact us: ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■...
