Page 1: Distribution Amplifiers

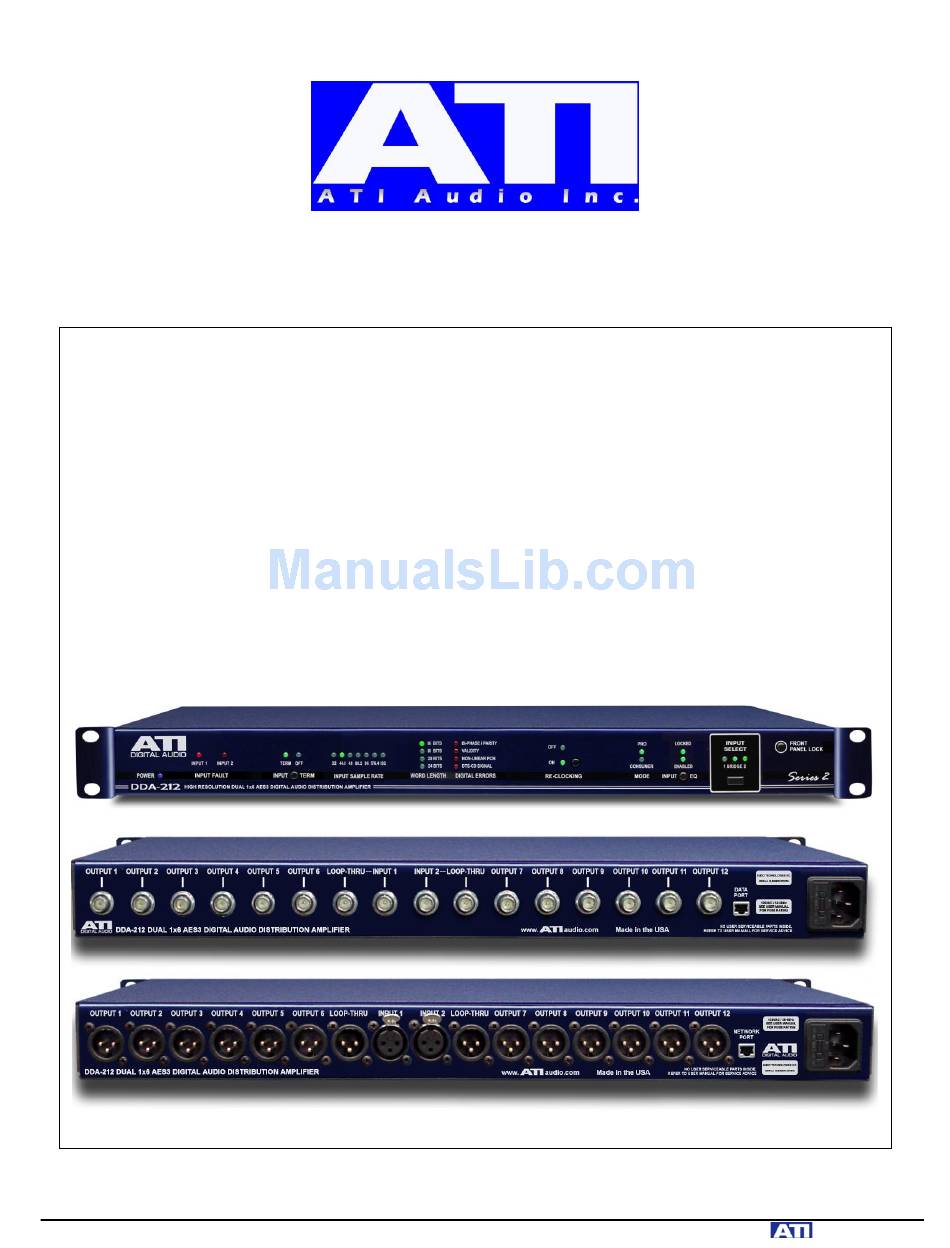

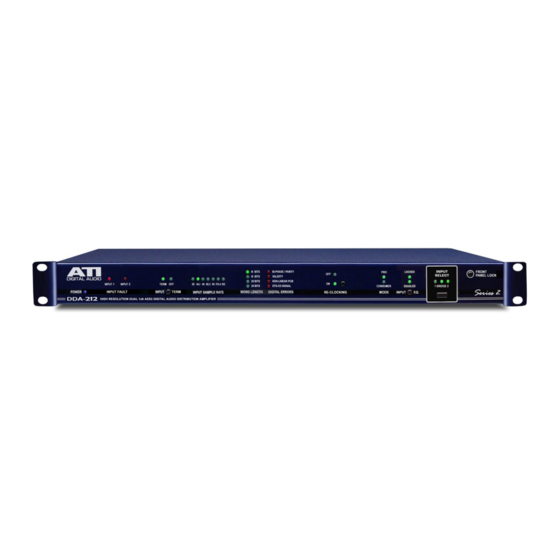

DDA-212 SERIES 2 Models DDA-212BNC and DDA-212XLR 192kHz AES/EBU DIGITAL AUDIO DISTRIBUTION AMPLIFIERS OPERATING AND MAINTENANCE MANUAL © Copyright 2011, ATI Audio Inc. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www. audio.com ■ ■... - Page 2 S/PDIF (consumer) formatted digital audio data differs primarily in the use of consumer type "RCA" audio connectors in an unbalanced 75 ohm system and can be handled by a DDA-212BNC with use of an RCA-to-BNC input cable. Input Loop-through connections for each of the two inputs are provided to permit multiple units to be stacked, or to insert the DDA-212 into your digital workflow.
- Page 3 The audio data may be 16 to 24 bits at sample rates from 27 to 192 kHz. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■...
- Page 4 EQ button to enable automatic equalization. Input Select The Input Select switch has four modes of operation. Press the Input Select switch repeatedly to advance through the four following operating modes: ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www.
- Page 5 OUTPUT DRIVERS DDA-212XLR units are equipped with balanced, 110-ohm, transformer coupled outputs and XLR type connectors. DDA-212BNC units use the alternative 75- ohm unbalanced outputs to BNC coax connectors. The XLR outputs are in full compliance with specification AES3-1992 and the BNC outputs are in accordance with the recommendations of AES-3id-1995.
- Page 6 Select a cable for losses less than 20dB at 12MHz (for data rates up to 96kHz) at the maximum distance you require. Runs up to 1000 meters should be readily achievable with low loss coax. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■...
- Page 7 IEC320 3 pin connector 1 RU, 19”(48.3cm) W X 1.75”(4.5cm) H X 8.5”(21.6cm) D SIZE WEIGHT 7 lbs (3.2kg) net; 9 lbs (4.1kg) shipping weight MODELS: DDA-212XLR DDA-212BNC ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■ sales@atiaudio.com www. audio.com ■ ■...
- Page 8 ATI reserves the right to modify or discontinue, without prior notice to you, any model or style product. If warranty problems arise, or if you need assistance in using your product contact us. ATI Audio Inc. ■ Tel: 856-626-3480 Fax: 856-504-0220 ■...
