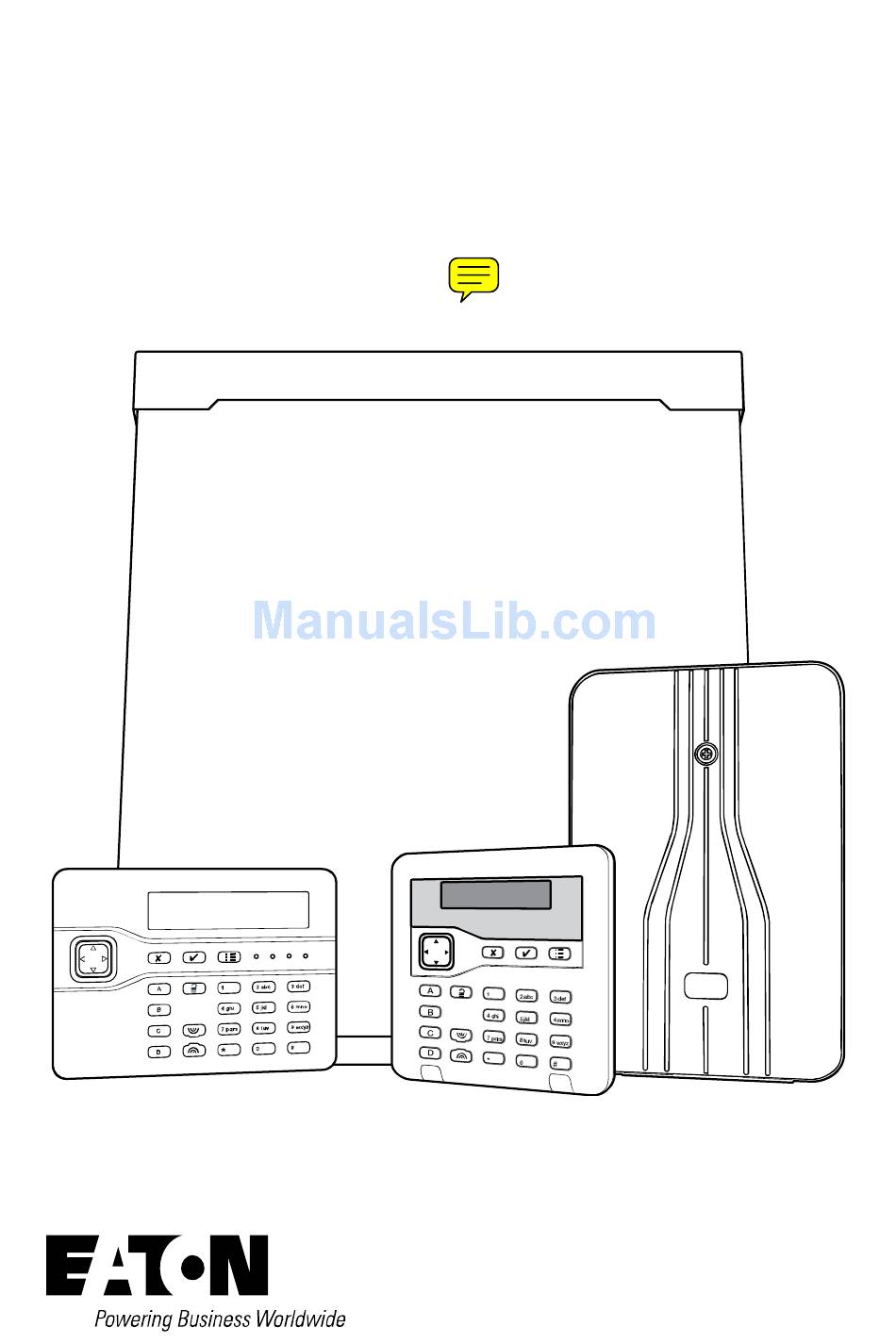

  • Page 1 Security System Installation Guide Issue 9...
  • Page 2 © Eaton’s Security Business. 2014 IN NO EVENT WILL EATON’S SECURITY BUSINESS BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL , OR INDIRECT LOSS OR DAMAGE, INCIDENTAL DAMAGES, STATUTORY DAMAGES, EXEMPLARY DAMAGES, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF ANTICIPATED SAVINGS, LOSS OF BUSINESS OR OPPORTUNTIY, LOSS OF GOODWILL OR INJURY TO REPUTATION, LIQUIDATED DAMAGES OR LOSS OF USE, EVEN IF INFORMED OF THE POSSIBILITY OF SUCH DAMAGES.

  • Page 3: Table Of Contents

    Transferring to Another Keypad ....27 CONTENTS Leaving the Installer Menu ......27 Important! Saving Changes ......28 1. Introduction ............1 Re-Entering the Installer Menu ....28 Communications ..........1 Defaulting Access Codes ......28 Level Setting or Partitioned System ....1 Restoring Factory Defaults Only ....
  • Page 4 This page is intentionally blank. Page iv...

  • Page 5: Introduction

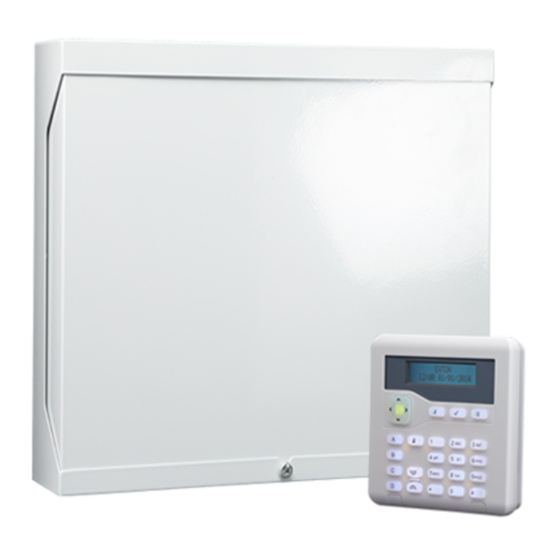

    Grade 2). Note: If the system uses radio HUDs, and no The i-on160EX is a control unit for a hybrid other radio transmitters, then the system can be wired/wirefree alarm system intended for approved as Grade 3, provided the rest of the domestic, commercial or industrial use.

  • Page 6: Installer Programming Interface

    Partitioned System. In a Partitioned system the i- on160EX provides the equivalent of 20, smaller, independent alarm systems. Each system is a “Partition” of the i-on160EX. You can allocate zones freely to each Partition (although Eaton’s Security Business recommends that each zone belongs to one partition only, simply to make the resulting system easier to program).

  • Page 7: Before You Begin

    Within a protected area. Do NOT site the unit: If you intend to fit radio expanders you should conduct signal strength tests. Eaton’s Security In the entry or exit areas, or outside the area Business produce the Scantronic 790r hand held covered by the alarm system.

  • Page 8: Guided Tour

    Before You Begin i-on160EX In the entry or exit areas, or outside the area covered by the alarm system. Close to or on large metal structures. Closer than one metre to mains wiring, metal water or gas pipes, or other metal surfaces.
  • Page 9 Before You Begin 1. Case back. 2. Cable entry holes for -LS1+ -LS2+ AUX STB BELL TR 14V4 TAMP BELL loudspeakers, siren/strobes and communicators. 3. Fixing holes. 4. Plastic PCB tray. KICKSTART 5. Printed circuit board (PCB). 6. Cable entry holes for detector...

  • Page 10: Keypads

    Before You Begin i-on160EX Keypads i-kp01 Controls and Displays 1. Central keyhole. 2. Rear tamper shroud. 1. LCD display (2 x 20 characters). 3. Cable entry. 2. Programming keys. 4. Fixing holes. 3. Navigation keys Figure 7 Keypad Rear Housing 4.
  • Page 11 Before You Begin KEY-K01/KP01/KPZ01 Controls and Displays Figure 10 Opening the Keypad 1. LCD display 2. Programming keys. 3. Navigation keys. This key has built-in alert LEDs. 4. Setting and unsetting keys. The ABCD keys have built-in status LEDs that can show the setting status of a part setting system.

  • Page 12: Expanders

    Before You Begin i-on160EX 1. Tamper switch. 2. Sounder. 3. Connector for KEY-EP. 4. Sounder volume control. 5. Connector for control unit bus. 6. Jumpers for: 6a Addressing (not used in i-onEX control units). 6b LED functions and RS485 bus termination.
  • Page 13 Before You Begin 1. Cable entry (also behind PCB). 2. Central keyhole. 3. PCB. 4. Relay card (i-rc01) connector. 5. Aux power. 6. Link to enable/disable front/rear tamper switch. 7. Lid tamper (rear tamper behind pcb). 8. Zone connectors 9.
  • Page 14 Before You Begin i-on160EX 1. Cable entry (also behind PCB). 2. Antenna. 3. Central keyhole. 4. PCB. 5. Link to enable/disable front/rear tamper switch. 6. Lid tamper (rear tamper behind PCB). 7. Bus termination jumper. 8. Addressing button. 9. Fixing holes.

  • Page 15: Power Availability

    12V. The following calculation shows a simplified example: in an alarm system with an i-on160EX Screened cable may prove necessary if the control unit, five i-kp01 keypads, three expanders...

  • Page 16: Bus Termination

    Bus Termination Voltage Drop The i-on160EX bus uses the RS485 interface. In order for the system to work correctly, the Because of this the ends of the line in some voltage at each device must NOT drop below configurations may be terminated to improve 10.5V even when running on the standby battery.
  • Page 17 The supply must two. have a "floating zero volt rail" if connected to the bus, otherwise an earth fault will occur. Eaton’s Reducing Voltage Drop - Method 2: Security Business recommend the EXP-PSU. Supply the detection devices from the Aux output When installing a remote power supply, fit it close on separate cores.

  • Page 18: Installation

    3. Installation Note: The installation steps listed below assume that you have already decided on the required number and location for all keypads, expanders and power supplies. Caution: Static Electricity Like many other electronic products, the control unit, keypads and expanders contain components that are sensitive to static electricity.

  • Page 19: Installing The Lid/Back Tamper

    Installation WARNING Ensure that the fixings are strong KEY-EP, or prox readers used by other systems enough to support the weight of the control unit, (for example access control systems). If you its lid and two 17Ah lead acid batteries. The total...

  • Page 20: Connecting Keypads

    ABCD-ON ABCD-ON Installation i-on160EX ABCD-ON below) BACKLIGHT The key backlights are BRIGHT BACKLIGHT disabled. They will BRIGHT BACKLIGHT glow briefly for five BRIGHT seconds when a user presses a key. BACKLIGHT BRIGHT BACKLIGHT The key backlights BRIGHT BACKLIGHT glow all the time at BRIGHT normal intensity.
  • Page 21 Installation 3. Press  repeatedly to system. select one of the 3. Open the keypad tamper. following: 4. Press and hold down B and MENU Status OK LED ON ().  together for at STATUS OK LED  least two seconds.
  • Page 22 Installation i-on160EX KEY-EP External Prox Reader Figure 26 shows the outside details of the external prox reader KEY-EP: Figure 27 Opening External Prox Reader Figure 28 shows the details of the external prox reader backplate: 1. LED window. 2. Retaining Screw.

  • Page 23: Tone Volume - All Keypads

    Installation Control Unit Expander +12V 12V AUX 0V +12V A To next device Figure 30 Wiring Expanders Addressing Expanders The control unit assigns addresses to all devices connected to the bus cable. You can start this process off from the Installer Menu, during the initial power up.

  • Page 24: Step 6. Connect Wired Zones

    Installation i-on160EX Figure 34 shows the wiring for CCL zones on the EXP-WCC wired expander. Note that the EXP- WCC provides connectors for a total of ten separate 4-wire CCL detectors, and that there are separate terminals for both alarm and tamper.
  • Page 25 Installation 100 Ohms Alarm contacts 2K2 EOL Zone 1 Tamper contacts Wired Expander Zone 0 Alarm contacts 2K2 EOL 100 Ohms Tamper contacts Figure 36 FSL Zone Wiring – Control Unit Alarm contacts 2K2 EOL Zone 1 Figure 37 shows the wiring connections for FSL Tamper contacts zones on the EXP-W10 expander.

  • Page 26: Shock Sensors And Roller Shutter Sensors

    500mA when active. By default outputs 3 and 4 The i-on160EX-EUR can support roller shutters are 0V when active, +12V when inactive. If you and shock sensors. (This does not apply to the i-...

  • Page 27: Auxiliary Tamper

    OR a 4k7 resistor if using 4k7/4k7 FSL. Do not contacts together with a short length of wire. use any other FSL resistor combinations. CC wiring Eaton’s Security Business does NOT In the Installer Menu, program the zone with a type of “Tamper”. Program the outputs used to...

  • Page 28: Remote Loudspeakers (Optional)

    Installation i-on160EX Step 8. Fit a Plug-By Communicator The control unit can be connected to a separate communicator or speech dialler (for example, the Scantronic 8400, 660 or RedCare STU). Figure 48 shows the connections provided by the communications wiring harness. Note that the output types shown in Figure 48 are the Factory default types.

  • Page 29: Step 9. Fit And Connect Battery

    Installation 3. Plug the Communication Wiring Harness onto order to comply with EN60950 (this standard the communications connector on the main applies because of the energy content of 17Ah PCB. batteries). If the system has already been installed: See page 11 for example calculations of battery requirements.
  • Page 30 Installation i-on160EX  seconds while the control unit scans the bus.  When the control unit has finished scanning 9. Press  to select the security grade you the bus the keypads show: intend to use for the system. ...

  • Page 31: Transferring To Another Keypad

    Installation example, the second keypad would be: Leaving the Installer Menu  If you wish to leave the Installer Menu at any time.  For expanders:  1. Press until the display shows the words:. Open the lid (to make sure that the tamper ...

  • Page 32: Important! Saving Changes

    Installation i-on160EX Important! below). Saving Changes At Security Grade 2 the default user access code is “1234”. At Security Grade 3 the code When you make changes to the Installer Menu the is “123456”. control unit holds those changes in temporary memory until you leave the Installer Menu.

  • Page 33: Restoring Factory Defaults Only

    Press  OR: Press  to load defaults. to see any other items in the list. Note: If you are using an i-on160EX please go to 10. Press . step 5. The display shows: If you press ...

  • Page 34: Step 11. Commission The System

    Program the System Program the system to suit user requirements. Page 31 is a summary of the Installer Menu on the i-on160EX. Please see the i-on Range Engineering Guide for a more detailed description. Note: make sure that you allocate keypads correctly to partitions.

  • Page 35: Installer Menu

    Installer Menu Quick set Send tamper as burg 1 DETECTORS/ DEVICES 3 SETTING OPTIONS Quick omit Dynamic Test Call Detectors Full Set User code reqd Static Test Call Add/Del Detectors Name 2 Way Replies Unset Comms Program Zones Exit mode...
  • Page 36 Appears only when Report Type = Fast Format AND Confirmation Mode = Basic Shows “None” if no module fitted. Must be activated by a Eaton’s Security Business External Support Manager. Appears only on control units with Ethernet connector or with a suitable module fitted.

  • Page 37: Maintenance

    Note: If you are replacing a keypad on a single- 4. Maintenance keypad system then you will have to re-program the new keypad with all the functions of the old The control unit should be inspected once per keypad, including any non-default ABCD key year.

  • Page 38: Technical Specification

    Product 160 zone endstation with Internal Clock ±10 minutes over one year Description remote keypads. Eaton’s Security Business. (depending on the accuracy of Manufacturer the mains supply frequency). Environmental Class II. User Codes 500 (plus installer code) Operating Tested -10 to +55°C.

  • Page 39: En50131-6 Ratings

    Plug-by 5mA each when active. EN50131-6 ratings Communicator pins The i-on160EX provides space for two 17Ah require: batteries, giving a total of 34Ah charge. 10 FSL zones 20mA 5x4-wire CCL zones 30mA Under EN50131-1 for Security Grade 3 12V Bus output 10±0.5V to 13.8V...

  • Page 40: Sounder Volume Levels (At 1M)

    Other Third party testing carried out by Anpi. Compatible Equipment If you wish to connect the i-on160EX control unit to a PC using either the Ethernet or the USB port then make sure that the cables have the following specifications:...

  • Page 41: Setting / Unsetting - Fobs

    Technical Specification KEY-KP01 keypad with internal prox Communicators reader and terminals for i-dig02 PSTN Communication (ARC external prox reader only). KEY-KPZ01 keypad, with internal prox i-gsm02 GSM communications reader, two zones, one module output and terminals for i-sd02 PSTN Communication...
  • Page 42 This page is intentionally blank. Page 38...
  • Page 43 This page is intentionally blank. Page 39...
  • Page 44 Product Support (UK) Tel: +44 (0) 1594 541978. Available between: 08:30 to 17:00 Monday to Friday. Product Support Fax: (01594) 545401 email: techsupport@coopersecurity.co.uk Part Number 12396236 6/1/2014 Page 40...
