Menu and Submenus

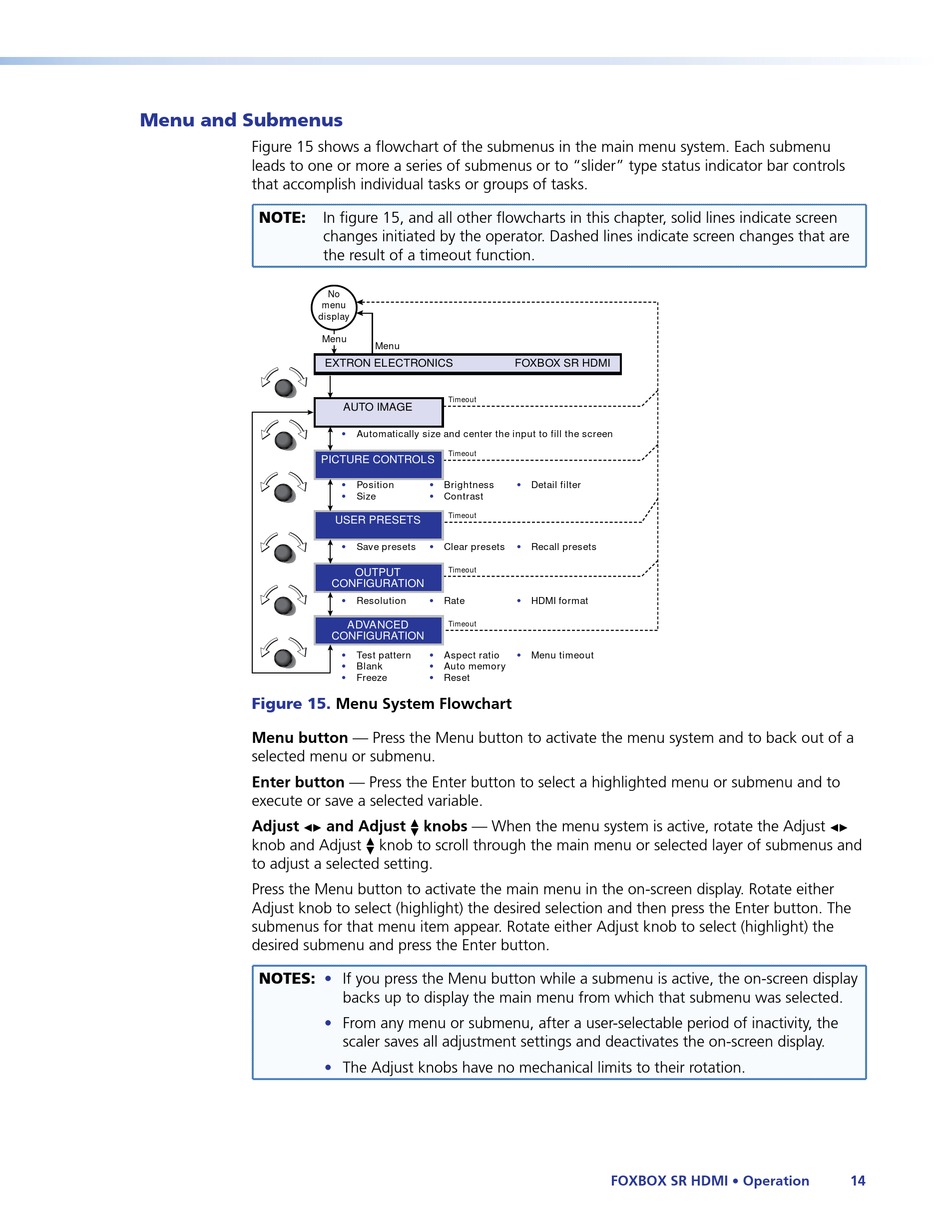

Figure 15 shows a flowchart of the submenus in the main menu system. Each submenu
leads to one or more a series of submenus or to "slider" type status indicator bar controls
that accomplish individual tasks or groups of tasks.
NOTE:
display
Figure 15.
Menu button — Press the Menu button to activate the menu system and to back out of a
selected menu or submenu.
Enter button — Press the Enter button to select a highlighted menu or submenu and to
execute or save a selected variable.
Adjust [ and Adjust { knobs — When the menu system is active, rotate the Adjust [
knob and Adjust { knob to scroll through the main menu or selected layer of submenus and
to adjust a selected setting.
Press the Menu button to activate the main menu in the on-screen display. Rotate either
Adjust knob to select (highlight) the desired selection and then press the Enter button. The
submenus for that menu item appear. Rotate either Adjust knob to select (highlight) the
desired submenu and press the Enter button.
NOTES:
In figure 15, and all other flowcharts in this chapter, solid lines indicate screen
changes initiated by the operator. Dashed lines indicate screen changes that are
the result of a timeout function.
No
menu
Menu
Menu
EXTRON ELECTRONICS
Timeout
AUTO IMAGE
• Automatically size and center the input to fill the screen
Timeout
PICTURE CONTROLS
• Position • Brightness
• Size • Contrast
Timeout
USER PRESETS
• Save presets • Clear presets
Timeout
OUTPUT
CONFIGURATION
• Resolution • Rate
ADVANCED
Timeout
CONFIGURATION
• Test pattern • Aspect ratio
• Blank • Auto memory
• Freeze • Reset
Menu System Flowchart
• If you press the Menu button while a submenu is active, the on-screen display
backs up to display the main menu from which that submenu was selected.
•
From any menu or submenu, after a user-selectable period of inactivity, the
scaler saves all adjustment settings and deactivates the on-screen display.
•
The Adjust knobs have no mechanical limits to their rotation.
FOXBOX SR HDMI
• Detail filter
• Recall presets
• HDMI format
• Menu timeout
FOXBOX SR HDMI • Operation 14
