Audio output connector
See figure 9 to properly wire a captive screw output connector. The connector is included
with the receiver, but you must supply the audio cable. Use the supplied tie-wrap to strap
the audio cable to the extended tail of the connector.
NO GROUND HERE
Tip
Sleeves
Tip
Do not tin the wires!
NO GROUND HERE
Unbalanced Stereo Output

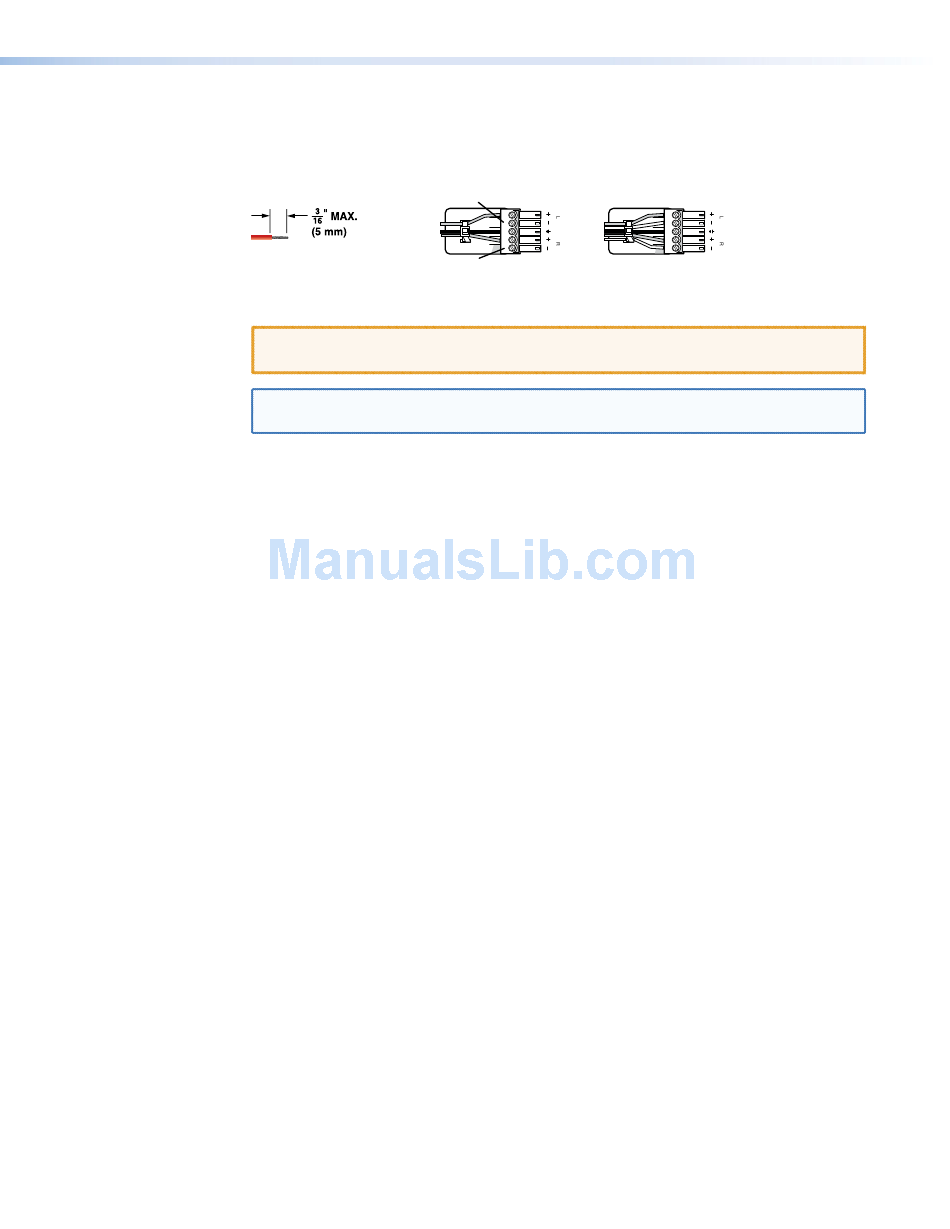

Figure 9. Captive Screw Connector Wiring for Stereo Audio Output
ATTENTION: For unbalanced audio, connect the sleeves to the ground contact.
DO NOT connect the sleeves to the negative (-) contacts.
NOTE: The length of exposed wires is critical (see the RS-232 connector
page 8 for more information.)
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Output
NOTE
FOXBOX SR HDMI • Installation
