Channel 1 Channel 2
in in
DJ Mixer

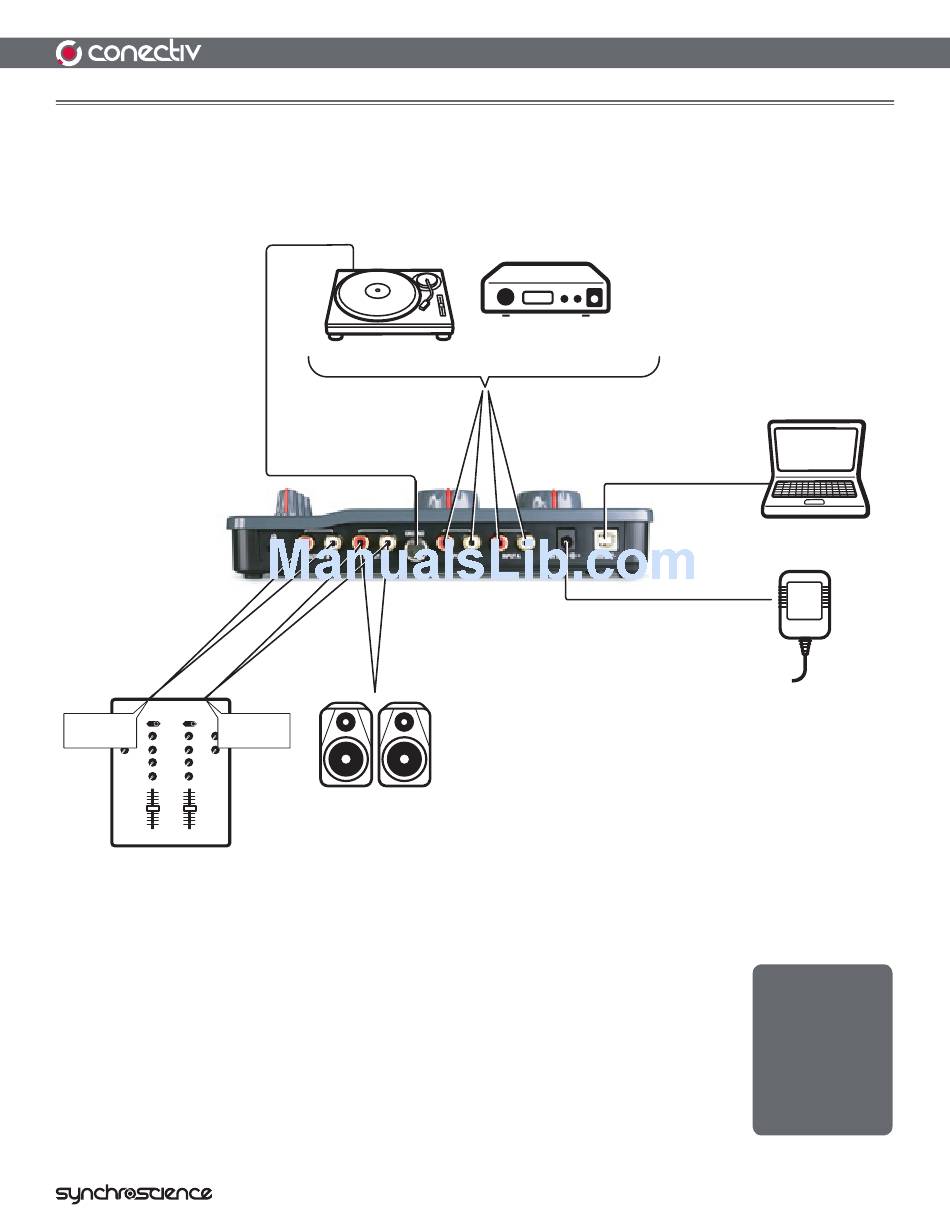

1. Connect Conectiv's RCA Outputs to your amplifier, powered monitors, or mixer.
2. Connect your stereo headphones to Conectiv's front-panel Phones output.
3. Connect a microphone to the 1/4" Microphone input on the front panel of the interface.
4. Connect your turntables or line-level sources to Conectiv's RCA inputs.
5. Connect Conectiv's USB port to an available USB port on your Mac or PC computer with
a USB cable.
6. If your computer cannot supply sufficient USB bus power, or if you are using Conectiv in
standalone mode (without a computer), connect a DC power adapter to the Power jack
(13) on the rear of the interface. Conectiv requires a center-positive 9V DC 500 mA power
supply.
ground
Turntable
Powered
Speakers
or PA

Hardware Connections

CD Player /
Line Level Sources
7
USB
Computer
Power Supply
(optional)
If you are using
turntables, be
sure to connect
each turntable's
ground wire to
the grounding
connector (12)
on the rear of the
interface.
