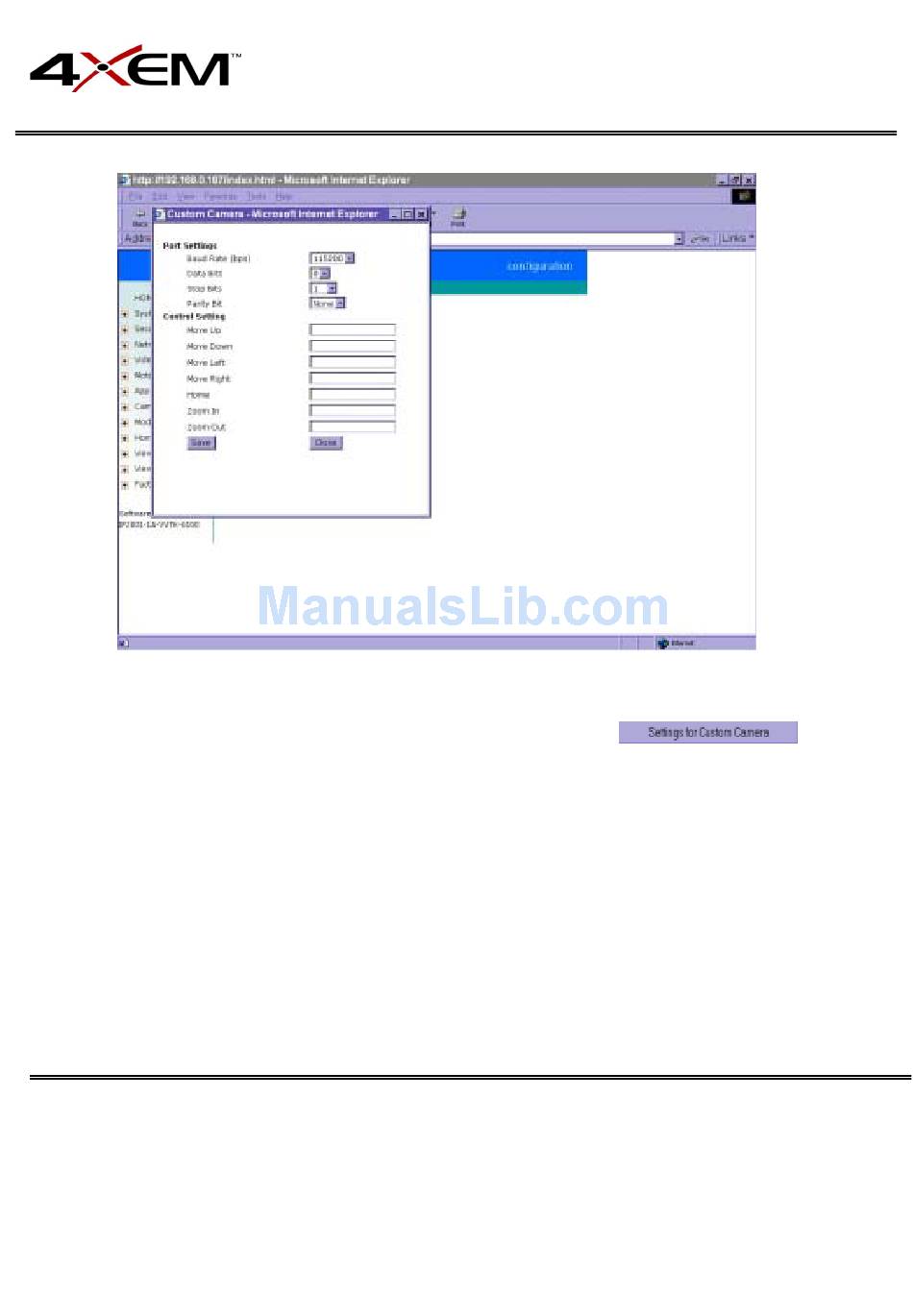

If the attached motorized camera is not on the support driver list, choose the proper UAR T interface and
pull down the driver list to select Custom Camera type and click on for further
configuration.
Setup the serial "Port Se ttings" according to the instruction manual of the custom camera. T he "Baud
Rate (bps)" of the serial port is up to 115200 bps. Then enter the specific command related to PTZ in the
respective field. T he custom command for "Control Se tting" should be edited in ASCII format. Video
Server will interpret the ASCII format command to binary string. For instance, "012000ABCD" will be
sent out of the COM port as five hexadecimal bytes of 01, 20, 00, AB and CD. If the command string is
composed of two or more commands, a comma ',' should be inserted to separate each command. Each
comma represents 200 milliseconds. For instance, a command to pan left may be "01000305" and a
command to stop panning may be " 01000300". The user may edit the applicable command as
"01000305,01000300" in the Move Left field. This means the camera will pan left for 200 milliseconds.
