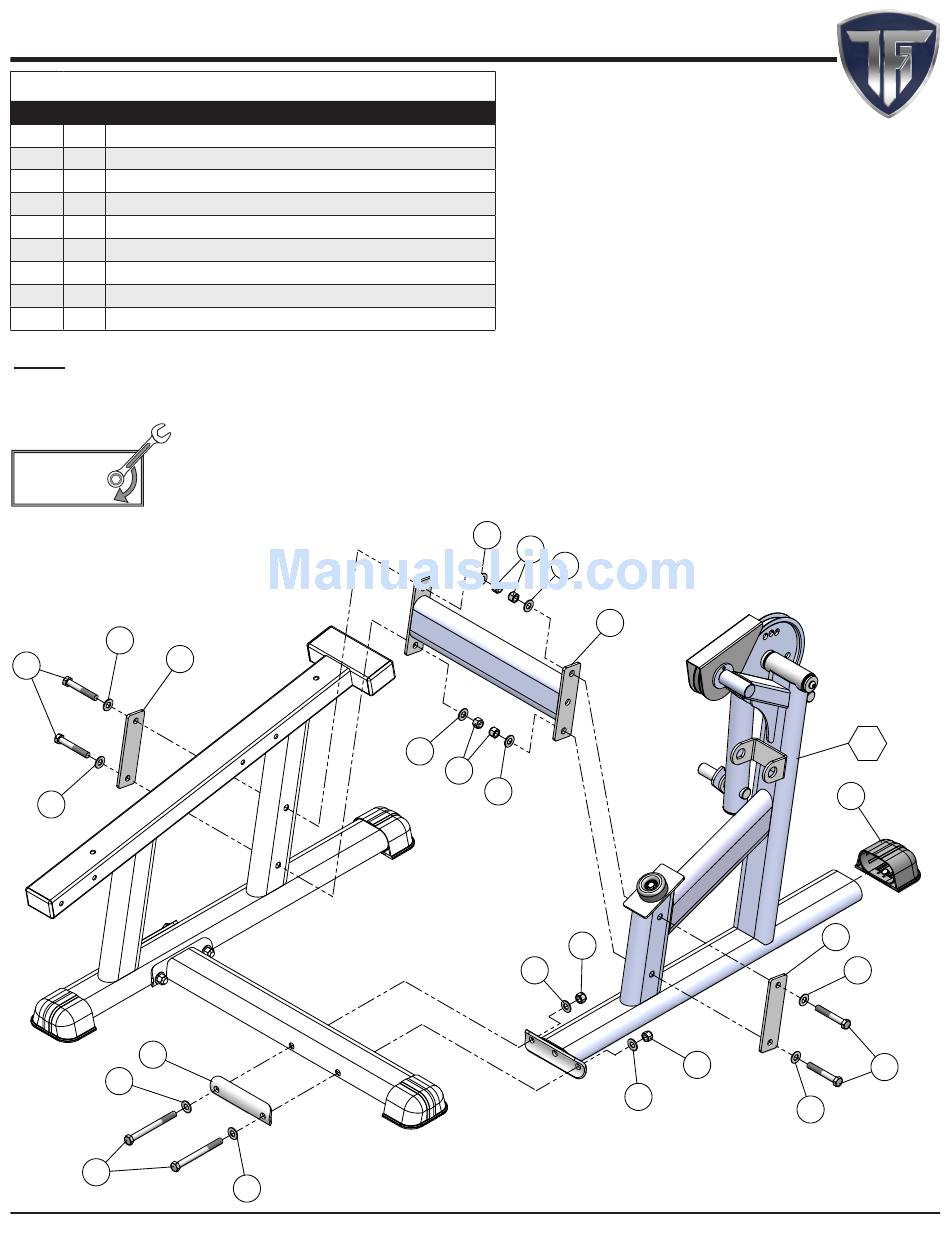

Step 2
Step 2
Item
Qty. Description
3
1
TOP CROSS BRACE
10
1
REINFORCEMENT PLATE 1/4 X 2 X 7 (BEND)
11
2
REINFORCEMENT PLATE 1/4 X 2 X 7
18
1
PLASTIC HORIZONTAL ELLIPTICAL SHOE W/LOCK
25
4
HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 3 1/4
26
2
HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 5 1/4
28
6
NYLON INSERT LOCK NUT Z/P 1/2-13
30
12
FLAT WASHER SAE Z/P 1/2"
*2
1
SIDE FRAME ASSEMBLY
Note:
It is strongly recommended that two
people participate in this assembly step.
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
30
11
25
30
10
30
26
www.tuffstuffitness.com
12
Assembly List
30
30
28
30
30
28
30
28
30
CPL-400
Plate Load Leg Extension/Prone Leg Curl Bench
3
28
30
*2
18
11
30
25
30
