TuffStuff CPL-400 Owner's Manual page 11

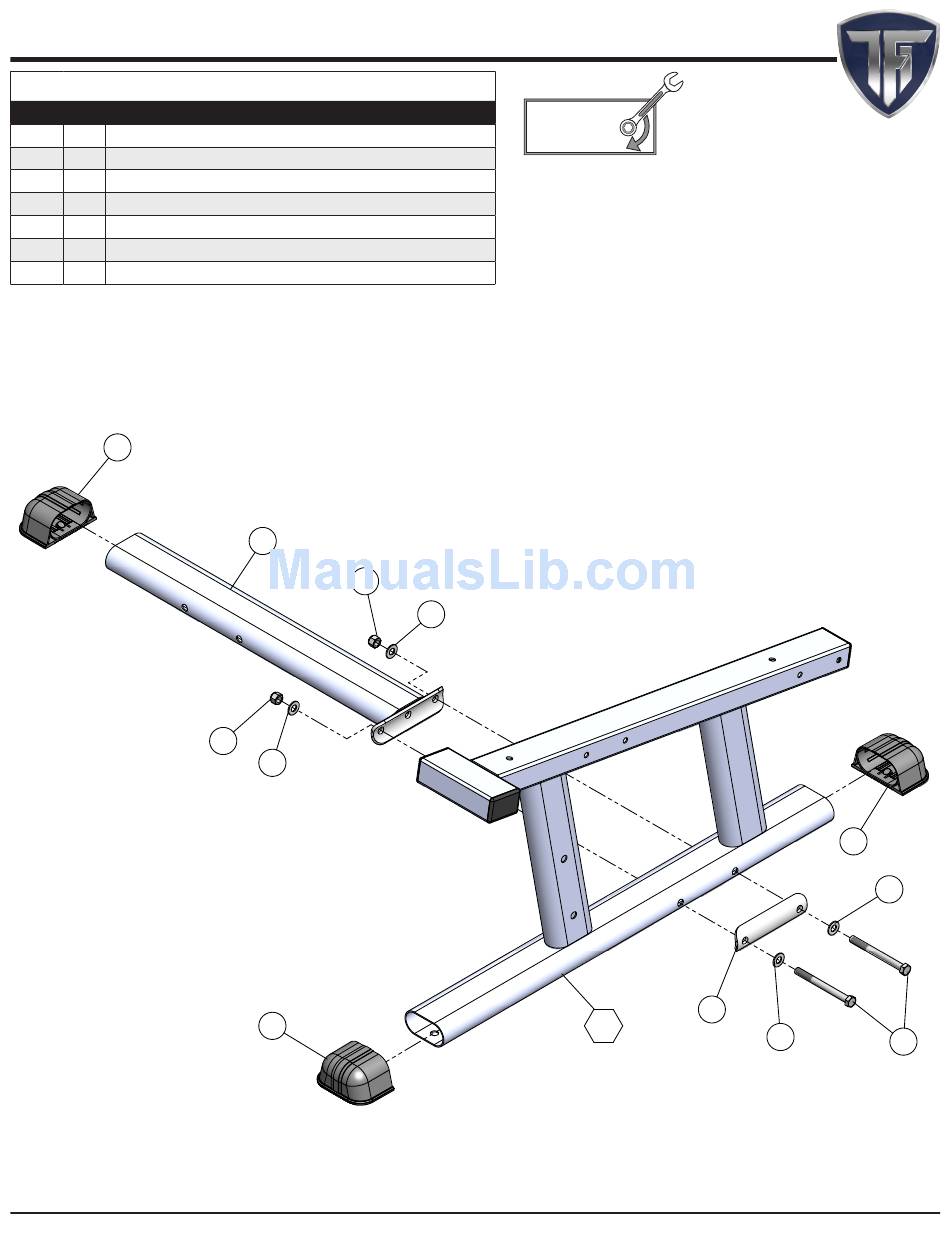

Step 1
Step 1
Item Qty. Description
10 1 REINFORCEMENT PLATE 1/4 X 2 X 7 (BEND)
14 1 REAR CROSS BRACE
18 3 PLASTIC HORIZONTAL ELLIPTICAL SHOE W/LOCK
26 2 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 5 1/4
28 2 NYLON INSERT LOCK NUT Z/P 1/2-13
30 4 FLAT WASHER SAE Z/P 1/2"
*1 1 BECH FRAME ASSEMBLY
18
CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench
Assembly List
14
28
28
30
18
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
