NOTICE
It is the Purchaser's/Owner's obligation:
1. To disclose and post all Rules & Regulations, Danger, Warning and Caution
labels affi xed on the machine to their customers/users.
2. Equipment to be installed by TFI Authorized Dealer or a service
company approved by TFI.
3. Provide trained personnel, supervision and correct usage of the equipment.
4. Provide scheduled inspection, maintenance & repairs and must be performed
by TFI Authorized Dealer or a service company approved by TFI.
5. Must use only genuine TFI replacement parts.
6.
Machine must be anchored to a solid and level surface.
TUFFSTUFF FITNESS INTERNATIONAL
OWNER'S MANUAL
OWNER'S MANUAL
Maintenance & Assembly Instructions
IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE
CG-9514

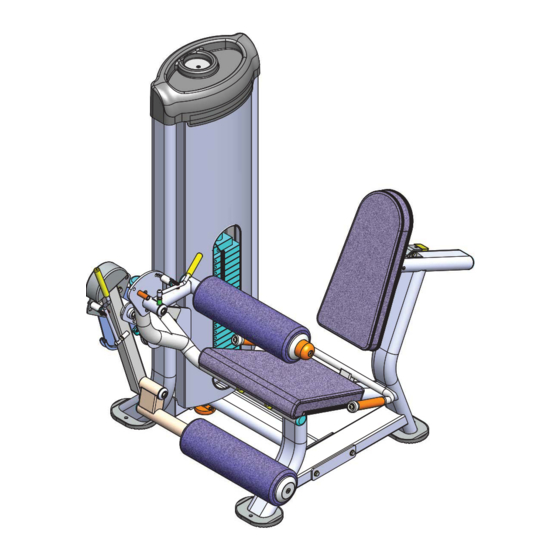

Leg Extension/Curl
CG-9514 Rev0
Revision Date 10-30-2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TuffStuff CG-9514
Summary of Contents for TuffStuff CG-9514
- Page 1 TUFFSTUFF FITNESS INTERNATIONAL OWNER’S MANUAL OWNER’S MANUAL Maintenance & Assembly Instructions IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE NOTICE CG-9514 It is the Purchaser’s/Owner’s obligation: 1. To disclose and post all Rules & Regulations, Danger, Warning and Caution Leg Extension/Curl labels affi xed on the machine to their customers/users.
-
Page 2: Table Of Contents
Should additional information be required, or should situations arise that are not covered by this owner’s manual, the matter should be directed to Customer Service at Tuff Stuff Fitness International Inc. in Chino, California. www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... -
Page 3: Overhead Specifi Cations
Overhead Specifi cations L 67” X W 45” X H 59” MAX-LOAD WEIGHT LIMIT -200 lbs. CG-9514 Leg Extension/Curl www.tuff stuffi tness.com... -
Page 4: Danger, Warning, & Caution Labels Information
Carefully read ALL Danger, Warning & Caution labels posted on the machine WARNING Keep body, hands and fingers clear of all moving parts. BNH2926 www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... - Page 5 Carefully read ALL Danger, Warning & Caution labels posted on the machine CG-9514 Leg Extension/Curl www.tuff stuffi tness.com...
- Page 6 Carefully read ALL Danger, Warning & Caution labels posted on the machine www.tuff stuffi tness.com CG-9514 Leg Extension/Curl...
- Page 7 Facility Sign with your order, you can obtain one at no cost to you from Tuff Stuff Fitness by contacting our service department at: 1 (888) 884-8275 service@tuff stuff .net service1@tuff stuff .net CG-9514 Leg Extension/Curl www.tuff stuffi tness.com...
-
Page 8: Anchoring Unit
Anchoring Unit Holes on frame are provided for anchoring the unit to the fl oor. See anchoring hole location below. www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... -
Page 9: Important Safety Instructions
CAUTION: indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. CG-9514 Leg Extension/Curl www.tuff stuffi tness.com... -
Page 10: Registration, Service & Assembly
Fully Tighten Fully Tighten Set up the CG-9514 on a clean, solid, fl at surface. A smooth, fl at surface Wrench tighten all hardware in this step. under the machine helps keep it level. 100% www.tuff stuffi tness.com... -
Page 11: Inspection/Maintenance
Professional Service Company approved by TFI. Keep a service log of all maintenance and repair activities. Extra copies can be downloaded from our website www.tuff stuffi tness.com INSPECTION / MAINTENANCE RECORDS DATE REPLACEMENT REPAIRS INSPECTED BY WARRANTY REPAIRS DATE REPLACEMENT REPAIRS INSPECTED BY CG-9514 Leg Extension/Curl www.tuff stuffi tness.com... -
Page 12: Cable Inspection
A BREAK ON THE CABLE CABLE END SLIPPING OUT IMPORTANT NOTE: DAMAGED OR WORN CABLE (AS SHOWN ABOVE) MAY DAMAGE THE PULLEY(S). YOU MUST INSPECT THE PULLEYS AT THIS TIME FOR WEAR AND TEAR. REPLACE IF NEEDED. www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... -
Page 13: Step 1
HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 5 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 U-SHAPE WASHER 3/8 ID X 1 1/2 OD X 3/16 THICK Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. CG-9514 Leg Extension/Curl www.tuff stuffi tness.com... -
Page 14: Step
ALUMINUM ROUND AXLE END CAP, 1 3/4 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 1/4 SPLIT LOCK WASHER Z/P 3/8” Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... -
Page 15: Step 3
FLAT WASHER SAE Z/P 3/8” HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. CG-9514 Leg Extension/Curl www.tuff stuffi tness.com... -
Page 16: Step 4
Step 4 Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... - Page 17 8. Open the lube package provided and apply a thin fi lm of lubricant around the fi rst 3 inches of the guide rods above the top plate. 9. After the cables are installed, do a set of reps to spread the lubricant thoroughly. CG-9514 Leg Extension/Curl www.tuff stuffi tness.com...
-
Page 18: Step 5 Cable Routing
Step 5 Cable Routing www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... - Page 19 NYLON INSERT LOCK NUT Z/P 5/16-18 SHOULDER BOLT Z/P 3/8 X 3/4 SPLIT BOLT GR-8 Z/P 1/2-13 X 3 1/2 (RND CUT) SPLIT LOCK WASHER Z/P 1/2” Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. CG-9514 Leg Extension/Curl www.tuff stuffi tness.com...
-
Page 20: Step
Step 6 www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... - Page 21 Item # Description Qty. WEIGHT SHIELD FRONT WEIGHT SHIELD REAR FLAT HEAD SOCKET CAP SCREW Z/P M6-1.0 X 50 PLASTIC SHROUD LID Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. CG-9514 Leg Extension/Curl www.tuff stuffi tness.com...
-
Page 22: Step
FLAT WASHER SAE Z/P 3/8” HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 1/4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... -
Page 23: Step 8
FOAM ROLL 2 X 5 1/2 X 18 1/2 ALUMINUM CAP WASHER 2 1/2” ALUMINUM FOOT ROLL CAP 2” ID FLAT HEAD SOCKET CAP SCREW Z/P 3/8-16 X 1 RUBBER HANDLE BUTTON HEAD SOCKET CAP SCREW Z/P 3/8-16 X 2 1/2 CG-9514 Leg Extension/Curl www.tuff stuffi tness.com... -
Page 24: Parts List
PUSH PULL PIN ASSY 1/2 X 3 1/8 BNH2037 BNH3710 LEVELER BNH3662 HEX KEY ALLOY 5/32 BNH0373 FLAT HEAD SOCKET CAP SCREW Z/P M6 1.0 X 50 FACILITY SIGN BE ALERT! THE FITNESS EQUIPMENT BNH3705 BNH3138 www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... - Page 25 ADJUSTABLE LEG HOLDER UP8838X1 SWIVEL FOAM ROLL TUBE UP8854X1 UP8842X1 TOP CROSS BRACE UP8855X1 WEIGHT SHIELD FRONT HANDLES UP8845X1 UP8468X1 PIVOT ARM UP8850X1 WEIGHT STACK FRAME UP8856X1 SEAT FRAME UP8851X1 PLASTIC SHROUD LID BNH3393X1 CG-9514 Leg Extension/Curl www.tuff stuffi tness.com...
-
Page 26: Pre-Assembled Components
Pre-Assembled Components *26 UP8856X1 *15 UP8850X1 *69 BNH3393X1 *6 UP8842X1 *11 UP8845X1 www.tuff stuffi tness.com CG-9514 Leg Extension/Curl... - Page 27 Pre-Assembled Components *18 UP8851X1 *24 UP8468X1 *22 UP8854X1 *23 UP8855X1 *2 UP8838X1 CG-9514 Leg Extension/Curl www.tuff stuffi tness.com...
