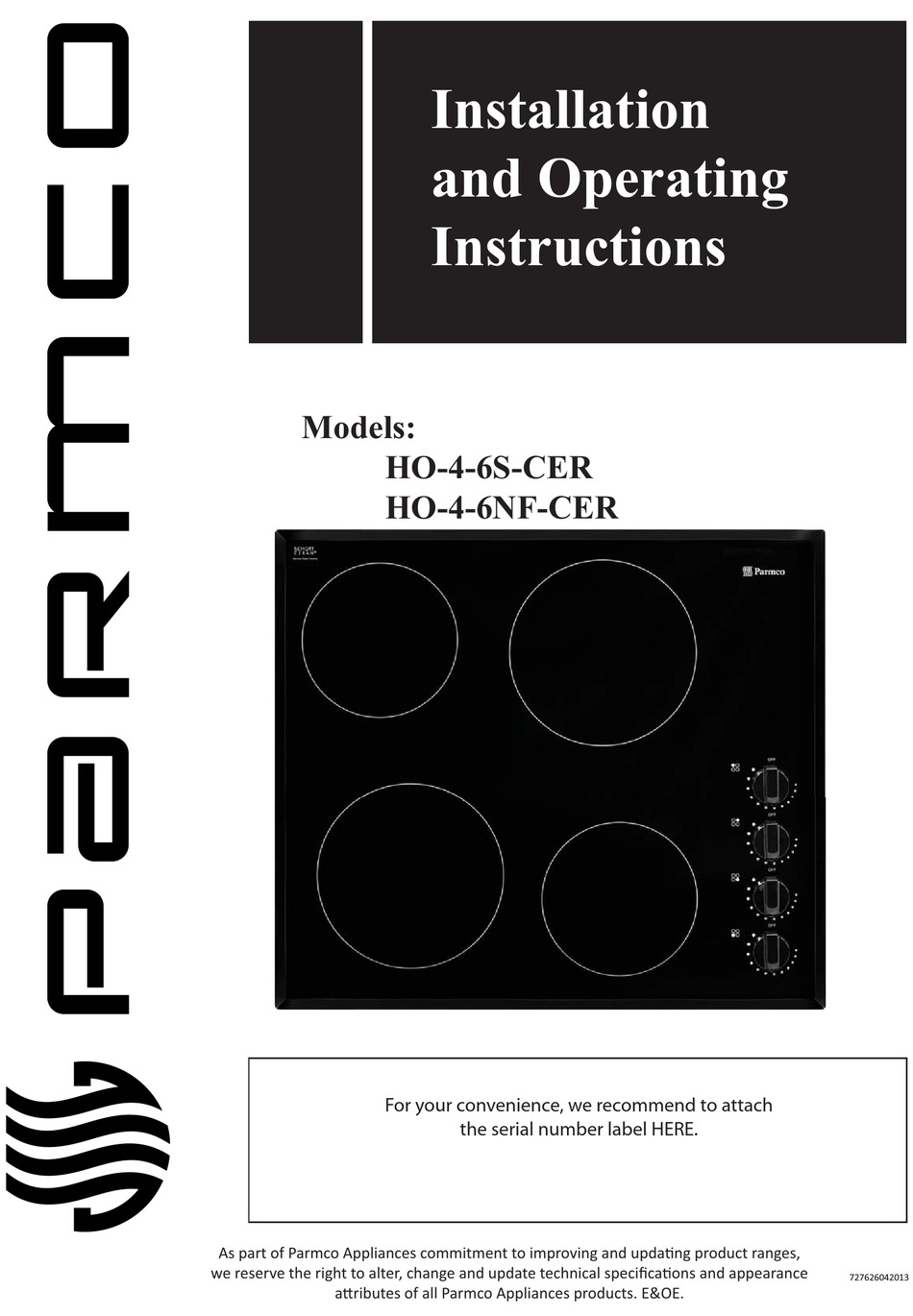

- Page 1 Installation and Operating Instructions Models: HO-4-6S-CER HO-4-6NF-CER For your convenience, we recommend to attach the serial number label HERE. 727626042013 K ...
- Page 2 Parmco Appliances before any installation is carried out. We hope you enjoy your new appliance. If you would like to find out more about this product or any other products in Parmco’s extensive range, visit us on the web at www.parmco.co.nz. Regards,...
-
Page 3: Safety Warnings
11. Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they will get hot. 12. If the surface is cracked, switch off the appliance and contact Parmco Appliances. To avoid the possibility of electric shock do not continue to use a damaged hob. -
Page 4: Product Introduction
Its stylish controls and sleek design give something more to those who require exceptional kitchen appliances. As always, when buying a Parmco product, quality and peace of mind are as important as the product itself. If you would like more information or require detailed product specifications, please visit Parmco’s website at... -
Page 5: Installation
Safety Excessive Heat Protection Sensors mounted in the hob itself monitor the temperature on each hotplate. Should excessive heat occur under any circumstances, your ceramic hob will automatically disconnect the elements and cease the power supply. Residual Heat Indicators After using the hob, residual heat remains for some time while the hob cools. - Page 6 Make sure the hob is well ventilated and that there are no obstructions between the hob and the ventilation system. Upon installation, inspect your hob to ensure it is in good working state. mini 650 mm mini 5cm mini 2cm Air intake Figure (2) Note: The safety distance between the ceramic hob and the ventilation...
- Page 7 Cautions Do not attempt to install this hob yourself. This hob is only to be installed by a qualified technician. Do not install this hob near or on cooling appliances such as dishwashers or dryers. All areas exposed directly to the hob during its operation must be made of heat resistant materials to avoid damage.
- Page 8 Power Line Connection The socket should be connected according to the relevant standards or connected to a single-pole cut-out. 30AMP minimum supply. The method of connection is shown in Figure (3): 220-240V 220-240V 220-240V connect to the main power supply connect to the main power supply 220-240V~ 220-240V 2+2N~...
- Page 9 The Ceramic Cooker Hob Appearance Power cord Ceramic glass Knob Schematic Diagram of the Control Panel Residual heat Knob indicator light...
-
Page 10: Safety And Maintenance
Instructions for Use Put the pot in the centre of the heating zone. Operation Instructions: After the power supply is connected, put the pot on the centre of the ceramic plate. Turn the knob clockwise or anticlockwise to turn on the hob. Residual heat indicator lights: When the glass plate is still hot after it has been turned off, the residual heat indicator lights will light up. - Page 11 Do not heat sealed foods such as Metallic objects such as knives, forks, If the power supply cord is damaged, canned goods before opening their spoons and lids should not be placed it must be replaced by a service agent covers to avoid dangers of explosion.
-
Page 12: Cleaning Methods
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 2. -
Page 13: Warranty
• If proof of date of purchase is not supplied, except at the sole discretion of Parmco Sales. Proof of purchase can be for the product itself, or if installed • This warranty is offered as an extra benefit, and does with a kitchen or house then proof of purchase can be from a Parmco not affect other legal rights, which can not be modified or...
