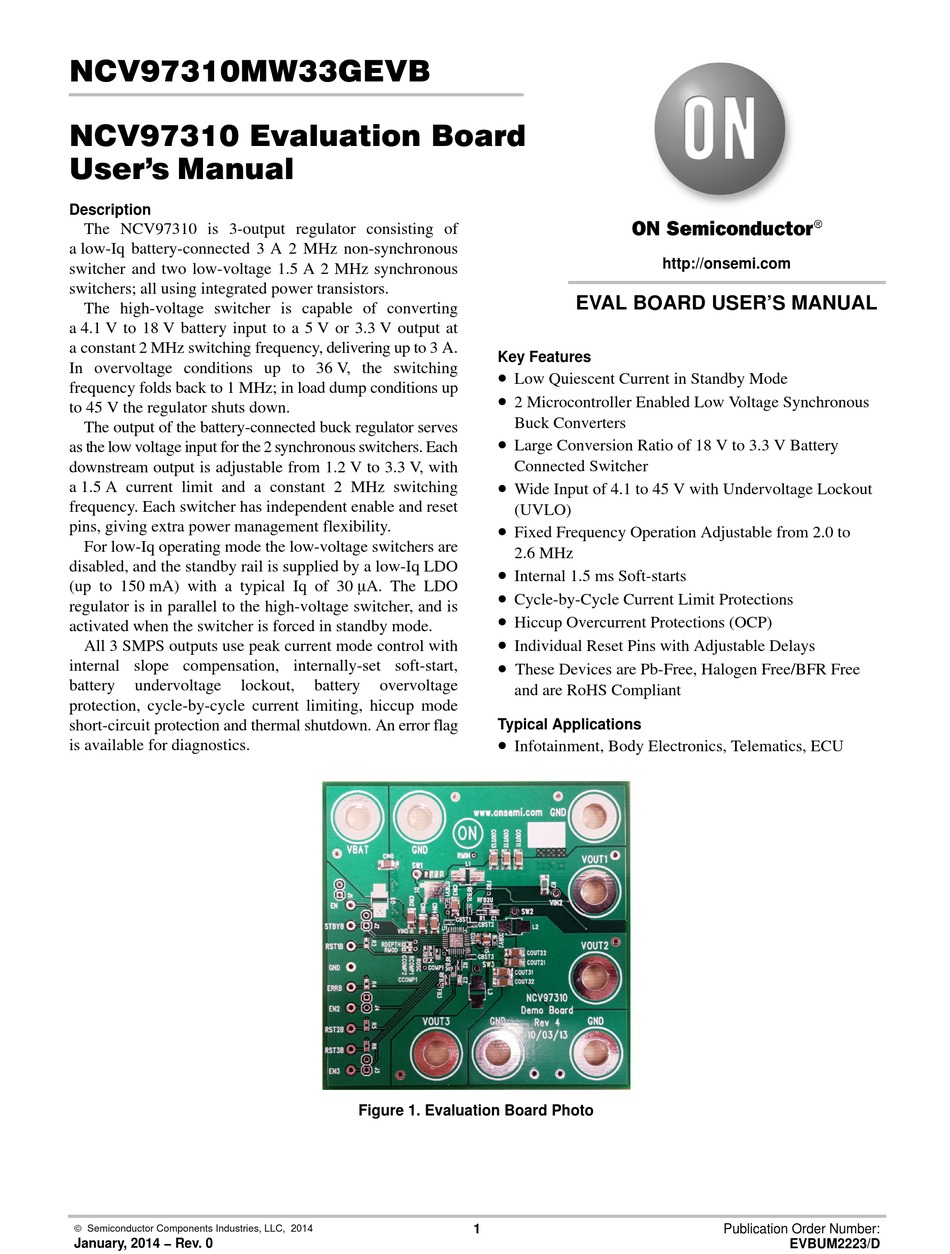

NCV97310MW33GEVB
NCV97310 Evaluation Board
User's Manual
Description
The NCV97310 is 3-output regulator consisting of
a low-Iq battery-connected 3 A 2 MHz non-synchronous
switcher and two low-voltage 1.5 A 2 MHz synchronous
switchers; all using integrated power transistors.
The high-voltage switcher is capable of converting
a 4.1 V to 18 V battery input to a 5 V or 3.3 V output at
a constant 2 MHz switching frequency, delivering up to 3 A.
In overvoltage conditions up to 36 V, the switching
frequency folds back to 1 MHz; in load dump conditions up
to 45 V the regulator shuts down.
The output of the battery-connected buck regulator serves
as the low voltage input for the 2 synchronous switchers. Each
downstream output is adjustable from 1.2 V to 3.3 V, with
a 1.5 A current limit and a constant 2 MHz switching
frequency. Each switcher has independent enable and reset
pins, giving extra power management flexibility.
For low-Iq operating mode the low-voltage switchers are
disabled, and the standby rail is supplied by a low-Iq LDO
(up to 150 mA) with a typical Iq of 30 mA. The LDO
regulator is in parallel to the high-voltage switcher, and is
activated when the switcher is forced in standby mode.
All 3 SMPS outputs use peak current mode control with
internal slope compensation, internally-set soft-start,
battery
undervoltage
lockout,
protection, cycle-by-cycle current limiting, hiccup mode
short-circuit protection and thermal shutdown. An error flag
is available for diagnostics.
© Semiconductor Components Industries, LLC, 2014
January, 2014 − Rev. 0
battery
overvoltage
Figure 1. Evaluation Board Photo
1
http://onsemi.com
EVAL BOARD USER'S MANUAL
Key Features
Low Quiescent Current in Standby Mode
2 Microcontroller Enabled Low Voltage Synchronous
Buck Converters
Large Conversion Ratio of 18 V to 3.3 V Battery
Connected Switcher
Wide Input of 4.1 to 45 V with Undervoltage Lockout
(UVLO)
Fixed Frequency Operation Adjustable from 2.0 to
2.6 MHz
Internal 1.5 ms Soft-starts
Cycle-by-Cycle Current Limit Protections
Hiccup Overcurrent Protections (OCP)
Individual Reset Pins with Adjustable Delays
These Devices are Pb-Free, Halogen Free/BFR Free
and are RoHS Compliant
Typical Applications
Infotainment, Body Electronics, Telematics, ECU
Publication Order Number:
EVBUM2223/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCV97310MW33GEVB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ON Semiconductor NCV97310MW33GEVB

  • Page 1 NCV97310MW33GEVB NCV97310 Evaluation Board User's Manual Description The NCV97310 is 3-output regulator consisting of a low-Iq battery-connected 3 A 2 MHz non-synchronous http://onsemi.com switcher and two low-voltage 1.5 A 2 MHz synchronous switchers; all using integrated power transistors. EVAL BOARD USER’S MANUAL The high-voltage switcher is capable of converting a 4.1 V to 18 V battery input to a 5 V or 3.3 V output at...
  • Page 2 NCV97310MW33GEVB VDRV VDRV1 STBYB BST1 REGULATOR 1 VBAT STEP DOWN COMP1 VINL LOGIC RSTB RSTB1 RMIN LINEAR VOUT REGULATOR Master Enable GND1 VDRV VDRV 2 BST 2 REGULATOR 2 VIN2 1V2 ... 3V 3 STEP DOWN FB 2 RSTB RSTB2...
  • Page 3: Typical Application

    NCV97310MW33GEVB TYPICAL APPLICATION OUT1 OUT1 BST1 FB2D DRV1 BST2 FB2U OUT2 OUT2 SW 1 VDRV 1 BST1 VINL VOUT RMIN BST2 VBAT GND 2 SW 2 STBYB VIN2 RDEPTH VIN3 DEPTH RMOD VDRV 2 DRV2 RSTB1 SW 3H COMP1 COMP 1...
  • Page 4: Current Limit

    NCV97310MW33GEVB Table 2. ABSOLUTE MAXIMUM RATINGS (Voltages are with respect to GND) Rating Value Unit Dc Supply Voltage (VBAT, EN, STBYB) −0.3 to 36 Dc Supply Voltage (VIN2, VIN3) −0.3 to 12 Dc Supply Voltage (RSTB1, RSTB2, −0.3 to 6 RSTB3, ERRB, EN2, EN3) °C...
  • Page 5 NCV97310MW33GEVB Figure 4. NCV97310GEVB 3.3 V Board Schematic http://onsemi.com...
  • Page 6 NCV97310MW33GEVB Operational Guidelines 1. Connect a dc input voltage, within the 6.0 V to 5. Connect a dc enable voltage, within the 2.0 V to 6 V range, between EN2 and GND. This will 36 V range, between VBAT and GND.
  • Page 7: Application Information

    NCV97310MW33GEVB APPLICATION INFORMATION Output Voltage Selection The voltage outputs for switcher 2 and switcher 3 are Time Domain Frequency Domain adjustable and can be set with a resistor divider. The FB reference for both switchers is 1.2 V. Unmodulated VOUT 2 (VOUT 3) UPPER FBx = 1.2 V...
  • Page 8: Typical Performance

    NCV97310MW33GEVB The modulation depth and modulation frequency are each Modulation Depth vs. RDEPTH set by 2 external resistors to GND. The modulation 30.0% frequency can be set from 5 kHz up to 50 kHz using a resistor from the RMOD pin to GND. The modulation 25.0%...
  • Page 9 NCV97310MW33GEVB NCV97310 − SW2 Efficiency − 1.8 V 100% VIN = 3.3 V VIN = 5.0 V VIN = 8.0 V Output Current (A) Figure 7. Efficiency for SW2 with a 1.8 V Output NCV97310 − SW3 Efficiency − 1.2 V 100% VIN = 3.3 V...
  • Page 10 NCV97310MW33GEVB Line Regulation NCV97310 − SW1 − 3.3 V − Line Regulation 2.00% 1.50% 1.00% 0.50% 0.00% −0.50% IOUT = 100 mA −1.00% IOUT = 500 mA IOUT = 1.0 A IOUT = 2.0 A −1.50% IOUT = 3.0 A −2.00%...
  • Page 11 NCV97310MW33GEVB NCV97310 − SW3 − 1.2 V − Line Regulation 0.10% 0.05% 0.00% IOUT = 100 mA −0.05% IOUT = 500 mA IOUT = 1.0 A IOUT = 2.0 A −0.10% Input Voltage (V) Figure 11. Line Regulation for SW3 with a 1.2 V Output Load Regulation NCV97310 −...
  • Page 12 NCV97310MW33GEVB NCV97310 − SW2 Load Regulation − 1.8 V 0.10% VIN = 3.3 V VIN = 5.0 V VIN = 8.0 V 0.05% 0.00% −0.05% −0.10% Output Current (A) Figure 13. Load Regulation for SW2 with a 1.8 V Output NCV97310 −...
  • Page 13 NCV97310MW33GEVB SCHEMATIC http://onsemi.com...
  • Page 14: Pcb Layout

    NCV97310MW33GEVB PCB LAYOUT Figure 15. Top View Figure 16. Bottom View http://onsemi.com...
  • Page 15: Bill Of Materials

    NCV97310MW33GEVB BILL OF MATERIALS Table 4. BILL OF MATERIALS Substi- Reference Manufacturer’s tution Qty. Description Value Tolerance Footprint Manufacturer Designator(s) Part Number Allowed C1, C2, CSNB2, CAP CER 100 pF Murata Electronics GCM1885C1H101JA16D CSNB3 100 pF 50 V 5% North America NP0 0603 0.1 mF...
  • Page 16 PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: N. American Technical Support: 800−282−9855 Toll Free ON Semiconductor Website: www.onsemi.com Literature Distribution Center for ON Semiconductor USA/Canada Order Literature: http://www.onsemi.com/orderlit P.O. Box 5163, Denver, Colorado 80217 USA Europe, Middle East and Africa Technical Support: Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada...
