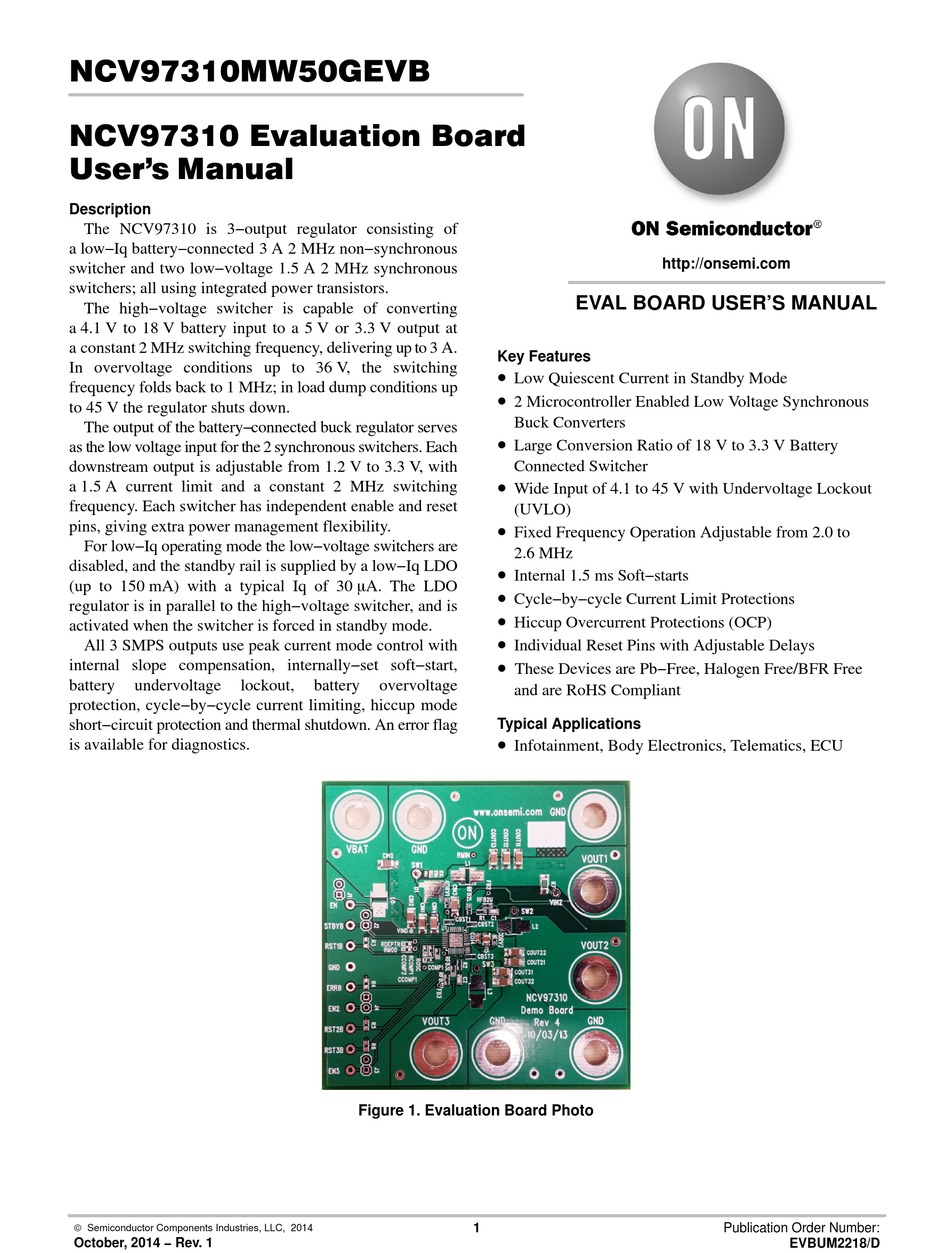

NCV97310MW50GEVB
NCV97310 Evaluation Board
User's Manual
Description
The NCV97310 is 3−output regulator consisting of
a low−Iq battery−connected 3 A 2 MHz non−synchronous
switcher and two low−voltage 1.5 A 2 MHz synchronous
switchers; all using integrated power transistors.
The high−voltage switcher is capable of converting
a 4.1 V to 18 V battery input to a 5 V or 3.3 V output at
a constant 2 MHz switching frequency, delivering up to 3 A.
In overvoltage conditions up to 36 V, the switching
frequency folds back to 1 MHz; in load dump conditions up
to 45 V the regulator shuts down.
The output of the battery−connected buck regulator serves
as the low voltage input for the 2 synchronous switchers. Each
downstream output is adjustable from 1.2 V to 3.3 V, with
a 1.5 A current limit and a constant 2 MHz switching
frequency. Each switcher has independent enable and reset
pins, giving extra power management flexibility.
For low−Iq operating mode the low−voltage switchers are
disabled, and the standby rail is supplied by a low−Iq LDO
(up to 150 mA) with a typical Iq of 30 mA. The LDO
regulator is in parallel to the high−voltage switcher, and is
activated when the switcher is forced in standby mode.
All 3 SMPS outputs use peak current mode control with
internal slope compensation, internally−set soft−start,
battery
undervoltage
lockout,
protection, cycle−by−cycle current limiting, hiccup mode
short−circuit protection and thermal shutdown. An error flag
is available for diagnostics.
© Semiconductor Components Industries, LLC, 2014
October, 2014 − Rev. 1
battery
overvoltage
Figure 1. Evaluation Board Photo
1
http://onsemi.com
EVAL BOARD USER'S MANUAL
Key Features
Low Quiescent Current in Standby Mode
2 Microcontroller Enabled Low Voltage Synchronous
Buck Converters
Large Conversion Ratio of 18 V to 3.3 V Battery
Connected Switcher
Wide Input of 4.1 to 45 V with Undervoltage Lockout
(UVLO)
Fixed Frequency Operation Adjustable from 2.0 to
2.6 MHz
Internal 1.5 ms Soft−starts
Cycle−by−cycle Current Limit Protections
Hiccup Overcurrent Protections (OCP)
Individual Reset Pins with Adjustable Delays
These Devices are Pb−Free, Halogen Free/BFR Free
and are RoHS Compliant
Typical Applications
Infotainment, Body Electronics, Telematics, ECU
Publication Order Number:
EVBUM2218/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCV97310 and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor NCV97310

  • Page 1 NCV97310MW50GEVB NCV97310 Evaluation Board User's Manual Description The NCV97310 is 3−output regulator consisting of a low−Iq battery−connected 3 A 2 MHz non−synchronous http://onsemi.com switcher and two low−voltage 1.5 A 2 MHz synchronous switchers; all using integrated power transistors. EVAL BOARD USER’S MANUAL The high−voltage switcher is capable of converting...
  • Page 2 STEP DOWN FB 2 RSTB RSTB2 GND2 BST 3 REGULATOR 3 VIN3 1V 2...3V3 SW3H STEP DOWN SW3L RSTB RSTB3 GND3 TEMP ROSC WARNING VIN _UVLO VIN _OV RMOD RSTB1 RDEPTH RSTB2 ERRB RSTB3 Figure 2. NCV97310 Block Diagram http://onsemi.com...
  • Page 3: Typical Application

    NCV97310MW50GEVB TYPICAL APPLICATION OUT1 OUT1 BST1 FB2D DRV1 BST2 FB2U OUT2 OUT2 SW 1 VDRV 1 BST1 VINL VOUT RMIN BST2 VBAT GND 2 SW 2 STBYB VIN2 RDEPTH VIN3 DEPTH RMOD VDRV 2 DRV2 RSTB1 SW 3H COMP1 COMP 1 SW3L COMP1 OUT3...
  • Page 4: Current Limit

    NCV97310MW50GEVB Table 2. ABSOLUTE MAXIMUM RATINGS (Voltages are with respect to GND) Rating Value Unit Dc Supply Voltage (VBAT, EN, STBYB) −0.3 to 36 Dc Supply Voltage (VIN2, VIN3) −0.3 to 12 Dc Supply Voltage (RSTB1, RSTB2, −0.3 to 6 RSTB3, ERRB, EN2, EN3) °C Storage Temperature Range...
  • Page 5 NCV97310MW50GEVB Figure 4. NCV97310GEVB 5.0 V Board Schematic http://onsemi.com...
  • Page 6 Iq mode and power up switcher 1. You may use jumper J2 to connect STBYB directly to VBAT. The VOUT1 signal should still be 5.0 V. You may now add a higher load to VOUT1. Figure 5. NCV97310 Board Connections http://onsemi.com...
  • Page 7: Application Information

    UPPER FBx = 1 . 2 V LOWER The spread spectrum used in the NCV97310 is an “up−spread” technique, meaning the switching frequency is The upper resistor is set to 10 kW and is part of the spread upward from the 2.0 MHz base frequency. For feedback loop.
  • Page 8: Typical Performance

    RDEPTH pin. Please be sure that the ROSC pin is an open circuit when using spread spectrum. TYPICAL PERFORMANCE Efficiency NCV97310 − SW1 Efficiency − 5.0 V VIN = 8.0 V VIN = 13.2 V VIN = 18.0 V Figure 6.
  • Page 9 NCV97310MW50GEVB NCV97310 − SW2 Efficiency − 3.3 V 100% VIN = 5.0 V VIN = 8.0 V Output Current (A) Figure 7. Efficiency for SW2 with a 3.3 V Output NCV97310 − SW3 Efficiency − 1.2 V 100% VIN = 3.3 V VIN = 5.0 V...
  • Page 10 NCV97310MW50GEVB Line Regulation NCV97310 − SW1 − 3.3 V − Line Regulation 2.00% 1.50% 1.00% 0.50% IOUT = 100 mA 0.00% IOUT = 500 mA IOUT = 1.0 A −0.50% IOUT = 2.0 A IOUT = 3.0 A −1.00% −1.50% −2.00%...
  • Page 11 NCV97310MW50GEVB NCV97310 − SW3 − 1.2 V − Line Regulation 0.10% 0.05% 0.00% IOUT = 100 mA IOUT = 500 mA IOUT = 1.0 A IOUT = 2.0 A −0.05% −0.10% Input Voltage (V) Figure 11. Line Regulation for SW3 with a 1.2 V Output Load Regulation NCV97310 −...
  • Page 12 NCV97310MW50GEVB NCV97310 − SW2 Load Regulation − 3.3 V 0.10% 0.05% 0.00% VIN = 5.0 V VIN = 8.0 V −0.05% −0.10% Output Current (A) Figure 13. Load Regulation for SW2 with a 3.3 V Output NCV97310 − SW3 Load Regulation − 1.2 V 0.10%...
  • Page 13 NCV97310MW50GEVB SCHEMATIC http://onsemi.com...
  • Page 14: Pcb Layout

    NCV97310MW50GEVB PCB LAYOUT Figure 15. Top View Figure 16. Bottom View http://onsemi.com...
  • Page 15: Bill Of Materials

    RES 100 OHM 1206 Vishay/Dale CRCW1206100RFKEA RMIN3 1/4 W 1% 1206 10.0 W RSNB2, RSNB3 RES 10.0 OHM Vishay/Dale CRCW060310R0FKEA 1/10 W 1% 0603 SMD DIODE 40 V/4.0 A SMB_DIODE ON Semiconductor NRVB440MFST1G SCHOTTKY 4.0 A 40 V SMB http://onsemi.com...
  • Page 16 PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: N. American Technical Support: 800−282−9855 Toll Free ON Semiconductor Website: www.onsemi.com Literature Distribution Center for ON Semiconductor USA/Canada Order Literature: http://www.onsemi.com/orderlit P.O. Box 5163, Denver, Colorado 80217 USA Europe, Middle East and Africa Technical Support: Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada...
