ON Semiconductor NCV6323C User Manual

NCV6323GEVB
NCV6323C/D Evaluation
Board User's Manual
3 MHz, 2 A, High Efficiency, Low Ripple,
Adjustable Output Voltage, Synchronous
Buck Converter

Overview

This document is a manual file for a demo board of the
NCV6323C/D, which includes demo board schematics, bill
of materials, PCB layout, jumper setup, and test procedure.

About NCV6323C/D

The NCV6323C/D, a family of synchronous buck
converters, which is optimized to supply different sub
systems of portable applications powered by one cell Li-ion
or three cell Alkaline/NiCd/NiMH batteries. The devices are
able to deliver up to 2 A on an external adjustable voltage
range from 0.6 V to 3.3 V. Operation with 3 MHz switching
frequency allows employing small size inductor and
capacitors. Input supply voltage feed-forward control is
employed to deal with wide input voltage range.
Synchronous rectification PWM offers improved system
efficiency. The NCV6323C is in a space saving, low profile
2.0 × 2.0 × 0.75 mm WDFN−8 package.

Features

•
2.5 V to 5.5 V Input Voltage Range
•
External Adjustable Voltage
•
Up to 2 A Output Current
© Semiconductor Components Industries, LLC, 2014
March, 2018 − Rev. 0
1 uH
Vo = 0.6 V to Vin
PGND
Cout
SW
Cfb
10 uF
R1 AGND
FB
R2

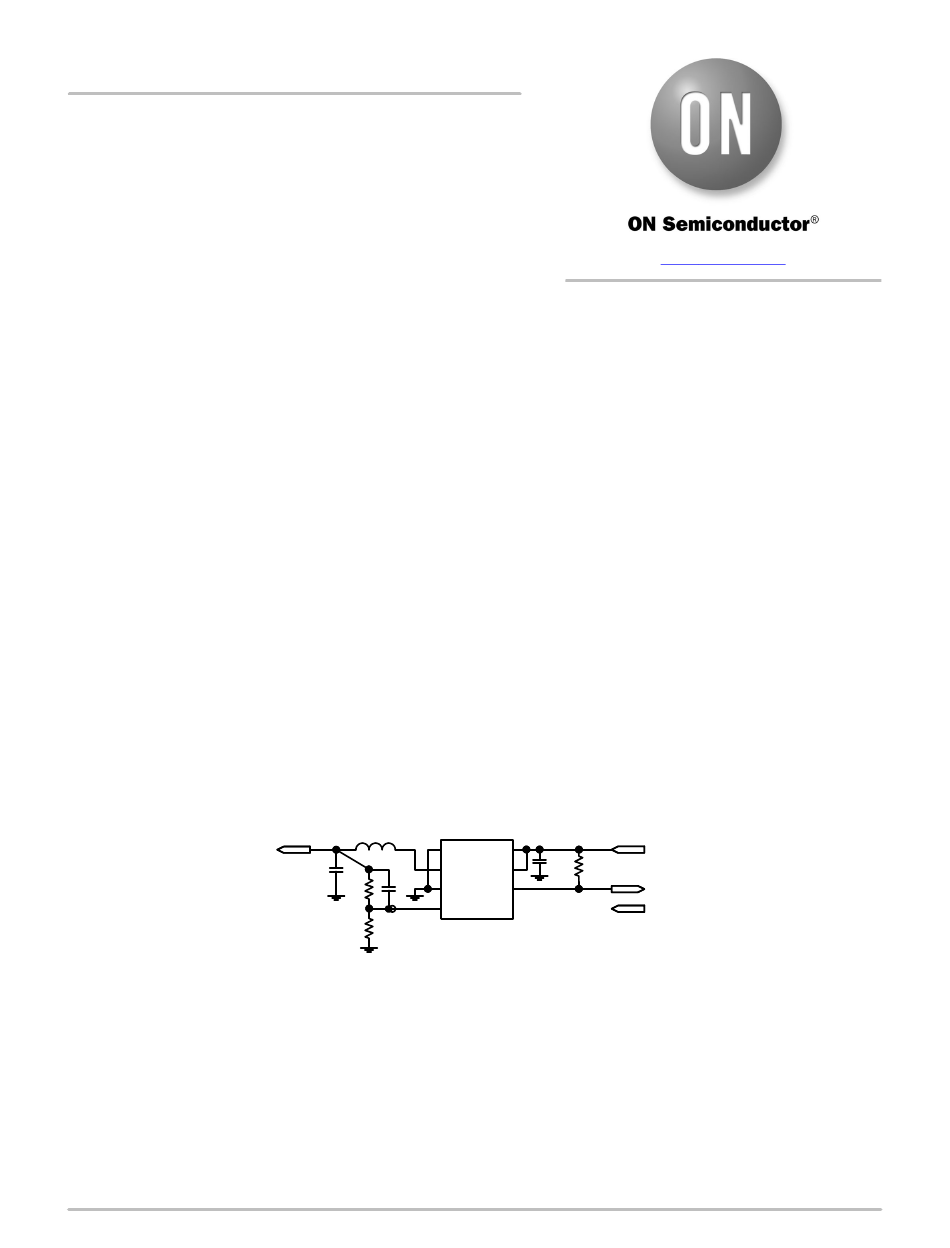

Figure 1. Typical Application Circuits
EVAL BOARD USER'S MANUAL
•
3 MHz Switching Frequency
•
PWM Synchronous Rectification
•
Enable Input
•
Power Good Output
•
Soft Start
•
Over Current Protection
•
Active Discharge When Disabled. Hi−Z Version
Available upon Request
•
Thermal Shutdown Protection
•
WDFN−8, 2 × 2 mm, 0.5 mm Pitch Package
•
Maximum 0.8 mm Height for Super Thin Applications

Typical Applications

•
Automotive Clusters
•
Automotive Cameras (Rear, Front, Side View)
•
Automotive ADAS
•
Automotive Multimedia Systems
•
Point Of Load
•
Game and Entertainment System
NCV6323C
Vin = 2.5 V to 5.5 V
PVIN
Cin
Rpg
10 uF
AVIN
1 M
Power Good
PG
Enable
EN
1
www.onsemi.com
Publication Order Number:
EVBUM2555/D
