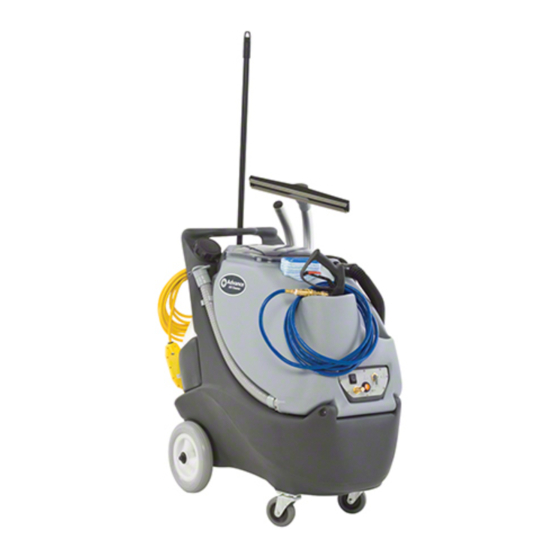

- Page 1 ALL CLEANER, ALL CLEANER XP INSTRUCTIONS FOR USE AND PARTS LIST MODELS: 56380772, 56381594 2/10 revised 1/11 Document Number 56380890...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offi ces other than normal residential housekeeping purposes. When using any electrical appliance, basic precautions should always be followed, including the following: NOTE: Read all instructions before using this machine. -
Page 3: Parts And Service
INTRODUCTION This manual will help you to get the most from your Advance All Cleaner. Read it thoroughly before operating the machine. This product is intended for commerical use only. PARTS AND SERVICE Repairs, when required, should be performed by Advance service personnel using original replacement parts and accessories. Call Advance for repair parts or service. -
Page 4: Know Your Machine Descriptions
KNOW YOUR MACHINE DESCRIPTIONS Operator Handle (1): Operator holds onto this handle to move the machine from one location to another. Solution Tank Lid (2): This lid screws off so the tank can be fi lled. The solution fi ll hose is tethered to the lid, and hangs inside the arm of the Operator Handle. - Page 5 KNOW YOUR SWITCH PLATE Vacuum Switch (1): turns on the vacuum motor. Chemical Valve (2): switches between the two chemical containers. When the selector is pointed straight down, the valve is off and neither chemical is selected. When the selector is pointed directly towards one or the other symbols, that chemical is selected. Solution Pump Switch (3): turns on the solution pump.
-
Page 6: Operation
OPERATION Insert the appropriate metering tips into the chemical feed lines (see illustration, page 5). Fill the holding tank with warm water (not exceeding 120 °F). Do not add any chemical to the tank. Prepare the area for cleaning by emptying waste receptacles, clearing debris, removing paper products, blowing out vents, and sweeping fl... -
Page 7: Maintenance Schedule
MAINTENANCE Use only approved chemicals at the recommended mix ratios. All chemicals should be added through the feed system and NOT added directly to the water in the solution tank to prevent possible damage to the pump, seals, or other components. For optimum performance, fl... - Page 8 revised 10/10 8 - FORM NO. 56380890...
- Page 9 Screw 8-32 X 7/8 Panhead Phi Label N/A & Kent Warning 6 Lo Metering Tip Burgundy 0.022 O Nut Nylon Lock 8-32 Stainles Label All Cleaner 6 X 3 Ov Metering Tip Light Blue 0.020 Chain 8 W/ D Couplings Both E 56380867 Pallet Kit Component Mounting Metering Tip Yellow 0.016 Ori...
-
Page 10: Optional Accessories
TOOLS Tool Kit, standard, complete -- 56380846 (200PSI) / 56381618 (400PSI) 56108017 Squeegee, hand-held, 12” 56380853 Handle, 12”, for hand squeegee 56380804 Pressure Line 15 Ft Complete (200 psi) 56381617 Hose Assy-1/4 X 15 Blue (400 psi) 56380855 Brush, dual surface, polypropylene 56108027 Wand, two-piece, snap fi... -
Page 11: Wiring Diagram
POWER CORD 1. NON-CSA MACHINE 2. VAC SWITCH ALL CLEANER - P/N 2123 ALL CLEANER XP AND TFC 400 - P/N 1644 3. PUMPS ALL CLEANER - P/N 960 ALL CLEANER AND TFC 400 - P/N 2060(120V) NOTES UNLESS OTHERWISE... - Page 12 14600 21st Avenue North Plymouth, MN 55447-3408 www.advance-us.com Phone: 800-989-2235 Fax: 800-989-6566 ©2011 Nilfi sk-Advance, Inc. A Nilfi sk-Advance Brand...
