that may be used is the connection of a pigtail from the feedline connection on
A second method

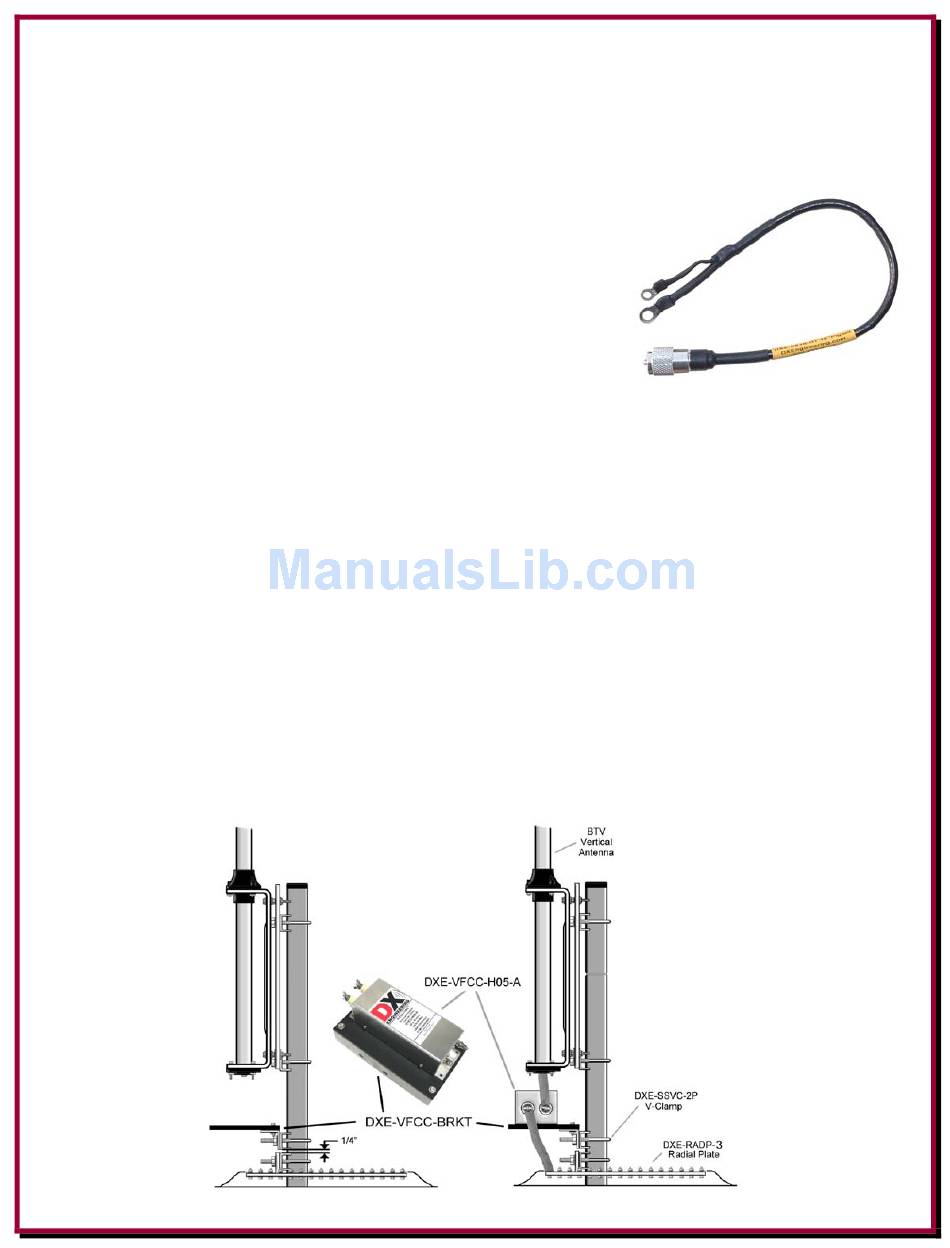

the Hustler BTV base section to the Radial Plate using a DXE-8X19-RT 19" Pigtail for the Hustler
BTV Base to PL-259 along with a DXE-363-SST Bulkhead Fitting, SO-239 Socket, Silver Plating,
Teflon Insulation to connect to the Radial Plate.
This cable makes connecting the Hustler BTV antennas to 50
Ohm coax easy!
Utilize this pigtail to convert the Hustler BTV base connections to
a PL-259 connector. Then, use a DXE-363-SST bulkhead
connector to mate the pigtail to your feedline. Done! The pigtail
and bulkhead connector are ideal for use with the DXE-RADP-3
radial plate.
This pigtail is not required if you order the optional DXE-VFCC-H05-A Vertical Feedline Current
Choke for connection to the base of the Hustler BTV series antenna. It is also not required if you
use the DXE-AOK-DCF SO-239 add-on kit for direct connection of your coaxial cable feedline to
the BTV antenna.
of making feedline connections to the Hustler BTV antennas is the use of a Feedline
A third way
Current Choke.
In cases where you have RFI in the shack, the DXE-VFCC-H05-A DXE Engineering Vertical
Feedline Current Choke may be the answer. The VFCC stops unwanted RF from using your coaxial
cable and either a radial or a radiating antenna.
Refer to the manual that comes with the DXE-VFCC-H05-A Vertical Feedline Current Choke for
basic assembly of insulated shelf, bracket and VFCC mounting on insulated shelf.
The Insulated shelf and mounting bracket are installed on the mounting pipe approximately 1/4"
above the Radial Plate using one optional DXE-SSVC-2P V-Clamp as shown below.
- 37 -
