- Page 1 Special Multi-Band Vertical Antenna UNUN UNUN, UNUN Bracket and UNUN Retrofit Information DXE-UN-43 / DXE-UN-BRKT / DXE-UN-43-R (US Patent No. D597,086) DXE-UN-43-INS Revision 4c © DX Engineering 2018 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200...
-
Page 2: Table Of Contents
Using the DXE-UN-43 results in minimizing the additional transmission lines losses caused by SWR and allows your antenna to perform to its full potential. The DXE-UN-43 reduces the stresses on your equipment more efficiently than similar competitive products. -
Page 3: Dx-Un-43 Unun Features

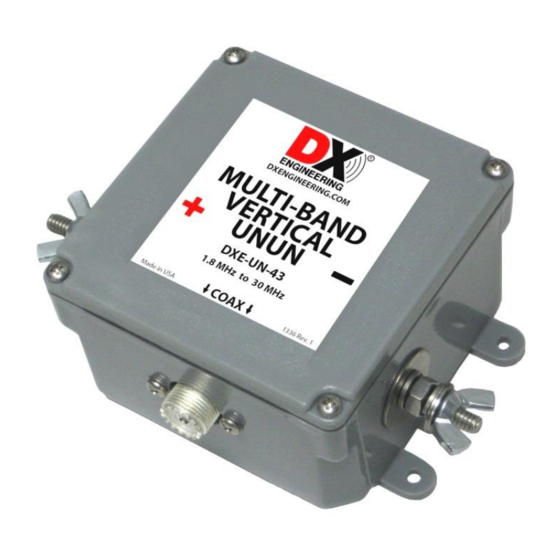

Depending on your application, The DXE-UN-43 comes in the following configurations: DX Engineering Description Part Number DXE-UN-43 only - no extra parts - ideal for replacing competitive UNUNs and Baluns for other homebrew or other manufacturers 43 foot vertical DXE-UN-43 antenna systems on the market. -
Page 4: Dxe-Un-43-R
# 10 Stainless Steel Flat Washer DXE-TCB-UNFK Description 1” wide x 9" long copper tinned braids (2) soldered and drilled on each end with a 1/4” hole for easy connection to the DXE-UN-43 UNUN. Two per package. - 3 -... -
Page 5: Installing The Unun
1/4” hole for easy connection to the UNUN. If your application requires a different connection style or layout, DX Engineering can assist you. Call DX Engineering for suggestions. - 4 -... -
Page 6: Dx Engineering Multi-Band Vertical Antenna Systems
Black "▬" on the label. DX Engineering Multi-Band Vertical Antenna Systems The DXE-UN-43 is an enhanced replacement for the 4:1 Balun on the DX Engineering Multi-Band vertical antenna systems. Remove the coaxial cable connection from the 4:1 Balun and the two braided feed lines going from the Balun to the Radial Plate and the antenna feedpoint connection bolt. -
Page 7: Repositioning The Tilt Base On The Mounting Pipe
Repositioning the Tilt Base on the Mounting Pipe Loosen the two V-Clamps holding the Tilt Base to the Mounting Pipe. Lower the Tilt Base so there is 4-1/2" clearance between the bottom of the Tilt Base and the Top of the Radial Plate. Raise the antenna back to the vertical position. -
Page 8: Installation Of Unun Assembly To Antenna Lower Section
Installation of UNUN Assembly to Antenna Lower Section The completed UNUN and UNUN Mounting Bracket assembly is mounted to the 2" OD antenna lower base section. To allow easy installation of the UNUN Bracket to the lower base section, open the upper and lower custom studded element clamps by unscrewing the worm drive of the clamps as shown in Figure 1. -
Page 9: Feedline Connections
Both braids are 1" wide by 9" in length. Connect one braid from the antenna feedpoint located on Red "+" the base section of the antenna to the terminal on the DXE-UN-43 UNUN closest to the on the label as shown in Figure 5. Do not over tighten the wing nuts. Hand tighten them only, do not use pliers or other tools to over tighten the wing nuts. - Page 10 The feedpoint on the antenna bas section can be facing forward, or can be facing to the left (when looking at the front of the antenna). Note: Ensure the"-" braid connection to the Radial Plate does not interfere with the tilting process. If this is a problem, then remove the braid from the UNUN when tilting the antenna.
-
Page 11: Other Manufacture's Non-Resonant 43 Foot Vertical Antenna Systems
43 foot vertical multi-band antenna systems using the same NEMA style Balun/Unun case. If you own a 43 foot non-resonant vertical antenna, the DXE-UN-43 will help ensure the best efficiency from your vertical multi-band antenna and transmission line/tuner installation. -
Page 12: Radial System
Do not over tighten the wing nuts. Hand tighten them only, do not use pliers or other tools to over tighten the wing nuts. Connect the other terminal on the DXE-UN-43 UNUN closest to Black "▬"... -
Page 13: Manual Updates
DXE-RADP-3 - Radial Plate, Stainless Steel with 20 Sets of SS Radial Attachment Hardware The patented DX Engineering Radial Plate is for those of you that have, or are building, a quarter wave vertical antenna and who want an easy, neat and effective way to connect those essential radial wires and the coax to your vertical antenna for the lowest takeoff angle and strongest signals. - Page 14 DXE-STPL - Radial Wire Anchor Pins, 100/pack - No need to bury your radials! DX Engineering Radial Wire Anchor Pins are perfect for fastening radials below the grass line to eliminate the risk of damaging your radials during lawn maintenance.
- Page 15 SUM-900031 - Automatic Wire Stripper/Crimper/Cutter, 24-10 Ga. Our DX Engineering wire stripper uses a spring-loaded design to make quick work of wires ranging from 24 to 10 gauge. Just insert the wire, squeeze the handle, and listen for the click. That’s the sound of another perfect wire stripping job performed in about 2 seconds- a fraction of the time it takes your pocket knife to do the same job.
-
Page 16: Technical Support
All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
