IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
260411-16

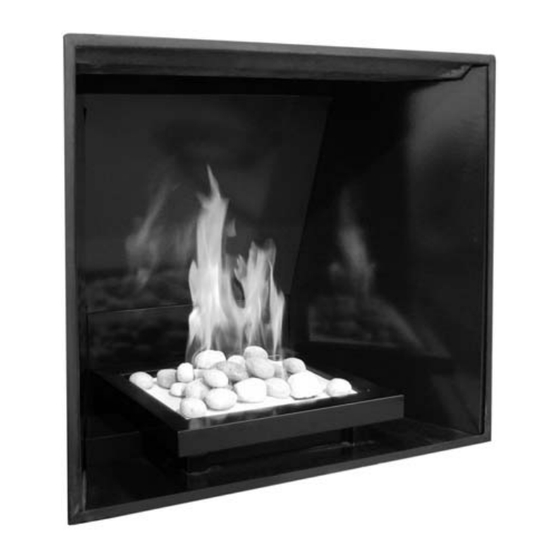

TC42
TRANQUILITY
BURNER KIT
INSTRUCTIONS
PART#
TC42.NG04C
For TC42 Series C
TC42.NG04C
5056.426C4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC42.NG04C and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC42.NG04C

Summary of Contents for Town & Country Fireplaces TC42.NG04C

  • Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TC42 TRANQUILITY BURNER KIT INSTRUCTIONS PART# TC42.NG04C For TC42 Series C 260411-16 TC42.NG04C 5056.426C4...

  • Page 2: Contents Of Package

    Bend fl ex lines into the approximate shape. (Fig #1) Place covers under the burner tray. (Fig #2 & 3) NOTE: Shutter must be fully closed for Natural gas, fully open for Propane. Fig #2 Fig #3 Fig #1 TC42.NG04C 260411-16...
  • Page 3 Fig. #4a (approx. 3” from rear panel). Fig #5 Attach the manifold supply tube and the pilot supply tube to the bulk head fi ttings and tighten. (Fig. #5) Ensure that there are no leaks. TC42.NG04C 260411-16...
  • Page 4 Red end to the connector marked by the red dot, white end to the connector marked by the white dot(Fig. #6 & 7) BULKHEAD PLATE Fig #7 MODULE WHITE END TO RED END TO WHITE DOT RED DOT TC42.NG04C 260411-16...
  • Page 5 Remove panel retainer from upper heat Fig #8 shield. Install right porcelain panel tilting in from front corner. (Fig #8) Fig #9 Slip the side panels into the panel clip as shown in Fig #9. Finish the installation as per instructions. TC42.NG04C 260411-16...
  • Page 6 (Fig #10) 8. Secure with the previously removed panel retainer. Fig #11 Slide covers out and attach to base with one screw each. (Fig #11) TC42.NG04C 260411-16...
  • Page 7 (Fig #12) Fig #13 11. Place sand in tray. Brush sand smooth and level to just below top of raised burner ports. (Fig #13) 12. Gently blow excess sand from around ports. 13. Remove tapered plugs from ports. TC42.NG04C 260411-16...
  • Page 8 Fig #15 15. Place trim rocks at desired locations in the sand around the pebble assembly. Install glass door. Unit is ready for lighting. NOTE: Do not place trim rocks on top of the pebble assembly. Sooting will occur. TC42.NG04C 260411-16...

  • Page 9: Propane Conversion

    Loosen the primary air shutter screw, Fig #18 open shutter fully and re-tighten. (Fig. #17) 4. Remove the 2 screws holding the pilot assembly in place with a stubby screwdriver. (Fig #18) TC42.NG04C 260411-16...
  • Page 10 Fig #22 Replace the minimum rate screw with the one provided in the propane con- version kit supplied with this fi replace. Ensure that the screw is fully seated. (Fig. #22) TC42.NG04C 260411-16...
  • Page 11 3/32” (2.38 mm) lation en bon état. Fig #25 Max.: 61,000 (17.9) 13. Re-attach the access panel to the side Min.: 46,200 (13.5) of the fi rebox with the screws previously 260411 6-TC42C 5052.5206C removed. (Fig. #25) TC42.NG04C 260411-16...

  • Page 12: Gas Pressure Check

    Correct gas pressure requirement: Supply Pressure Natural Gas Propane Min. Pressure 5.0" WC 12.5" WC (For purpose of input adjustment) Max. Pressure 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11" WC Minimum 2.1" WC 5.5" WC TC42.NG04C 260411-16...

  • Page 13: Burner Flame Adjustment

    Proper air shutter setting is required. For Propane the primary shutter must be fully open. The fl ame should be just orange and “lazy” . It should NEVER be set to create sooting on internal parts and window glass. TC42.NG04C 260411-16...

  • Page 14: Replacement Parts

    (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. ITEM ..DESCRIPTION ..........PART NO. #5..PILOT ASSEMBLY, CONVERTIBLE .. TCRP.5005025 #1..TRANQUILITY BURNER KIT ..... TC42.NG04C #6..ORIFICE, NATURAL GAS (#25) ..5022.12 #2..PEBBLE ASSEMBLY ......TC42.9499 #7..PROPANE CONVERSION KIT ... TC42.LPCE01 #3..
  • Page 15 TC42.NG04C 260411-16...
  • Page 16 Technical support: 1-250-748-1184 Web site: www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
