Fireplace and Venting Specifi cations
for
architects
designers
TC42
Series C
and
builders
IMPORTANT
This booklet is intended as a basic
specifi cation guide for architects,
designers and builders. Please
refer to the Instruction Manual
supplied with the fi replace for
detailed information regarding
installation and operation.
Product installation manuals can
also be viewed at:
www.townandcountryfi replaces.net.
Model TC42 Series C
For reference only. Consult Manual before installation
1
TC42.CE
080906-10
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces Model TC42SeriesC
Summary of Contents for Town & Country Fireplaces Model TC42SeriesC

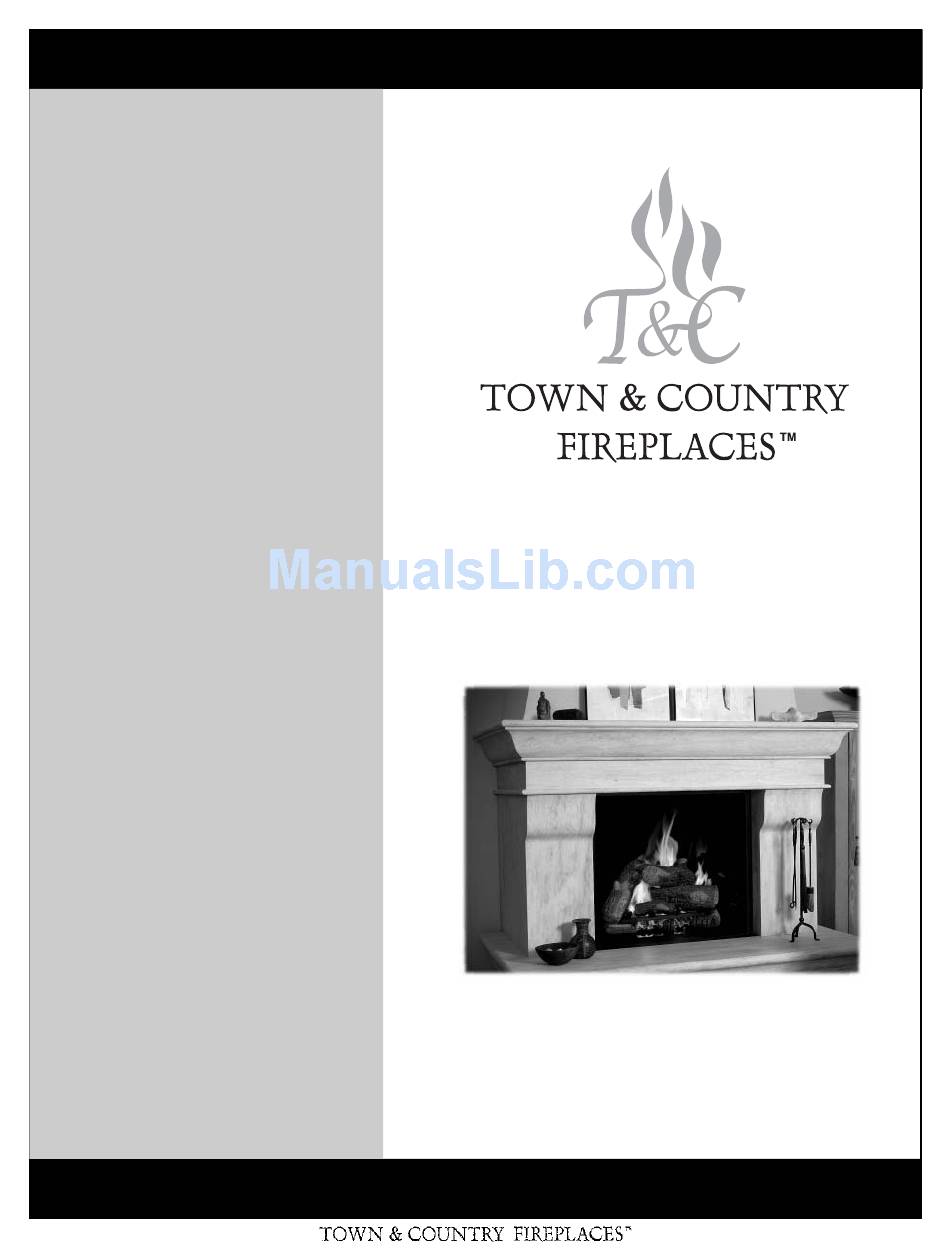

- Page 1 Fireplace and Venting Specifi cations architects designers TC42 Series C builders IMPORTANT This booklet is intended as a basic specifi cation guide for architects, designers and builders. Please refer to the Instruction Manual supplied with the fi replace for detailed information regarding installation and operation.
-
Page 2: Fireplace Dimensions
Fireplace Dimensions TC42.CE Architect.dxf Available on CD ROM and www.townandcountryfi replaces.net Examples of Common Locations For reference only. Consult Manual before installation TC42.CE 080906-10... -
Page 3: Mantel Clearance Chart
Mantel Clearance Chart COMBUSTIBLE FRAMING STEEL FRAMING AND FINISH WALL ABOVE STANDOFFS STANDOFFS MAY USE COMBUSTIBLE FACING MATERIAL IN THIS AREA NON-COMBUSTIBLE ZONE. NON-COMBUSTIBLE DO NOT INSTALL ANY FINISH MATERIAL COMBUSTIBLE MATERIAL, ELECTRICAL WIRING, INSULATION, PLASTIC VAPOUR BARRIER OR GAS PLUMBING IN THIS AREA TOP OF LINTEL BAR FIREPLACE FRONT... -
Page 4: Minimum Combustible Framing Dimensions
Concrete Steel Stud Framing Kit Dimensions Board Detail Kit supplied with unit Non-combustible Zone. CONCRETE Do not install any BOARD combustible material, electric wiring, insulation, plastic vapour barrier or gas plumbing within the steel stud frame. Concrete board (or other non-combustible material) must extend 12"... -
Page 5: Maestro Control System
Maestro Control System Town & Country Fireplaces feature the Maestro Control System*. Each fi replace arrives equipped with a small wall-mounted decor-series faceplate that is located by wire up to 25’ from the hearth. This permits on/off oper- ation, fl ame modulation and houses the battery back-up system for operation during power outages. - Page 6 Wall Termination Venting Charts 24” Pipe NOTE: The vent must not exceed a total length of 68 feet. Length Any combination of rise and run may be used but must Min. be constrained to the boundaries of this chart. A total of 3 90˚...
- Page 7 Roof Termination Venting Charts 24” Pipe NOTE: The vent must not exceed a total length of 68 feet. Length Min. Any combination of rise and run may be used but must be constrained to the boundaries of this chart. A total of TCVT Roof Vent.dxf 4 90˚...
-
Page 8: Vent Terminal Minimum Clearances
Vent Terminal Minimum Clearances Minimum clearances to the vent terminal must be maintained as shown below. Measure clearances to the nearest edge of termination hood. NOTE: Vent terminal must not be recessed into a wall or siding. VENT TERMINAL AIR SUPPLY INLET GAS METER AREA WHERE TERMINAL IS NOT PERMITTED... -
Page 9: Power Vent
Power Vent Reach almost any room or commercial setting. Optional Power Venting allows runs up to 66’ from an outside wall or roof surface. Vent horizontally or vertically with up to six 90-degree elbows, including runs up to 3’ below the fi replace. TCVT.PVB-Architect.dxf The premium Power Vent fan runs quietly outside, at the exterior terminal. - Page 10 Web: www.townandcountryfi replaces.net Phone: 1-877-715-2664 2975 Allenby Road, Duncan, BC Canada V9L 6V8 Printed in Canada...
