Supero SuperServer 6023M-8R User Manual

Hide thumbs Also See for SuperServer 6023M-8R:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

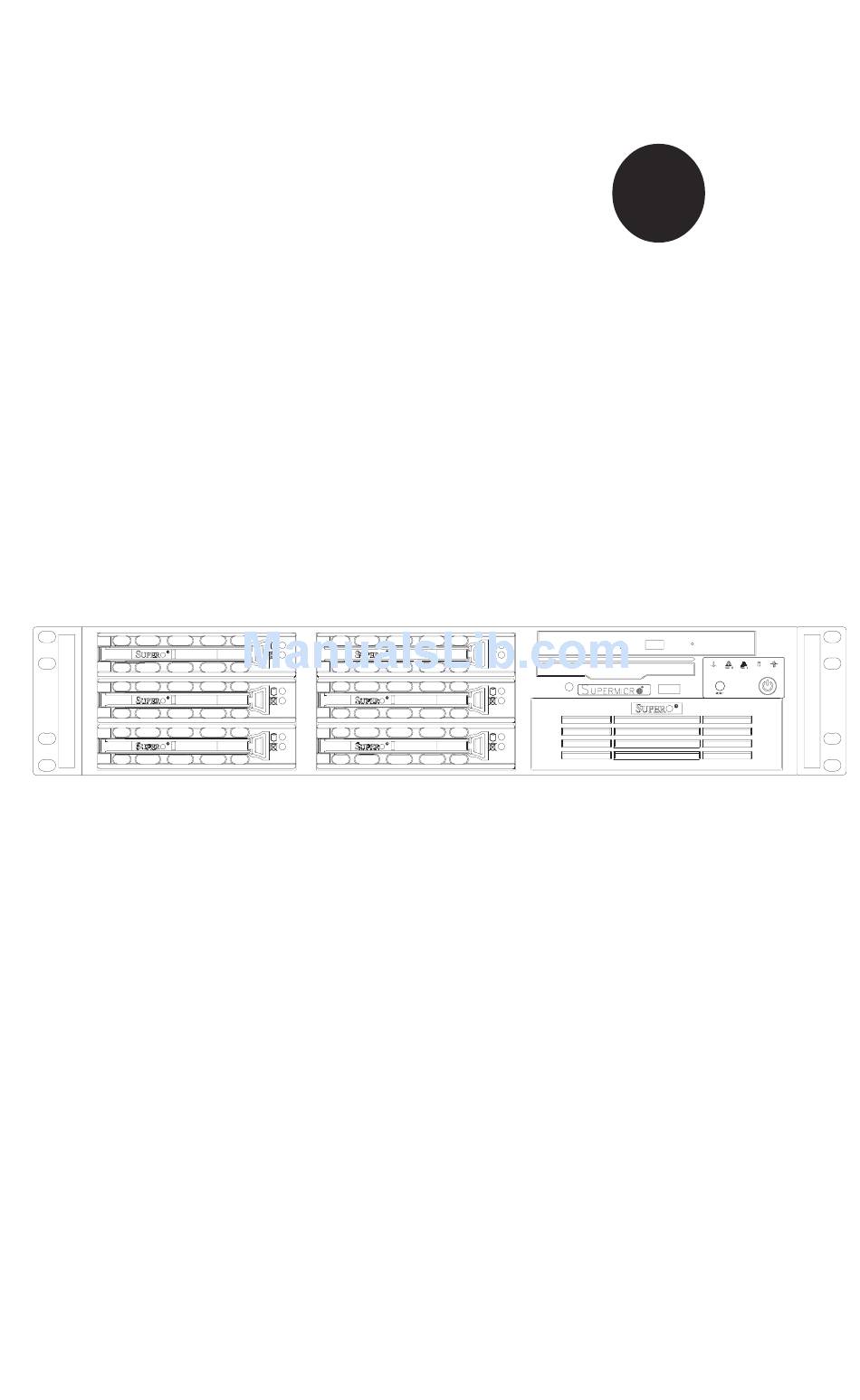

S
®
UPER
S
S
6023M-8R
UPER
ERVER
S
S
6023M-8
UPER
ERVER
USER'S MANUAL
1.0a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperServer 6023M-8R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero SuperServer 6023M-8R

Summary of Contents for Supero SuperServer 6023M-8R

  • Page 1 ® UPER 6023M-8R UPER ERVER 6023M-8 UPER ERVER USER’S MANUAL 1.0a...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the Please information in this manual, or to notify any person or organization of the updates.

  • Page 3: Preface

    Installation and maintainance should be per- formed by experienced technicians only. The SuperServer 6023M-8R/6023M-8 is a high-end, dual Xeon processor redundant power rackmount server based on the SC822S 2U rackmount server chassis and the X5DPL-8GM motherboard, which supports single or dual Xeon 604/603-pin processors of up to 3.06 GHz with a 512K L2 cache...
  • Page 4 You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 6023M-8R/6023M-8. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the X5DPL-8GM motherboard, in- cluding the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Server Chassis Features ................1-5 Contacting Supermicro .................. 1-6 Chapter 2: Server Installation Overview ......................2-1 Unpacking the SuperServer 6023M-8R/6023M-8 ........2-1 Preparing for Setup ..................2-1 Choosing a Setup Location ..............2-2 Rack Precautions ..................2-2 Server Precautions .................. 2-2 Installing the 6023M-8R/6023M-8 into a Rack ..........
  • Page 7 Table of Contents Power Fail ....................3-3 SCSI Drive Carrier LEDs ................3-3 Motherboard LED .................... 3-3 Chapter 4: System Safety Electrical Safety Precautions ................ 4-1 General Safety Precautions ................4-2 ESD Precautions ....................4-3 Operating Precautions ..................4-4 Chapter 5: Advanced Motherboard Setup Handling the X5DPL-8GM Motherboard ............
  • Page 8 UPER ERVER 6023M-8R/6023M-8 Manual ATX PS/2 Keyboard & Mouse Ports ............ 5-15 Fan Headers .................... 5-16 Power LED/Speaker/NMI ................ 5-16 Third Power Supply Fail Header ............5-16 Keylock ..................... 5-16 Wake-On-LAN ..................5-17 Wake-On-Ring ..................5-17 Jumper Settings ..................... 5-18 Explanation of Jumpers .................
  • Page 9 Table of Contents Power Supply: 6023M-8R ................6-9 Power Supply Failure ................6-9 Removing/Replacing the Power Supply ..........6-9 Power Supply: 6023M-8 ................6-10 Power Supply Failure ................6-10 Removing/Replacing the Power Supply ..........6-10 Chapter 7: BIOS Introduction ....................... 7-1 Running Setup ....................
  • Page 10 UPER ERVER 6023M-8R/6023M-8 User's Manual Notes...

  • Page 11: Chapter 1: Introduction To The 6023M-8R/6023M-8

    Chapter 1 Introduction to the 6023M-8R/6023M-8 Overview The Supermicro SuperServer 6023M-8R/6023M-8 is a high-end dual proces- sor, 2U rackmount server that features some of the most advanced technol- ogy currently available. The SuperServer 6023M-8R/6023M-8 is comprised of two main subsystems: the SC822 2U rackmount chassis and the X5DPL- 8GM dual Xeon processor mainboard.

  • Page 12: Mainboard Features

    SuperServer 6023M-8R/6023M-8 User's Manual * Product may change without notice. Mainboard Features At the heart of the SuperServer 6023M-8R/6023M-8 lies the X5DPL-8GM, a dual Intel Xeon processor motherboard designed to provide maximum per- formance. Below are the main features of the X5DPL-8GM.

  • Page 13: Onboard Scsi

    Chapter 1: Introduction Processors The X5DPL-8GM supports single or dual Intel Xeon 604/603-pin processors of up to 3.06 GHz with a 512K L2 cache at a 533/400 MHz FSB. Please refer to the motherboard specifications pages on our web site ( http:// www.supermicro.com/Product_page/product-m.htm) for updates on sup- ported processors.

  • Page 14: Other Features

    UPER ERVER 6023M-8R/6023M-8 Manual keyboard ports, a video (monitor) port, an external SCSI port and an Intel ANVIK controller for Ethernet LAN ports. Other Features Other onboard features are included to promote system health. These in- clude various voltage monitors, two CPU temperature sensors, four fan speed sensors, a chassis intrusion header, auto-switching voltage regula- tors, chassis and CPU overheat sensors, virus protection and BIOS rescue.

  • Page 15: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features The 6023M-8R/6023M-8 is a high-end, scaleable 2U rackmount server plat- form designed with state-of-the-art features. The following is a general outline of the main features of the SC822 chassis. System Power When configured as the 6023M-8R, the SC822 chassis includes a redundant 400W hot-swappable power supply.

  • Page 16: Cooling System

    UPER ERVER 6023P-8R/6023P-8 Manual Figure 1-2. I/O Backplane (6023M-8R shown) 7 Low Profile PCI Slots Keyboard/Mouse Ports USB Ports COM1 Port VGA Port Ethernet Ports Cooling System The SC822 chassis' revolutionary cooling design that includes four 8-cm redundant system cooling (intake) fans. The fans plug into chassis fan connectors that are located behind the drive bays.

  • Page 17: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 18 UPER ERVER 6023M-8R/6023M-8 Manual Notes...

  • Page 19: Chapter 2: Server Installation

    6023M-8R/6023M-8 up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your SuperServer 6023M-8R/6023M- 8 system has come to you with the processors and memory preinstalled. If your system is not already fully integrated with a motherboard, processors, system memory etc., please turn to the chapter or section noted in each...

  • Page 20: Choosing A Setup Location

    UPER ERVER 6023M-8R/6023M-8 Manual Choosing a Setup Location: - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

  • Page 21: Installing The 6023M-8R/6023M-8 Into A Rack

    Chapter 2: Server Installation Installing the 6023M-8R/6023M-8 into a Rack This section provides information on installing the SuperServer 6023P-8R/ 6023M-8 into a rack unit. If the 6023M-8R/6023M-8 has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 22: Installing The Chassis Rails

    Installing Chassis Rails Installing the Rack Rails: Determine where you want to place the SuperServer 6023M-8R/6023M-8 in the rack. (See Rack and Server Precautions in Section 2-3.) Position the fixed rack rail/sliding rail guide assemblies at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack.

  • Page 23: Installing The Server Into The Rack

    Chapter 2: Server Installation other assembly to the other side of the rack, making sure both are at the exact same height and with the rail guides facing inward. Installing the Server into the Rack: You should now have rails attached to both the chassis and the rack unit.

  • Page 24: Installing The Server Into A Telco Rack

    ERVER 6023M-8R/6023M-8 Manual Installing the Server into a Telco Rack: If you are installing the SuperServer 6023M-8R/6023M-8 into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 25: Checking The Motherboard Setup

    Chapter 2: Server Installation Checking the Motherboard Setup After you install the 6023M-8R/6023M-8 in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the con- nections have been made. 1. Accessing the inside of the 6023M-8R/6023M-8 (see Figure 2-5): First, release the retention screws that secure the unit to the rack.

  • Page 26: Checking The Drive Bay Setup

    UPER ERVER 6023M-8R/6023M-8 Manual Figure 2-5. Accessing the Inside of the 6023M-8R/6023M-8 Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SCSI drives and SCA backplane have been properly installed and all connections have been made.
  • Page 27 Chapter 2: Server Installation 2. CD-ROM and floppy disk drives: A slim CD-ROM and a floppy drive should be preinstalled in your server. Refer to Chapter 6 if you need to reinstall a CD-ROM and/or floppy disk drive to the system. 3.
  • Page 28 UPER ERVER 6023M-8R/6023M-8 Manual Notes 2-10...

  • Page 29: Chapter 3: System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the SCSI drive carriers and the motherboard to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 30: Control Panel Leds

    SUPERSERVER 6023M-8R/6023M-8 User's Manual Control Panel LEDs The control panel located on the front of the SC822 chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illumi- nated and any corrective action you may need to take.

  • Page 31: Power

    Chapter 3: System Interface Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Power Fail: Indicates a power supply module has failed. The sec- ond power supply module will take the load and keep the system running but the failed module will need to be replaced.
  • Page 32 SUPERSERVER 6023M-8R/6023M-8 User's Manual Notes...

  • Page 33: Chapter 4: System Safety

    Chapter 4: System Safety Chapter 4 System Safety Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 6023P-8R/6023P-8 from damage: ! Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 34: General Safety Precautions

    General Safety Precautions Follow these rules to ensure general safety: ! Keep the area around the SuperServer 6023M-8R/6023M-8 clean and free of clutter. ! The SuperServer 6023M-8R/6023M-8 weighs approximately 46/43 lbs when fully loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight.

  • Page 35: Esd Precautions

    Chapter 4: System Safety ! After accessing the inside of the system, close the system back up and secure it to the rack unit with the retention screws after ensuring that all connections have been made. ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other.

  • Page 36: Operating Precautions

    UPER ERVER 6023M-8R/6023M-8 Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 6023M-8R/6023M-8 is operating to assure proper cooling. Out of warranty damage to the 6023M-8R/6023M-8 system can occur if this practice is not strictly followed.

  • Page 37: Chapter 5: Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install processors and heatsinks to the X5DPL-8GM motherboard, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are de- scribed and a layout and quick reference chart are included in this chapter.

  • Page 38: Pga Processor And Heatsink Installation

    UPERSERVER 6023M-8R/6023M-8 User’s Manual PGA Processor and Heatsink Installation When handling the processor package, avoid placing direct pressure on the label area of the fan. Also, do not place the motherboard on a conductive surface, which can damage the BIOS battery and prevent the system from booting up. IMPORTANT: Always connect the power cord last and always remove it before adding, removing or changing any hardware components.
  • Page 39 Chapter 5: Advanced Motherboard Setup 4. Apply the proper amount of thermal compound to the CPU die and place the heatsink on top of the CPU. Make sure the heatsink sits completely flat on the CPU - if not, the space between the two will degrade the heat dissipation function of the heatsink, which may cause the processor to overheat.
  • Page 40 UPERSERVER 6023M-8R/6023M-8 User’s Manual Figure 5-2. Heatsink Installation...

  • Page 41: Connecting Cables

    Chapter 5: Advanced Motherboard Setup Connecting Cables Now that the processors are installed, the next step is to connect the cables to the board. These include the data (ribbon) cables for the periph- erals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from block-...

  • Page 42: Connecting The Control Panel

    UPERSERVER 6023M-8R/6023M-8 User’s Manual Connecting the Control Panel JF2 contains header pins for various front control panel connectors. See Figure 5-3 for the pin locations of the various front control panel buttons and LED indicators. Please note that even and odd numbered pins are on opposite sides of each header.

  • Page 43: I/O Ports

    Chapter 5: Advanced Motherboard Setup I/O Ports The I/O ports are color coded in conformance with the PC 99 specification. See Figure 5-4 below for the colors and locations of the various I/O ports. Figure 5-4. X5DPL-8GM Rear Panel I/O Ports Mouse Parallel Port (Burgundy) (Green)
  • Page 44 UPERSERVER 6023M-8R/6023M-8 User’s Manual Memory Support The X5DPL-8GM only supports ECC registered DDR-266/200 (PC2100/1600) memory. If you are using 533 MHz FSB processors, you must use DDR-266 SDRAM. If you are using 400 MHz FSB processors, you may use either DDR-266 or DDR-200 SDRAM.

  • Page 45: Adding Pci Cards

    Chapter 5: Advanced Motherboard Setup Adding PCI Cards PCI slots: The X5DPL-8GM has three 64-bit, 100 MHz PCI-X, three 32-bit, 33 MHz PCI and one SXB (Super Extended Bus) slots. The SC822S chassis accom- modates up to six low-profile add-on cards. PCI card installation: Before installing a PCI add-on card, make sure you install it into a slot that supports the speed of the card (see step 1, above).

  • Page 46: Motherboard Layout

    UPERSERVER 6023M-8R/6023M-8 User’s Manual Motherboard Layout Figure 5-7. SUPER X5DPL-8GM Layout (not drawn to scale) ® JP40 Keyboard ATX PWR CONN UPER X5DPL-8GM Mouse DIMM #1A Chassis Fan4 BANK 1 USB 0/1 DIMM #1B CPU1 Fan DIMM #2A COM1 BANK 2 CPU 1 DIMM #2B DIMM #3A...
  • Page 47 Chapter 5: Advanced Motherboard Setup X5DP8-G2 Quick Reference Jumper Description Default Setting JBT1 CMOS Clear See Jumper Section Speaker Enable (page 2-11) Close 6-7 (Enabled) JPA1/JPA2 SCSI CH A/B Termination Open (Enabled) GLAN Enable/Disable Pins 1-2 (Enabled) VGA Enable/Disable Pins 1-2 (Enabled) Power Fail Alarm En/Disable Open (Disabled) JP22...

  • Page 48: Connector Definitions

    UPERSERVER 6023M-8R/6023M-8 User’s Manual Connector Definitions ATX Power Connection ATX Power Supply 24-pin Connector Pin Definitions The ATX power supply connector Pin Number Definition Pin Number Definition +3.3V +3.3V meets the SSI (Superset ATX) 24- +3.3V -12V pin specification, however it also PS_ON# supports a 20-pin power supply connector.

  • Page 49: Hdd Led

    Chapter 5: Advanced Motherboard Setup HDD LED HDD L ED Pin The HDD (IDE Hard Disk Drive) LED Definitions (JF 2) connection is located on pins 13 and 14 of JF2. Attach the IDE hard Number Definition drive LED cable to display disk ac- HD Active tivity.

  • Page 50: Reset Button

    UPERSERVER 6023M-8R/6023M-8 User’s Manual Reset Button Reset Pin Definitions The Reset Button connection is lo- (JF 2) cated on pins 3 and 4 of JF2. At- Number Definition tach it to the hardware reset Reset Ground switch on the computer case. Refer to the table on the right for pin definitions.

  • Page 51: Extra Usb Headers

    Chapter 5: Advanced Motherboard Setup Extra Universal Serial Bus USB2 Pin USB 3 Pin Headers Definitions (J13) Definitio ns (J14) Number Definition Number Definition Extra USB headers (USB2/USB3) Power Power can be used for front side USB access. You will need a USB Ground Ground cable (not included) to use either...

  • Page 52: Fan Headers

    UPERSERVER 6023M-8R/6023M-8 User’s Manual Fan Headers Fan H eader Pin Definitions The X5DPL-8GM has several CPU Number Definition Ground (black) and chassis fan headers. See the +12V (red) Tachometer table on the right for pin defini- Caution: These fan headers tions.

  • Page 53: Wake-On-Lan

    Chapter 5: Advanced Motherboard Setup Wake-On-LAN The Wake-On-LAN header is des- W ake-On-LAN Pin Definitions (W OL) ignated WOL. See the table on the Number Definition right for pin definitions. You must +5V Standby enable the LAN Wake-Up setting in Ground W ake-up BIOS to use this feature.

  • Page 54: Jumper Settings

    UPERSERVER 6023M-8R/6023M-8 User’s Manual Jumper Settings Explanation of Jumpers Connector Pins To modify the operation of the motherboard, jumpers can be used choose between Jumper optional settings. Jumpers create shorts between two pins to change the function of the Setting connector.

  • Page 55: Glan Enable/Disable

    Chapter 5: Advanced Motherboard Setup GLAN GLAN Enable/Disable Enable/Disable Jumper Settings (JD4) Change the setting of jumper JD4 Jum per to enable or disable the onboard Position Definition Pins 1-2 Enabled GLAN ports (GLAN1 and GLAN2) Pins 2-3 Disabled on the motherboard. See the table on the right for jumper settings.

  • Page 56: Scsi Termination Enable/Disable

    UPERSERVER 6023M-8R/6023M-8 User’s Manual SCSI Termination Enable/ Disable SCSI Channel T ermination Enable/Disable Jumper Settings Jumpers JPA1 and JPA2 allow you (JPA1, JPA2) to enable or disable termination for Jumper Position Definition the individual SCSI channels. Open Enabled Jumper JPA1 controls SCSI channel Closed Disabled A and JPA2 controls SCSI channel...

  • Page 57: Speaker Enable/Disable

    Chapter 5: Advanced Motherboard Setup Speaker Enable/Disable On the JD1 header, add a jumper to pins 6-7 to enable the onboard speaker. If you wish to use an external speaker, remove it to dis- able the onboard speaker. 5-10 Onboard Indicators GLAN LEDs 1 Gb LAN Right LED Indicator...

  • Page 58: Floppy Connector

    UPERSERVER 6023M-8R/6023M-8 User’s Manual 5-11 Floppy/Hard Disk Drive and SCSI Connections Note the following when connecting the floppy and hard disk drive cables: • The floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1. •...

  • Page 59: Ide Connectors

    Chapter 5: Advanced Motherboard Setup IDE Connectors IDE Connector Pin Definitions (IDE#1, IDE#2) Pin Number Function Pin Number Function There are no jumpers to Reset IDE G ND configure the onboard IDE#1 Host Data 7 Host Data 8 Host Data 6 Host Data 9 and #2 connectors.

  • Page 60: 5-12 Installing Software Drivers

    UPERSERVER 6023M-8R/6023M-8 User’s Manual 5-12 Installing Software Drivers After all the hardware has been installed you must install the software drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your motherboard. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-8 should appear.

  • Page 61: Chapter 6: Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC822 chassis. For component installation, follow the steps in the order given to eliminate the most common problems encoun- tered.

  • Page 62: Control Panel

    UPER ERVER 6023M-8R/6023M-8 Manual Slim-Line Control Panel/ Floppy Drive CD-ROM Drive System LEDs SCSI Drives (6) 5 1/4" Drive Bay System Reset Main Power 7 Low Profile PCI Slots Keyboard/Mouse Ports USB Ports COM1 Port VGA Port Ethernet Ports Figure 6-1. Chassis: Front and Rear Views (6023M-8R shown - the 6023M-8 has a single power supply module) Control Panel...

  • Page 63: System Fans

    System Fans Four 8-cm fans (and the active CPU heatsinks) provide all the cooling needed for the SuperServer 6023M-8R/6023M-8. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the compo- nents.

  • Page 64: Drive Bay Installation/Removal

    SCSI drives. Proceed to the next step for instructions. Note: You must use standard 1" high, 80-pin SCA SCSI drives in the SuperServer 6023M-8R/6023M-8. CD-ROM/Floppy Disk Drive: For installing/removing the CD-ROM or floppy disk drive, you will need to gain access to the inside of the server by removing the top cover of the chassis.

  • Page 65: Scsi Drive Installation

    Chapter 6: Advanced Chassis Setup SCSI Drive Installation Mounting a SCSI drive in a drive carrier: The SCSI drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the SCSI drive bays. For this reason, even empty carriers without SCSI drives installed must remain in the chassis to cool each drive evenly.
  • Page 66 UPER ERVER 6023M-8R/6023M-8 Manual Installing/removing hot-swap SCSI drives: The SCSI drive bays are located in the front of the chassis, making them easily accessible for installation and removal. The SCSI drives are hot- swap units, meaning that they can be installed and removed while the system is running.

  • Page 67: Installing A Component In The 5 1/4" Drive Bay

    Chapter 6: Advanced Chassis Setup SCA Backplane The SCSI drives plug into a SAF-TE compliant SCA backplane that provides power, SCSI ID and bus termination. A RAID controller can be used with the SCA backplane to provide data security. The operating system you use must have RAID support to enable the hot-swap capability of the SCSI drive.

  • Page 68: Cd-Rom And Floppy Drive Installation

    UPER ERVER 6023M-8R/6023M-8 Manual Installing/removing 5 1/4" drive bay component A single 5 1/4" IDE drive bay is located in the front of the chassis, making it easily accessible for installation and removal. This component is not hot-swappable, meaning system power must be turned off before installing and/or removing them.

  • Page 69: Power Supply: 6023M-8R

    Chapter 6: Advanced Chassis Setup Power Supply: 6023M-8R The SuperServer 6023M-8R has a 400 watt redundant power supply con- sisting of two power modules. Each power supply module has an auto- switching capability, which enables it to automatically sense and operate at a 100V to 220V input voltage.

  • Page 70: Power Supply: 6023M-8

    UPER ERVER 6023M-8R/6023M-8 Manual Power Supply: 6023M-8 The SuperServer 6023M-8 has a single 400 watt power supply. This power supply has an auto-switching capability, which enables it to automatically sense and operate at a 100V to 240V input voltage. Power Supply Failure If the power supply unit fails, the system will shut down and you will need to replace the power supply unit.

  • Page 71: Chapter 7: Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the PhoenixBIOS™ Setup utility for the X5DP8-G2. The Phoenix ROM BIOS is stored in a flash chip and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 72: Running Setup

    SUPERSERVER 6023M-8R/6023M-8 User's Manual Running Setup *Default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choos- ing the appropriate text from the main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see on next page).

  • Page 73: Main Bios Setup Menu

    Chapter 7: BIOS Main BIOS Setup Menu Phoenix BIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help System Time [16:19:20] System Date [02/02/02] Legacy Diskette A: [1.44/1.25 MB] Legacy Diskette B: [Not Installed] ! Primary Master [120 GB] ! Primary Slave [None] ! Secondary Master...

  • Page 74: Legacy Diskette A

    SUPERSERVER 6023M-8R/6023M-8 User's Manual Legacy Diskette A This setting allows the user to set the type of floppy disk drive installed as diskette A. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.
  • Page 75 Chapter 7: BIOS Type Selects the type of IDE hard drive. The options are Auto (allows BIOS automatically determine the hard drive's capacity, number of heads, etc.), a number from 1-39 to select a predetermined type of hard drive, CD-ROM and ATAPI Removable. Multi-Sector Transfers Select the number of transfer sectors.

  • Page 76: Advanced Setup

    SUPERSERVER 6023M-8R/6023M-8 User's Manual Advanced Setup Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>.
  • Page 77 Chapter 7: BIOS Quiet Boot This setting allows you to Enable or Disable the diagnostic screen during boot-up. Legacy USB Support This setting allows you to enable support for Legacy USB devices. The settings are Enabled and Disabled. Reset Configuration Data Options are Yes and No.
  • Page 78 SUPERSERVER 6023M-8R/6023M-8 User's Manual Interrupt Select the IRQ (interrupt request) for serial port A. Options are IRQ3 and IRQ4. Serial Port B This setting allows you to assign control of serial port B. The options are Enabled (user defined), Disabled, Auto (BIOS controlled) and OS Controlled.
  • Page 79 Chapter 7: BIOS Mode Specify the parallel port mode. Options are Output Only, Bi-directional, EPP and ECP. DMA Channel Specify the DMA channel. Options are DMA1 and DMA3. Floppy Disk Controller This setting allows you to assign control of the floppy disk controller. The options are Enabled (user defined), Disabled and Auto (BIOS controlled).
  • Page 80 SUPERSERVER 6023M-8R/6023M-8 User's Manual ECC Configuration This setting lets you enable or disable ECC (Error Correction and Checking). The options are ECC and Disabled. ECC Error Type This setting lets you select which type of interrupt will be activated as a result of an ECC error.
  • Page 81 Chapter 7: BIOS Split Lock Operations This setting allows you to Enable or Disable split lock operations. Hyper-threading This setting allows you to Enable or Disable hyper-threading. Enabling hyper-threading results in increased CPU performance. L3 Cache This setting allows you to Enable or Disable the L3 cache. ! ! ! ! ! DMI Event Logging Access the submenu to make changes to the following settings.
  • Page 82 SUPERSERVER 6023M-8R/6023M-8 User's Manual Clear All DMI Event Logs Highlight this item and press <Enter> to clear all DMI event logs. ! ! ! ! ! Console Redirection Access the submenu to make changes to the following settings. COM Port Address Specifies to redirect the console to On-board COMA or On-board COMB.

  • Page 83: Security

    Chapter 7: BIOS Security Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Security setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Security BIOS settings are described in this section.
  • Page 84 SUPERSERVER 6023M-8R/6023M-8 User's Manual Set Supervisor Password When the item "Set Supervisor Password" is highlighted, hit the <Enter> key. When prompted, type the Supervisor's password in the dialogue box to set or to change supervisor's password, which allows access to BIOS.

  • Page 85: Power

    Chapter 7: BIOS Power Choose Power from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Power setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Power BIOS settings are described in this section.
  • Page 86 SUPERSERVER 6023M-8R/6023M-8 User's Manual Standby Timeout Use this setting to specify the period of system inactivity to transpire before entering the standby state. Options are Off, 16 sec, 32 sec, 48 sec, 1 min, 2 min, 4 min and 8 min.

  • Page 87: Boot

    Chapter 7: BIOS Boot Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Highlighting a setting with a + or - will expand or collapse that entry. See details on how to change the order and specs of boot devices in the Item Specific Help window.
  • Page 88 SUPERSERVER 6023M-8R/6023M-8 User's Manual +Hard Drive Highlight and press <Enter> to expand the field. See details on how to change the order and specs of hard drives in the Item Specific Help w i n d o w . Network Boot See details on how to change the order and specs of network boot devices in the Item Specific Help window.

  • Page 89: Pir

    Chapter 7: BIOS Choose PIR from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>. PIR stands for "Processor Info ROM", which allows BIOS to read certain information from the processors.
  • Page 90 SUPERSERVER 6023M-8R/6023M-8 User's Manual ! ! ! ! ! Processor Info ROM Data Highlight this and hit <Enter> to see PIR data on the following items: Header Info Processor Data Processor Core Data L3 Cache Data Package Data Part Number Data...

  • Page 91: Exit

    Chapter 7: BIOS Chassis Fan 2 Processor Vcore 3.3V Standby 3.3V Vcc 5V Vcc 12V Vcc 1.8V Vcc -12V Vcc Exit Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. All Exit BIOS settings are described in this section.
  • Page 92 SUPERSERVER 6023M-8R/6023M-8 User's Manual Exit Saving Changes Highlight this item and hit <Enter> to save any changes you made and to exit the BIOS Setup utility. Exit Discarding Changes Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any changes you may have made.

  • Page 93: Appendix A: Bios Post Messages

    Appendix A: BIOS POST Messages Appendix A BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.
  • Page 94 UPER ERVER 6023M-8R/6023M-8 Manual System CMOS checksum bad - Default configuration used System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The BIOS installed Default Setup Values. If you do not want these values, enter Setup and enter your own values.
  • Page 95 Appendix A: BIOS POST Messages System cache error - Cache disabled RAM cache failed and BIOS disabled the cache. On older boards, check the cache jumpers. You may have to replace the cache. See your dealer. A disabled cache slows system performance considerably. CPU ID: CPU socket number for Multi-Processor error.
  • Page 96 UPER ERVER 6023M-8R/6023M-8 Manual Fixed Disk n Fixed disk n (0-3) identified. Invalid System Configuration Data Problem with NVRAM (CMOS) data. I/O device IRQ conflict I/O device IRQ conflict error. PS/2 Mouse Boot Summary Screen: PS/2 Mouse installed. nnnn kB Extended RAM Passed Where nnnn is the amount of RAM in kilobytes successfully tested.
  • Page 97 Appendix A: BIOS POST Messages Parity Check 2 nnnn Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. Press <F1> to resume, <F2> to Setup, <F3> for previous Displayed after any recoverable error message.
  • Page 98 UPER ERVER 6023M-8R/6023M-8 Manual Notes...

  • Page 99: Appendix B: Bios Post Codes

    Appendix B: BIOS POST Codes Appendix B BIOS POST Codes This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST codes are divided into two categories: recoverable and terminal. Recoverable POST Errors When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem.
  • Page 100 UPER ERVER 6023P-8R/6023P-8R Manual POST Code Description Initialize keyboard controller 1-2-2-3 BIOS ROM checksum Initialize cache before memory Auto size 8254 timer initialization 8237 DMA controller initialization Reset Programmable Interrupt Controller 1-3-1-1 Test DRAM refresh 1-3-1-3 Test 8742 Keyboard Controller Set ES segment register to 4 GB Auto size DRAM Initialize POST Memory Manager...
  • Page 101 Appendix B: BIOS POST Codes POST Code Description Initialize POST display service Display prompt “Press F2 to enter SETUP” Disable CPU cache Test RAM between 512 and 640 kB Test extended memory Test extended memory address lines Jump to UserPatch1 Configure advanced cache registers Initialize Multi Processor APIC Enable external and CPU caches...
  • Page 102 UPER ERVER 6023M-8R/6023M-8R Manual POST Code Description Fix up Multi Processor table 1-2 Search for option ROMs. One long, two short beeps on checksum failure Check for SMART Drive (optional) Shadow option ROMs Set up Power Management Initialize security engine (optional) Enable hardware interrupts Determine number of ATA and SCSI drives Set time of day...
  • Page 103 Appendix B: BIOS POST Codes POST Code Description Redirect Int 13h to Memory Technologies Devices such as ROM, RAM, PCMCIA, and serial disk Redirect Int 10h to enable remote serial video Re-map I/O and memory for PCMCIA Initialize digitizer and display message Unknown interrupt The following are for boot block in Flash ROM POST Code...
  • Page 104 UPER ERVER 6023M-8R/6023M-8R Manual Notes...

  • Page 105: Appendix C: System Specifications

    Appendix C: System Specifications Appendix C System Specifications Processors ® Single or dual Intel Xeon 604/603-pin processors to 3.06 GHz with a 512K L2 cache at a front side (system) bus speed of 533/400 MHz. Note: Please refer to the motherboard specifications pages on our web site (http:// www.supermicro.com/Product_page/product-m.htm) for updates on supported processors.
  • Page 106 UPER ERVER 6023M-8R/6023M-8 User's Manual Expansion Slots Six (6) 64-bit PCI-X slots (with optional speed/PCI-X and PCI settings) and one (1) SXB (128-bit Super Extended Bus) slot Motherboard Model: X5DPL-8GM Form Factor: ATX Dimensions: 12 x 13 in (305 x 330 mm) System Input Requirements 6023M-8R: AC Input Voltage: 100-240V AC...
  • Page 107 Appendix C: System Specifications 6023M-8: Model: SC822S-400LP Form Factor: 2U rackmount Dimensions: (WxHxD) 16.7 x 3.5 x 25.7 in. (425 x 88 x 652 mm) Weight (6023M-8R/6023M-8) Net (Bare Bone): 46/43 lbs. (21/19.5 kg.) Gross (Bare Bone): 57/54 lbs. (25.9/24.5 kg.) Operating Environment Operating Temperature: 0 to +35 degrees C Non-operating Temperature: -35 to +60 degrees C...
  • Page 108 UPER ERVER 6023M-8R/6023M-8 User's Manual Notes...
