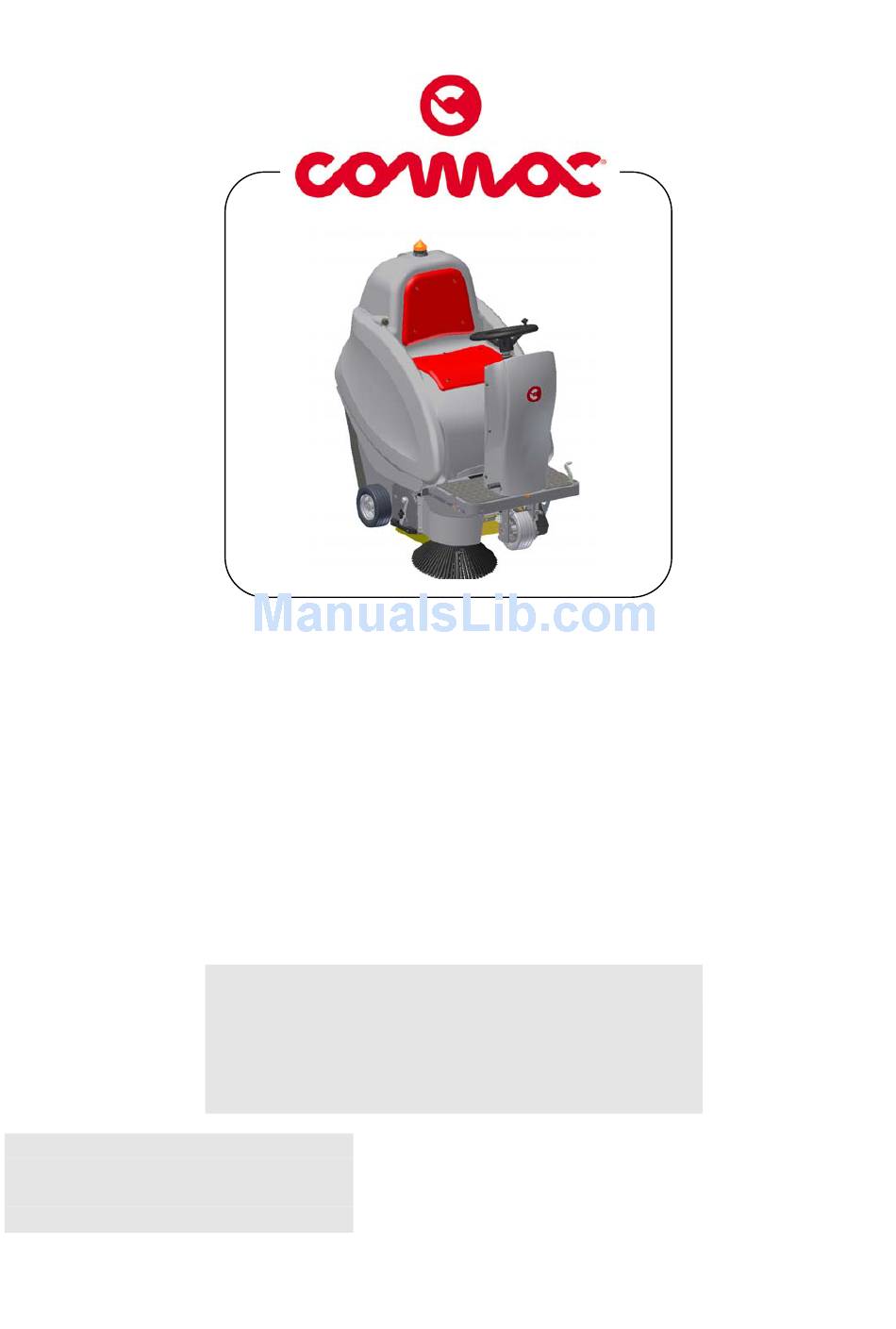

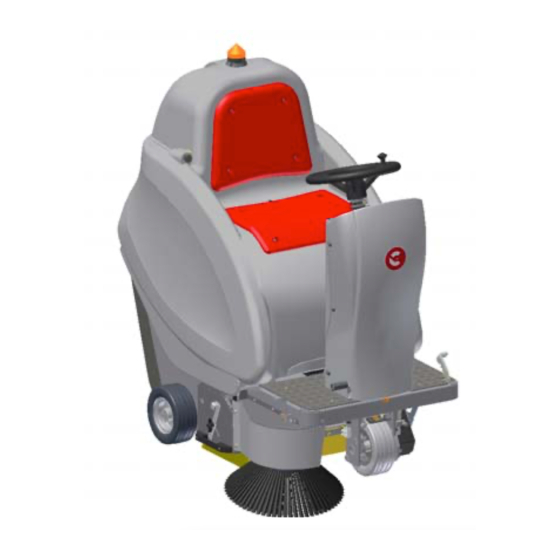

  • Page 1 CS 60 II 09/2006 Codice 410856...

  • Page 2: Table Of Contents

    SUMMARY ON DELIVERY OF THE MACHINE ..........................4 INTRODUCTION ................................4 DATA FOR IDENTIFICATION .............................4 TECHNICAL DATA ..............................4 SYMBOLS ..................................5 PREPARATION OF THE MACHINE..........................6 1. UNPACKING THE MACHINE ..............................6 2. REMOVING THE PACKAGE ..............................6 3. SLIDING THE MACHINE DOWN OFF THE PALLET ......................6 4.

  • Page 3: On Delivery Of The Machine

    A large hopper is provided for collection of the swept material which is manually emptied using the mechanical dumping system. TECHNICAL DATA CS 60 II Working width excluding side brush Working capacity 2700...

  • Page 4: Symbols

    SYMBOLS Filter shaker Central broom rotation (automatic/manual traction) Side brush Horn Central broom Open book symbol. Points out to read manual before using the machine. ON/OFF (battery machine) Warning symbol Read with care all instructions with this symbol to ensure operator and 0 / 1 machine safety.

  • Page 5: Preparation Of The Machine

    PREPARATION OF THE MACHINE 1. UNPACKING THE MACHINE The machine is delivered packed on a pallet. To move it use a fork truck or a pulley block with sling. 2. REMOVING THE PACKAGE To remove the package proceed as follows: 1.

  • Page 6: Batteries Assembly And Connection (Battery Machine Only)

    PREPARATION OF THE MACHINE BATTERIES ASSEMBLY AND CONNECTION (battery machine only) For the best mix of economy and usage we suggest fitting 2 x 12V 140Ah batteries. Before assembly, ensure the batteries are charged. Assembly instructions: 1. Remove the “on-off” key from the lock. 2.

  • Page 7: Battery Charge Level Indicator

    PREPARATION OF THE MACHINE 8. BATTERY CHARGE LEVEL INDICATOR The battery charge level indicator is digital with 4 fixed positions and a blinking one. The numbers which appear on the display show the approximate charge level. 4 = maximum charge, 3 = charge 3/4, 2 = charge 2/4, 1 = charge 1/4, 0 = discharged batteries (blinking) ATTENTION: a few seconds after the meter reads “0”...

  • Page 8: General Safety Regulations

     If the machine does not work properly, check by conducting simple maintenance procedures. Otherwise it is better to ask for technical service COMAC S.p.A..  Where parts are required, ask for ORIGINAL spare parts from your agent and/or from an authorized COMAC dealer.  Prior to any maintenance operation remove the power supply from the machine.

  • Page 9: Operating The Machine

    OPERATING THE MACHINE WORKING POSITION The user operates while sitting, having manual lever and pedal controls on the instruments control board. INSTRUMENT BOARD CONTROL POSITION 1. Horn 2. Central broom switch device (MAN/AUTO) 3. Battery control indicator 4. Key start 5.

  • Page 10: Work

    WORK WARNING Before to operate every type of work: 1. Make sure that the parking brake is released 2. Make sure that the suction opening knob is all inserted OPERATION CENTRAL BRUSH SWITCH 1. Push the brush motor switch in AUTO position. In this position the central brush starts to turn when the accelerator pedal is pressed.

  • Page 11: Machine Starting Switch

    WORK MACHINE STARTING SWITCH 1. Turn the key in position 1 (clockwise direction). 2. Check that the batteries electric charge is enough to do the foreseen work. 4 = maximum charge, 3 = charge 3/4, 2 = charge 2/4, 1 = charge 1/4, 0 = discharged batteries (blinking) To avoid permanent damages to batteries, it’s essential to avoid the complete batteries discharge.

  • Page 12: Brake Or Emergency Brake Usage

    WORK BRAKE OR EMERGENCY BRAKE USAGE Operating on the lever (1) you operate to brake or stop the machine speed. To stop completely the gear press and push back the pedal until it stops. To unblock the lever push forward and lift the foot. Block the brake lever in case of parking or parking on sloping surface.

  • Page 13: Maintenance Procedures

    MAINTENANCE PROCEDURES WARNING ATTENTION! Before any adjustment and/or maintenance procedure always switch off the machine. ATTENTION! Disconnect the battery before starting any cleaning or maintenance procedure on the machine. CLEANING THE FILTER Once a week proceed with the cleaning of the filter operating as follows: 1.

  • Page 14: Maintenance Procedures

    MAINTENANCE PROCEDURES ADJUSTMENT OF SIDE BRUSH The regulation of the brush pressure on the floor can be made by adjusting the screw behind the brush arm itself: 1. Loosen the lock nut (1). 2. Rotate the register screw counter clockwise until the bristles rest on the floor by about 2 cm.

  • Page 15: The Central Broom Does Not Clean

    THE CENTRAL BROOM DOES NOT CLEAN 1. If the broom is worn or improperly positioned, adjust its position or if necessary have it replaced at your nearest COMAC S.p.A. service centre. 2. If the waste bin is full empty it.

  • Page 16: Brush Choice And Usage

    BRUSH CHOICE AND USAGE POLYPROPYLENE BRUSH (PPL) It is used on any type of floores and it has a good resistance to wearing and to hot water (not over 60 degrees). PPL is not hygroscopic and so it keeps its features, also working on wet surfaces. ABRASIVE BRUSH The bristles are charged with very aggressive abrasives.
