READ THE USE AND MAINTENANCE MANUAL

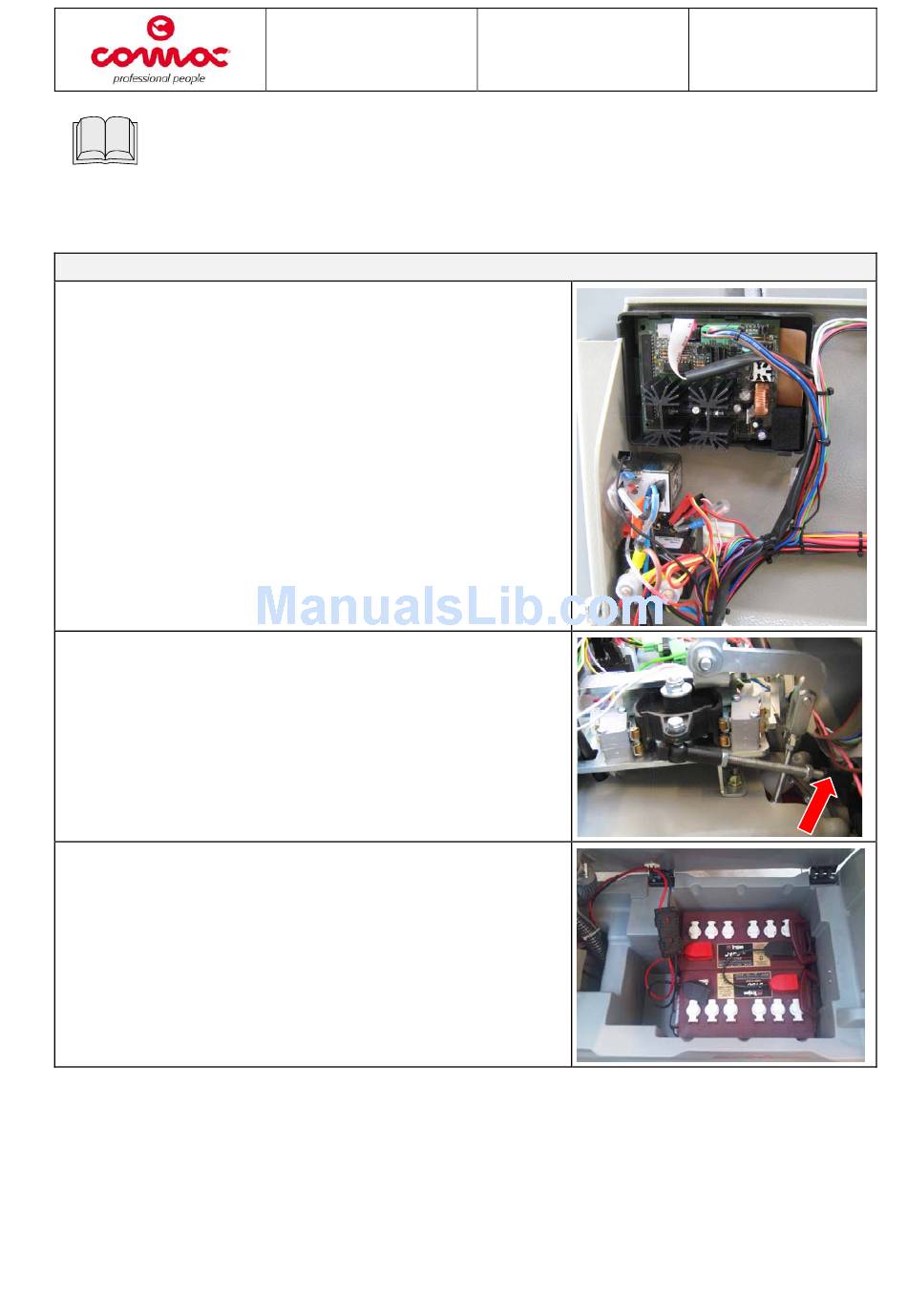

Electric System Testing
1. Disconnect the battery connector.
2. Check the functioning of the electric system switches,
motors, solenoid valve, contactors, power fuses and
thermal trip units.
3. Check the condition and tightening of all power cables:
contactors, fuses, motors, etc.
4. Check the functioning and condition of the potentiometer
and the base confirmation microswitches (water and brush
rotation) and working operation, and those for automatic
squeegee rise and descent (AUTOMATIC VERSION only).
5. Check the handlebars lever is centrally positioned and that
the threaded rod
card located beneath the instrument panel (if it does touch,
adjust it within the plastic joints.
6. Check the condition and connections of the battery poles on
the battery connector.
7. Reconnect the battery connector.
ADJUSTMENTS
AND
TESTING
does not touch the measuring device
SIMPLA 50B-BT
Doc.
SIMPLA 55BT
Issued
SIMPLA 65BT
Ver.
Page
SIMPLA 50BST
10021896
09/2010
AB
1 of 16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for COMAC SIMPLA 50B-BT
Summary of Contents for COMAC SIMPLA 50B-BT
- Page 1 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 1 of 16 SIMPLA 50BST READ THE USE AND MAINTENANCE MANUAL Electric System Testing 1. Disconnect the battery connector. 2. Check the functioning of the electric system switches, motors, solenoid valve, contactors, power fuses and thermal trip units.
- Page 2 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 2 of 16 SIMPLA 50BST 8. Check the functioning of the chopper. 9. If necessary, calibrate the chopper card as follows: • raise the machine (free traction wheels);...
-
Page 3: Green Led
SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 3 of 16 SIMPLA 50BST The dip switches are set as follows (DP1 and DP2 are the SW1 and DP3 and DP4 are SW2): SET-UP EXIDE SONNENSCHEIN gel... - Page 4 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 4 of 16 SIMPLA 50BST Check the functioning of the “service menu”. Remember that to access it, you must keep the button pressed while starting up the machine (when you turn the key).
-
Page 5: Adjusting The Brakes
SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 5 of 16 SIMPLA 50BST Water System Testing 1. Check the solution filter just underneath the tank cap is clean and functioning. 2. Check the cleanliness and seal of the... - Page 6 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 6 of 16 SIMPLA 50BST 2. Adjust the pads on the wheels, so that when the pin is inserted on the handbrake lever, the machine is blocked.
- Page 7 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 7 of 16 SIMPLA 50BST 7. Adjusting the suction microswitch (AUTOMATIC MACHINE VERSION): adjust the upper microswitch so that when the cam is • turned, the switch closes, leaving the squeegee 4-5cm...
- Page 8 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 8 of 16 SIMPLA 50BST - AUTOMATIC VERSION MACHINE - 5. Ensure that the base microswitch block the operation of the brushes when the base is lifted a few centimetres from the ground.
- Page 9 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 9 of 16 SIMPLA 50BST 13. Check the M8 screw that fixes the arm to the third point allows the longitudinal movement of the base, so this can adjust itself to the specific floor.
- Page 10 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 10 of 16 SIMPLA 50BST 4. Adjust the pressure relief spring by tightening the M6 screw on the tie rod until 5-6 mm of thread remain, so as to obtain the correct pressure on the base.
- Page 11 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 11 of 16 SIMPLA 50BST 4. Ensure that the brush can be easily removed and that there is sufficient space for its passage. If the brushes are not clean: lift the base;...
- Page 12 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 12 of 16 SIMPLA 50BST 7. Traction adjustment: adjust the M8 screw so as to distribute the weight of the motor to the rear of the base.
- Page 13 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 13 of 16 SIMPLA 50BST Testing the Detergent Dosing System 1. Check the contacts and the detergent control card seat are clean. 2. Check the set-up of the two...
- Page 14 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 14 of 16 SIMPLA 50BST 8. Check the solution emerges due to gravity only (i.e. the dosing system is not activated) when the tap lever is in the position shown in the photo (central).
- Page 15 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 15 of 16 SIMPLA 50BST 3. When the squeegee is up, check it does not interfere with the base movement pedal. If it does, adjust the M6 nut in the spring connected to the squeegee lifting cable.
- Page 16 SIMPLA 50B-BT Doc. 10021896 ADJUSTMENTS SIMPLA 55BT Issued 09/2010 SIMPLA 65BT Ver. TESTING Page 16 of 16 SIMPLA 50BST Testing machine operation Check the functioning of the switches and indicator lights. Check the functioning of the speed regulator. Check the functioning of the base.
