5.13.1 Selection and adjustment

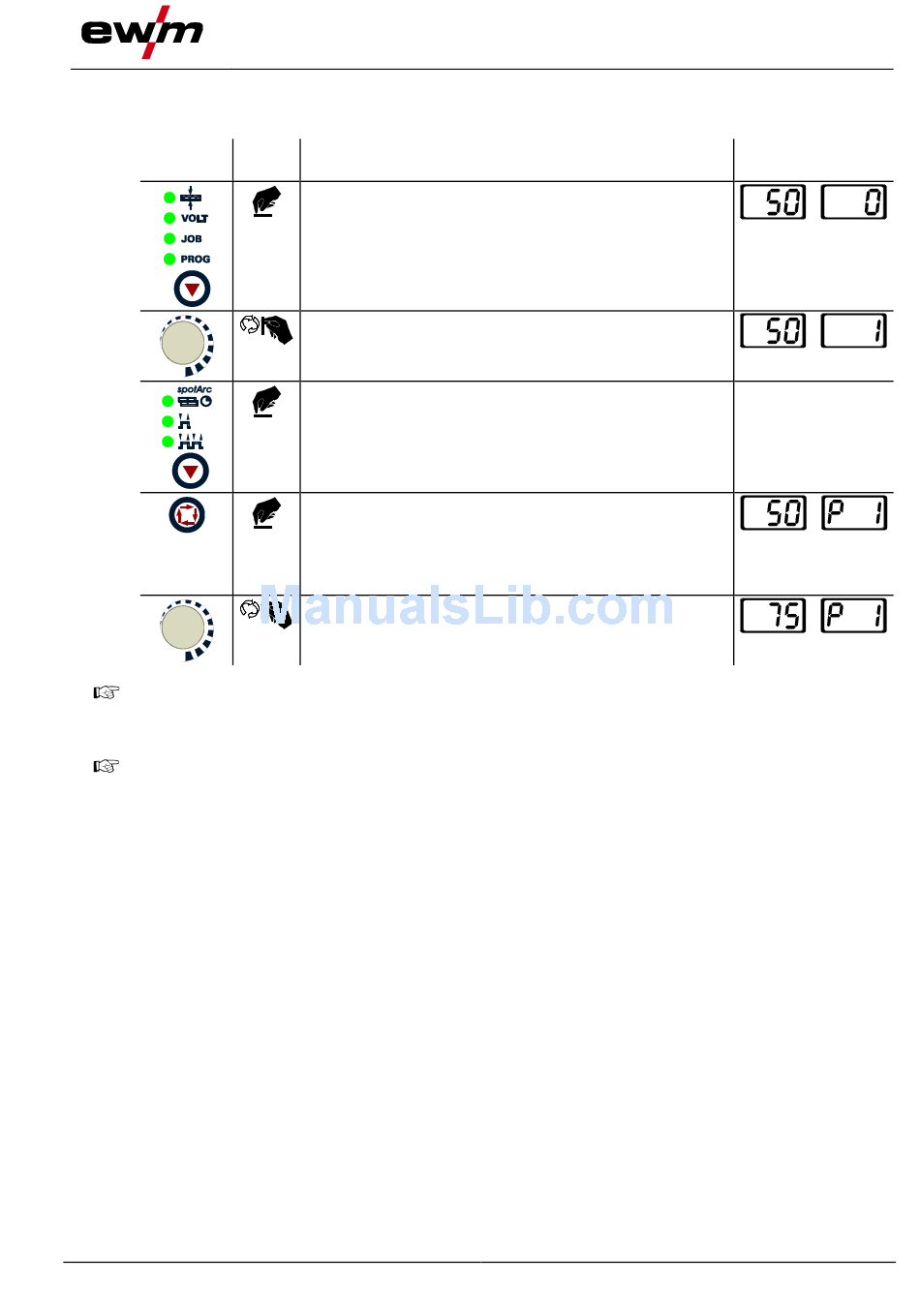

Setting welding programs using the welding machine control
Operating Action
element
When connecting a potentiometer torch or up/down torch or operating a standard torch in
up/down mode, the program changeover to the welding machine control is blocked!

5.13.2 Specifying max. no. of accessible programs

This function can be used to specify the maximum number of programs which can be called up
(only applies to the welding torch). According to the factory setting, all 16 programs can be called
up. If necessary these can be limited to a specific number.
To limit the number of programs, the welding current needs to be set to 0A for the next, unused
program. For example, if only programs 0 to 3 are being used, the welding current is set to 0A in
program 4. A maximum of programs 0 to 3 can then be called up on the welding torch.
099-000118-EW501
22.06.2015
Result
Press button until signal light
PROG comes on.
Select or retrieve program no., e.g. no. 1
Set operating mode (can be specified separately for each
program).
Press until a "P" for program no. is displayed in the left-
hand section of the right-hand display.
Any parameter can be selected and changed in the
function sequence. The changes are transferred to all
other programs in the equivalent way.
Set welding current for the corresponding program (e.g.:
75 A in program 1).
Design and function
Welding programs
Display
Welding current
(left) and program
no. (right)
No change
