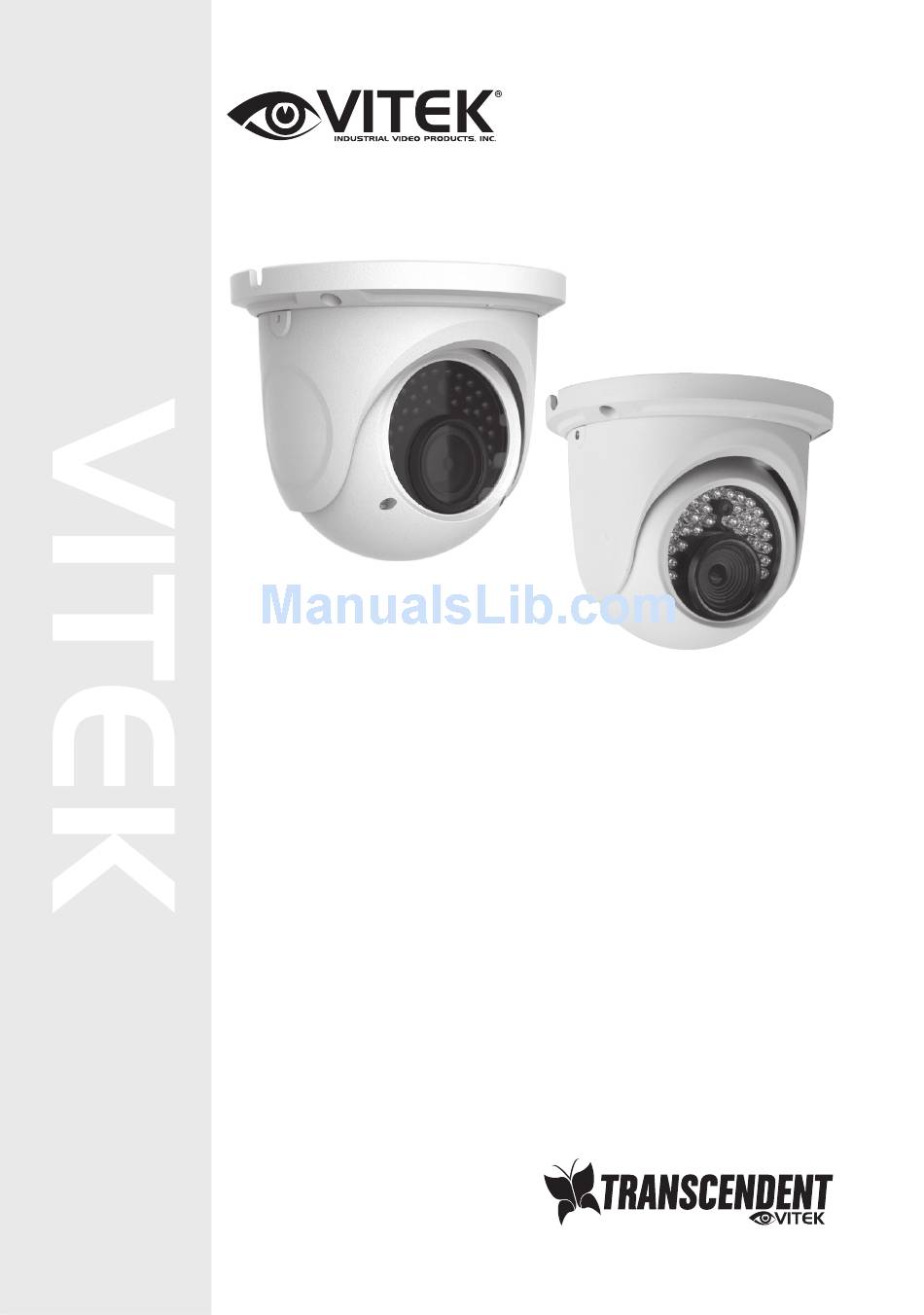

QUICK START GUIDE
FEATURES
• 1/3" 3.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 1920x1080 (2MP) / 15fps live
view @ 2048x1536 (3MP)
• 2.8~12mm Varifocal Lens (VTC-TNT30R3V) / 3.6mm
Fixed Iris Lens (VTC-TNT30R3F)
• 30 Infrared LED's with 100' IR Range
• Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• On Board Motion Detection
• H.264/MJPEG Dual Streaming
• Onvif Compliance
• Remote Viewing via CMS, Web Browser, and iOS & Android
Apps
• Minimal Latency with up to 10 simultaneous user
connections
• IP66 Weather Resistance
• 12VDC & PoE (Power over Ethernet) Operation
*Refer to included CD for complete detailed User's Manual.
VTC-TNT30R3F
VTC-TNT30R3V
3.0 Megapixel Indoor/Outdoor
WDR IP IR Turret Cameras
Advertisement
Table of Contents
Related Manuals for Vitek VTC-TNT30R3F
Summary of Contents for Vitek VTC-TNT30R3F
-
Page 1: Quick Start Guide
• Up to 30fps live view @ 1920x1080 (2MP) / 15fps live view @ 2048x1536 (3MP) • 2.8~12mm Varifocal Lens (VTC-TNT30R3V) / 3.6mm Fixed Iris Lens (VTC-TNT30R3F) • 30 Infrared LED’s with 100’ IR Range • Wide Dynamic Range (WDR) •... -
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Product Manual CD Screws Waterproof Cap Hex Wrench Overview This camera series supports both fixed and varifocal lenses. Please note that the zoom and focus features mentioned below are not features of the fixed lens version. - Page 3 Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. 12VDC Optional 12VDC Power Connection.
- Page 4 Installation Before start, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the...
- Page 5 Installation 4. Tighten the lock screws to secure the viewing angle adjustments. 5. Adjust the Focus and Zoom screws to achieve a clear image (if your camera has a fixed lens, please skip this step). 6. Carefully remove the protective film from the lens to complete the installation.
-
Page 6: Lan Configuration
LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the cables through the mounting base) according to the drill template Accessing the Camera Using the IP-Tool... - Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
- Page 8 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatical- 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
