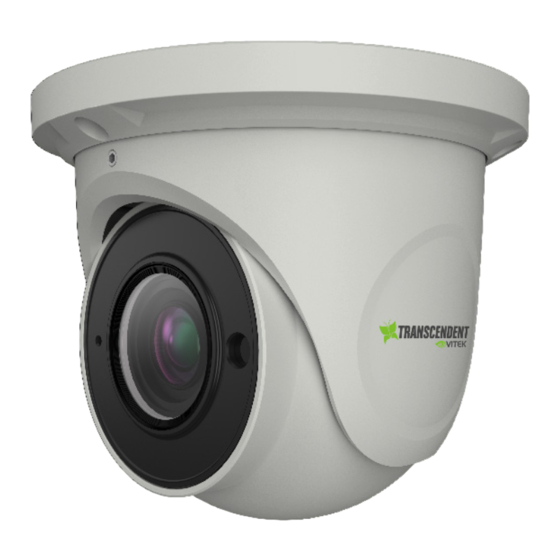

Vitek VTC-TNT4RMA3 Quick Start Manual

4 megapixel indoor/outdoor wdr ip motorized turret camera
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

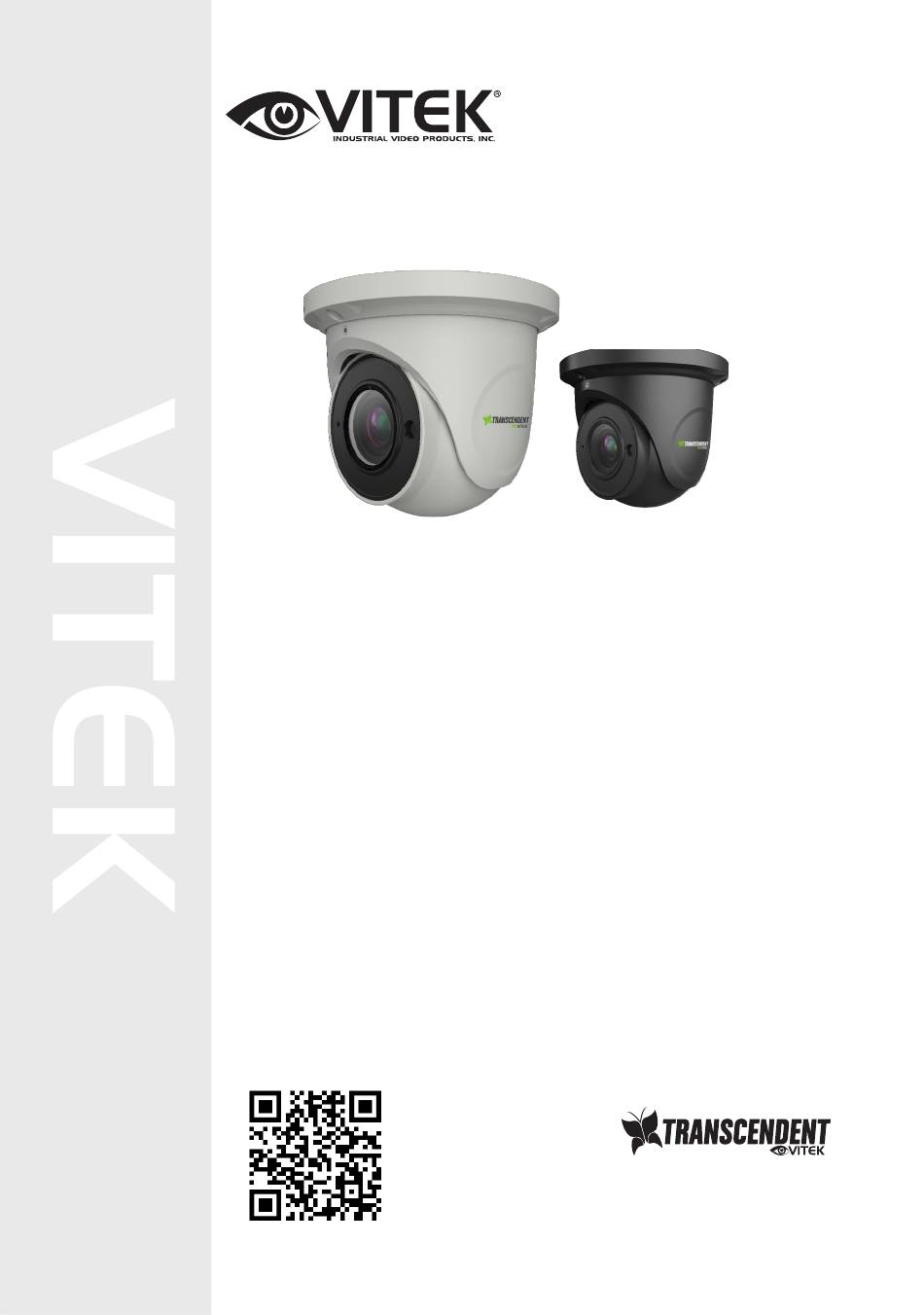

QUICK START GUIDE
FEATURES:
• 1/3" 4.0 Megapixel CMOS Image Sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8~12mm Motorized Varifocal Lens
• 2 Matrix IRs (up to 165' IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Abnormal Video, Face Detection, Regional Intrusion Detection,
Regional Entrance / Exiting Detection, Line Crossing, Target
Counting Detection
• H.265, H.264 & MJPEG Compression
• Built-in Mic*
• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (128GB)
• IP67 Weather Resistance
• Optional Mounts: Junction Boxes (VT-TJB01, VT-TJB021)
Wall Mounts (VT-TWM03, VT-TWMT-4)
Pendant Mounts (VT-TPDM-2 [use w/ VT-TJB021] VT-TPDM-3 [use
with VT-TJB021])
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTC-TNT4RFA3B)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.
VTC-TNT4RMA3
4 MegaPixel Indoor/Outdoor
WDR IP Motorized Turret Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series

Advertisement

Table of Contents
loading

Related Manuals for Vitek VTC-TNT4RMA3

Summary of Contents for Vitek VTC-TNT4RMA3

  • Page 1 VTC-TNT4RMA3 Transcendent Series 4 MegaPixel Indoor/Outdoor WDR IP Motorized Turret Camera QUICK START GUIDE FEATURES: • 1/3” 4.0 Megapixel CMOS Image Sensor • Up to 30fps live view @ 4 MegaPixel (2592x1520) • 2.8~12mm Motorized Varifocal Lens • 2 Matrix IRs (up to 165’ IR Range) •...

  • Page 2: Components And Accessories

    Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Waterproof Cap Hex Wrench Overview Ethernet connector Audio input connector Power connector Mounting base Fixed / Lock Screw Microphone Micro SD card slot Reset Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor.

  • Page 3: Installation

    Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
  • Page 4 Fig. 2 Rubber Plug 3. Loosen the lock screw, then adjust the camera to obtain the optimium viewing angle. Confirm the correct viewing angle with a monitor. Next, tighten the lock screw to secure the viewing angle adjustments. Fixed Screw Pan: 0˚~360˚...

  • Page 5: Lan Configuration

    LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2.
  • Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.

  • Page 7: Wan Configuration

    2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.

  • Page 8: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
