KIT-ECS-650-PND4-BLK | KIT-ECS-650-PND4-WHT | KIT-ECS-650-PND6-BLK | KIT-ECS-650-PND6-WHT
WELCOME TO EPISODE
Thank you for purchasing a great product from Episode
one of the best sounding speaker lines available today.
We appreciate your purchase and are committed to
providing the highest quality products possible.
The ECS-650-PND series speaker line is a superb
choice for 70V/100V music distributed-line systems, and
can even be set to bypass the transformer if you need an
8 ohm speaker in a pinch.
PACKAGE CONTENTS
• (1) ECS-650-PND4 or ECS-650-PND6 Loudspeaker
• (2) Hanging hardware kits
TOOLS REQUIRED
• #2 Phillips Screwdriver
• Small Flathead Screwdriver
• Wire Strippers
IMPORTANT INSTRUCTIONS AND CONSIDERATIONS FOR INSTALLATION
The installation methods should be in accordance with the applicable section of the National Electrical Code, ANSI/
NFPA 70, and/or the National Fire Alarm Code, ANSI/NFPA 72, as applicable. The wiring method and compartment
should not interfere with the operation of the speaker.
SPEAKER WIRING
Overview
In a 70V or 100V system, a speaker wire is run from the amplifier location to the first speaker location. A "loop out" is run
from the first speaker to the second speaker, the second speaker to the third speaker, etc. In 8 ohm (Low Impedance)
applications, a separate speaker wire must be run from the amplifier to each speaker location.
Recommended Wiring
• 70V/100V applications: 18 AWG, stranded, 2 conductor cable.
• 8 ohm (Low Impedance) applications: 16 or 14 AWG, stranded, 2 conductor cable.
© 2014 Episode
®
®
Episode
Commercial 650 Series Pendant Speaker
®
,
®

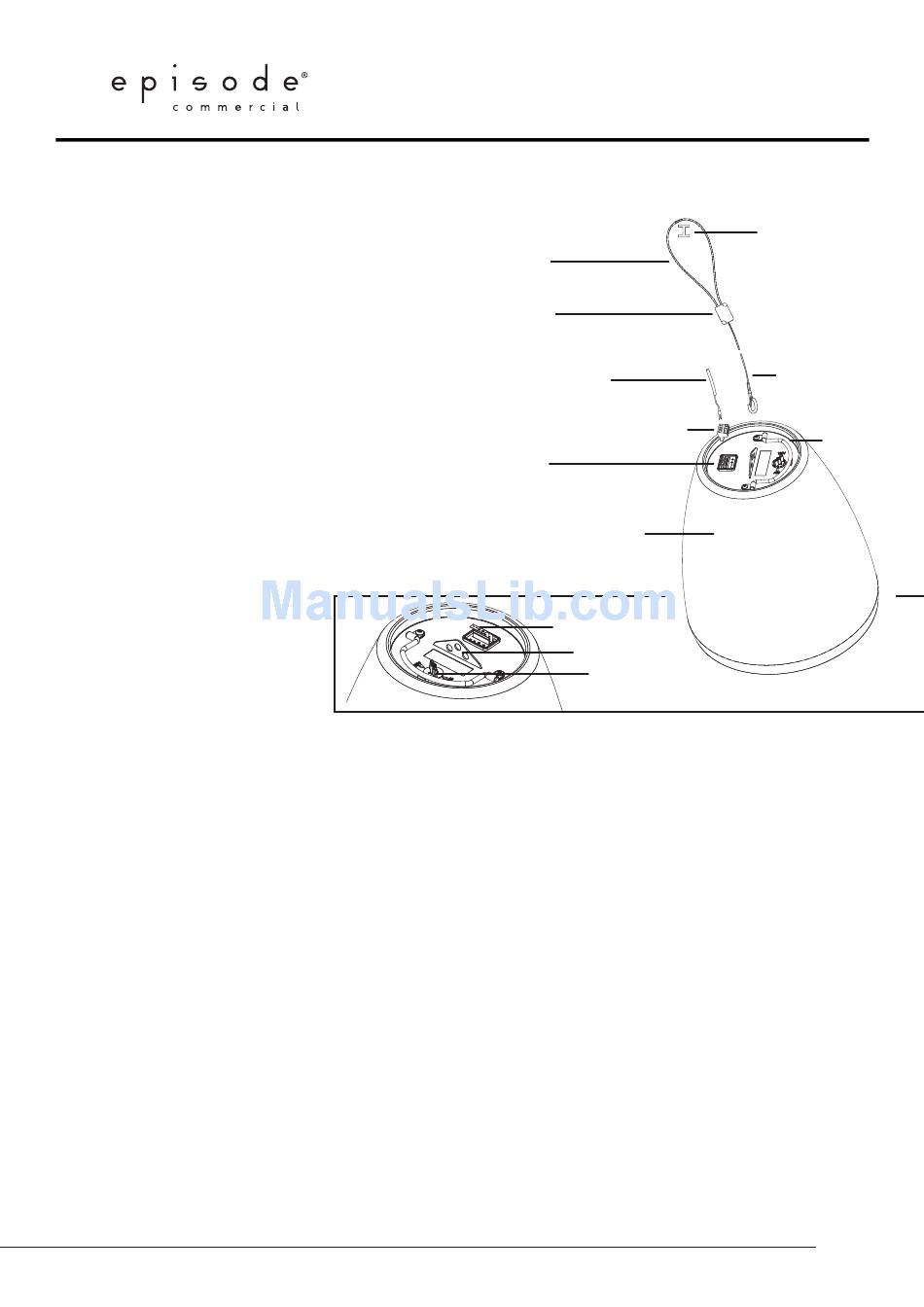

Cable
Clamp
Speaker Wire
Screw-terminal connector
Jack
Pendant Speaker
Tap Location
Jack
Hanger
ECS-650-PND Owner's Manual
OWNER'S MANUAL
Secure Anchor
Point
Tap Switch
Cable
with clip
Stow Away
Handle
pg. 1
