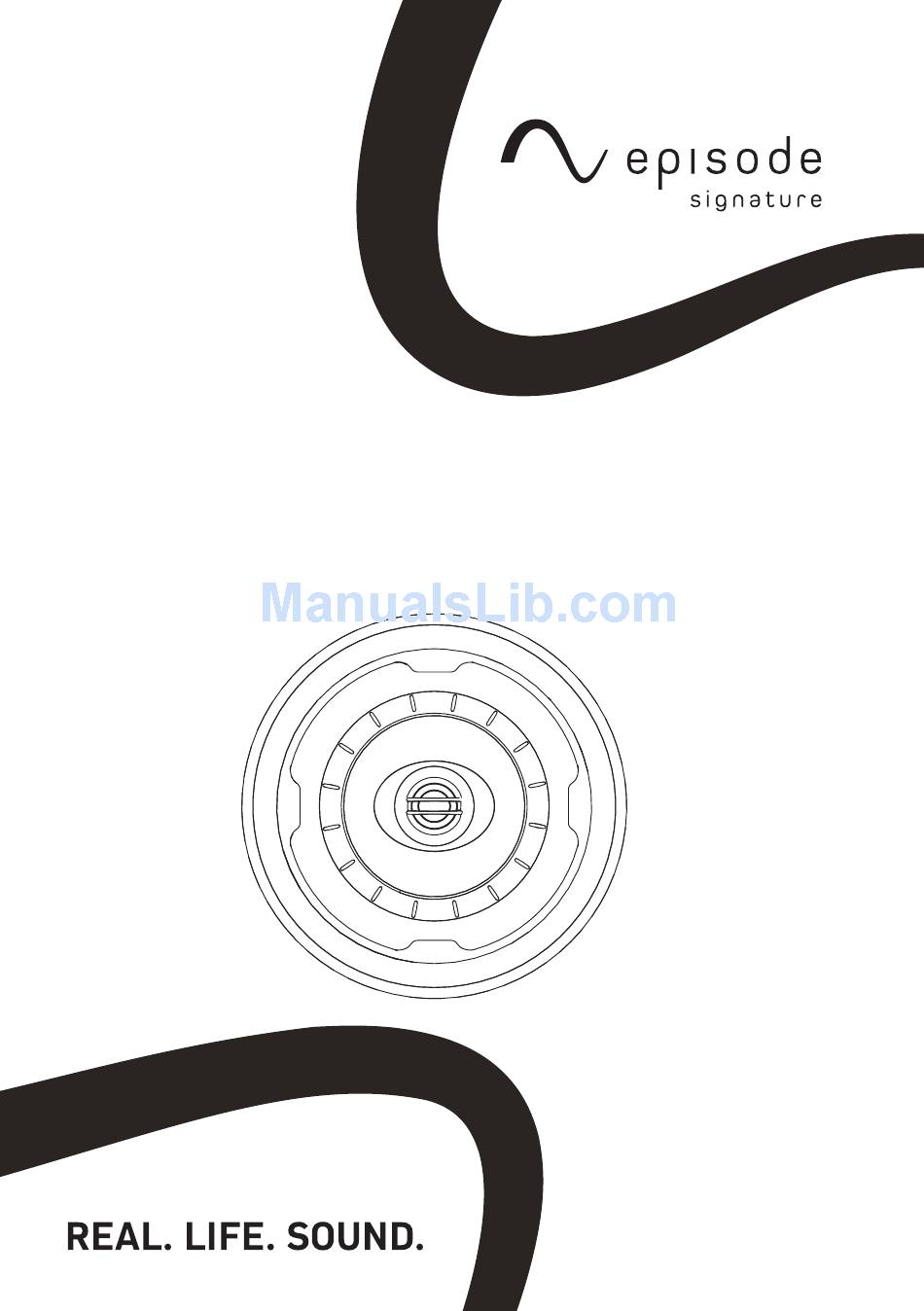

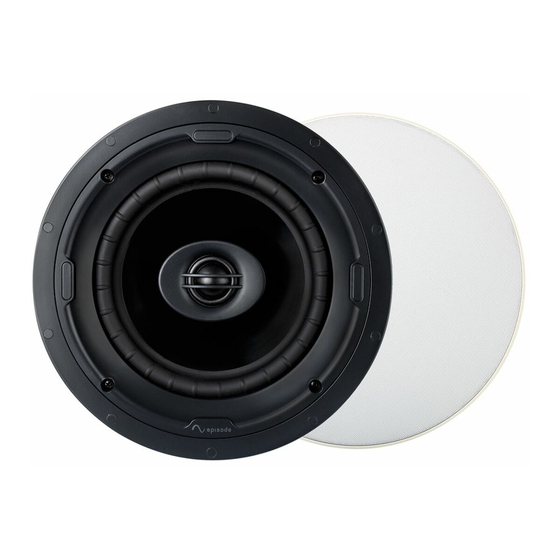

- Page 1 INSTALLATION MANUAL ARCHITECHTURAL SPEAKERS...
- Page 2 | 2 INTRODUCTION Thank you for purchasing Episode® speakers. Complete the Setup, Connect, Secure, and Fine Tune sections in this manual to ensure proper installation. Visit our website for design recommendations and speaker calculators. SETUP New Construction Install Episode speaker installations can be simplified by using Episode pre-construction brackets (sold separately).
- Page 3 *For POINT-6 models, refer to IC-8 cutout dimensions Model Cutout Dimension Mounting Depth Mounting Depth No Enclosure with Enclosure IW-6 11.7” x 7.6” 3.6” 3.8“ IW-8 13.7” x 9.0” 3.6” 3.8“ 14.4” x 7.6” 3.6” 3.8“ © 2015 Episode® © 2015 Episode®...
- Page 4 page | 4 CONNECT Strip the insulation on each conductor approximately ¼” and insert into the speaker terminals. Ensure no strands of wire protrude from the connectors. Observe proper polarity for each speaker to the amplifier (+ to + and – to – ). Refer to the dual voice coil speaker wiring configuration image below when wiring a dual voice coil speaker.
- Page 5 1. Turn each dog screw in a counter-clockwise direction until the dog is in its original parked TIGHTENED position. 2. Once the dogs are disengaged, the speaker is Spring easily removed from the ceiling or wall. PARKED © 2015 Episode® © 2015 Episode®...
-
Page 6: Fine Tune
page | 6 FINE TUNE Adjust the Tweeter Pull up on the perforated hole to remove the protective installation cover. There are four different types of tweeter mechanisms illustrated below that may be used depending on the type of speaker. Tilt and/or rotate to direct sound where you prefer. - Page 7 In rooms with varied arrangement, it is recommended to set to DI for out-of-phase output, which produces more reverberating sound. NOTE: Preference subject to opinion. Dialogue Enhancement Switch (LCR Only): Select Select ON for enhanced dialogue and clear speech. BASS TREBLE SURROUND DIALOGUE © 2015 Episode® © 2015 Episode®...
- Page 8 Return Authorization (RA) number. CONTACTING TECHNICAL SUPPORT As a thank you for purchasing Episode® speakers, direct technical support services are available via phone or e-mail. We encourage you to use this resource for any questions or concerns about our products.
