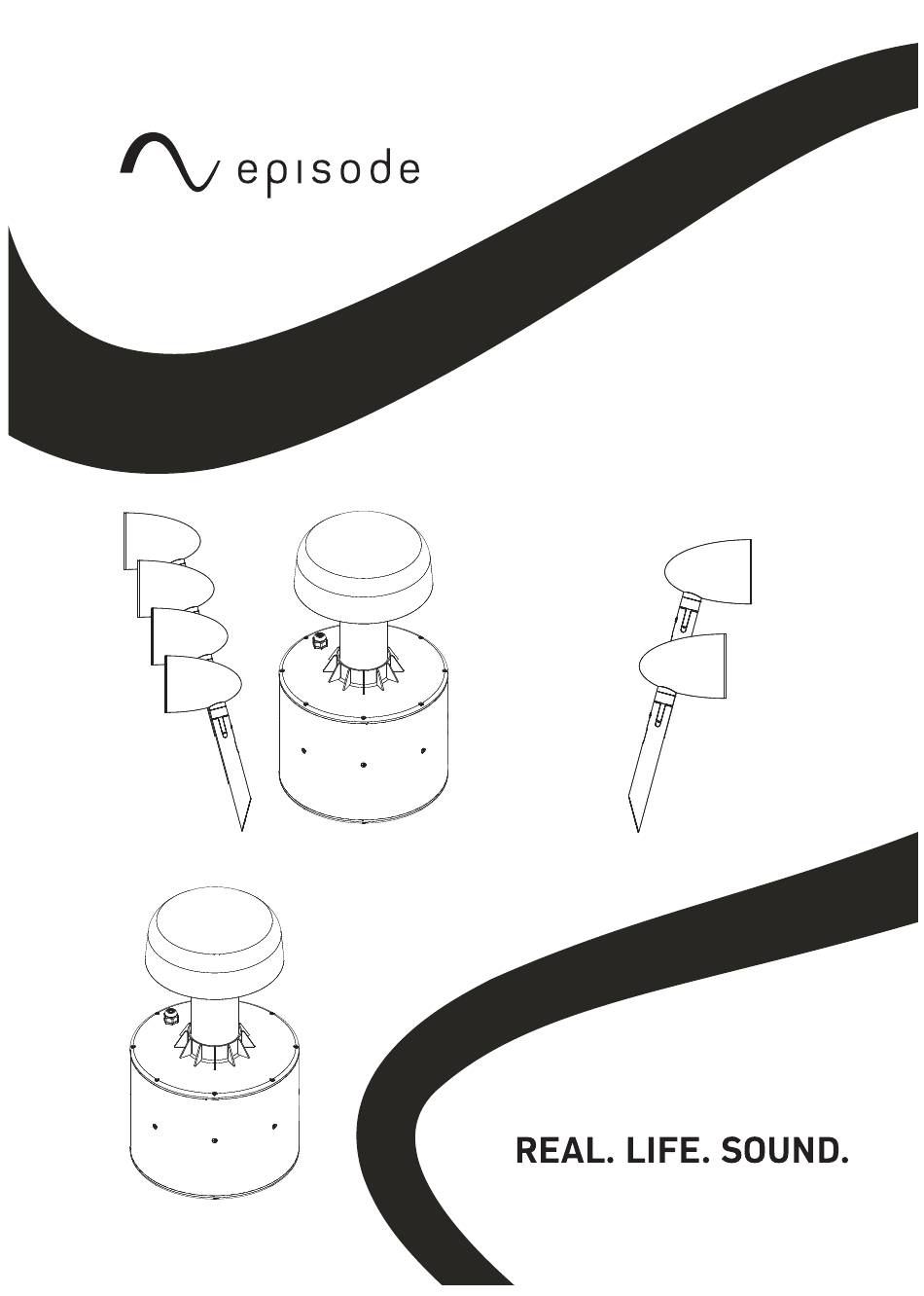

Page 1: Installation Manual
INSTALLATION MANUAL ES-TERRAIN-SYS-4.1 ES-TERRAIN-SAT-2.0 ES-TERRAIN-SUB ES-TERRAIN-SYS-4.1 ES-TERRAIN-SAT-2.0 ES-TERRAIN-SUB... - Page 2 page | 2 Support 866.838.5052...
-
Page 3: Package Contents
| 3 INTRODUCTION Welcome to Episode® Speakers. We appreciate your purchase and are committed to providing the highest-quality products possible. IMPORTANT INSTRUCTIONS AND CONSIDERATIONS Read and understand all instructions. Carefully plan the location and account for potential electrical, plumbing or other obstacles before beginning installation, . -
Page 4: Planning The Project
page | 4 PLANNING THE PROJECT The subwoofer is the heart of the outdoor system. Place it in a position that is as near to the center of the listening area as possible. To increase the perceived bass output, place the subwoofer next to a wall or other resonant/reflective surface. Satellite Subwoofer Audio Source... - Page 5 4 ohm 3.5 ohm 3 ohm NOTE: Following the wiring recommendations for The Terrain system creates a nominal impedance on a standard multichannel or 2 channel amplifier. The chart above outlines the expected impedance per the system configuration. © 2018 Episode®...
-
Page 6: Installation
page | 6 INSTALLATION Once you have laid out your plan and marked the positions on the ground, dig the hole for the subwoofer and set it in place. Couplers come attached to the satellites. Prior to installing the sattelite onto the stake, use the provided end cap and place it on top of each stake. -
Page 7: Wiring Diagram
Ensure your volume is turned to zero. Connect your music source, power the system, and test it. Once everything is working properly, fill all the holes and trenches. Wiring Diagram Audio Source Subwoofer Expanded System Satellites Audio Source Subwoofer Multi Channel Amp Expanded System Satellites © 2018 Episode®... -
Page 8: Troubleshooting
Green − Amplifier Outputs Note: Amplifier must be 4 ohm stable. TROUBLESHOOTING Episode speakers are designed to function trouble-free. Most problems that occur ® are due to simple issues. Refer to the list of fixes below, or contact Tech Support at 866.838.5052 if problems persist. -
Page 9: Specifications
HDPE enclosure Sat Crossover 125Hz 125Hz Frequency Color Brown Sat: Brown Coverage Area 3000 sq. ft. (8.1 system) Nominal 8 Ohm Impedance System Frequency 35Hz to 20kHz +/- 3dB Response Power RMS 100W Weight 35 lbs 3lbs © 2018 Episode®... -
Page 10: Product Dimensions
page | 10 PRODUCT DIMENSIONS 5.4" 7.6" 5.63" 17.83" Support 866.838.5052... -
Page 11: Limited Lifetime Warranty
WARRANTY Limited Lifetime Warranty Episode Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. - Page 12 © 2018 Episode® Rev: 181023-1625...
