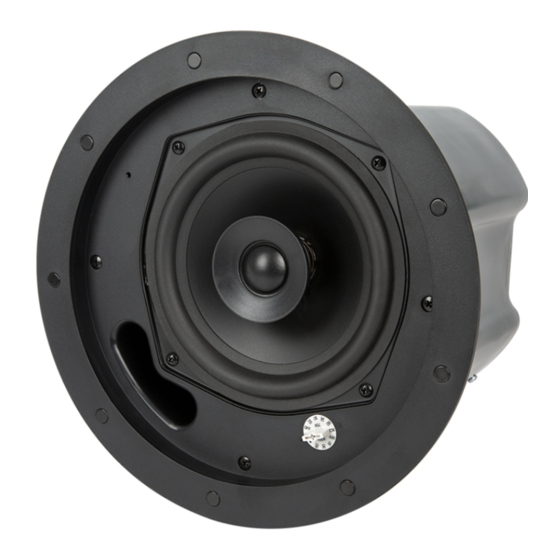

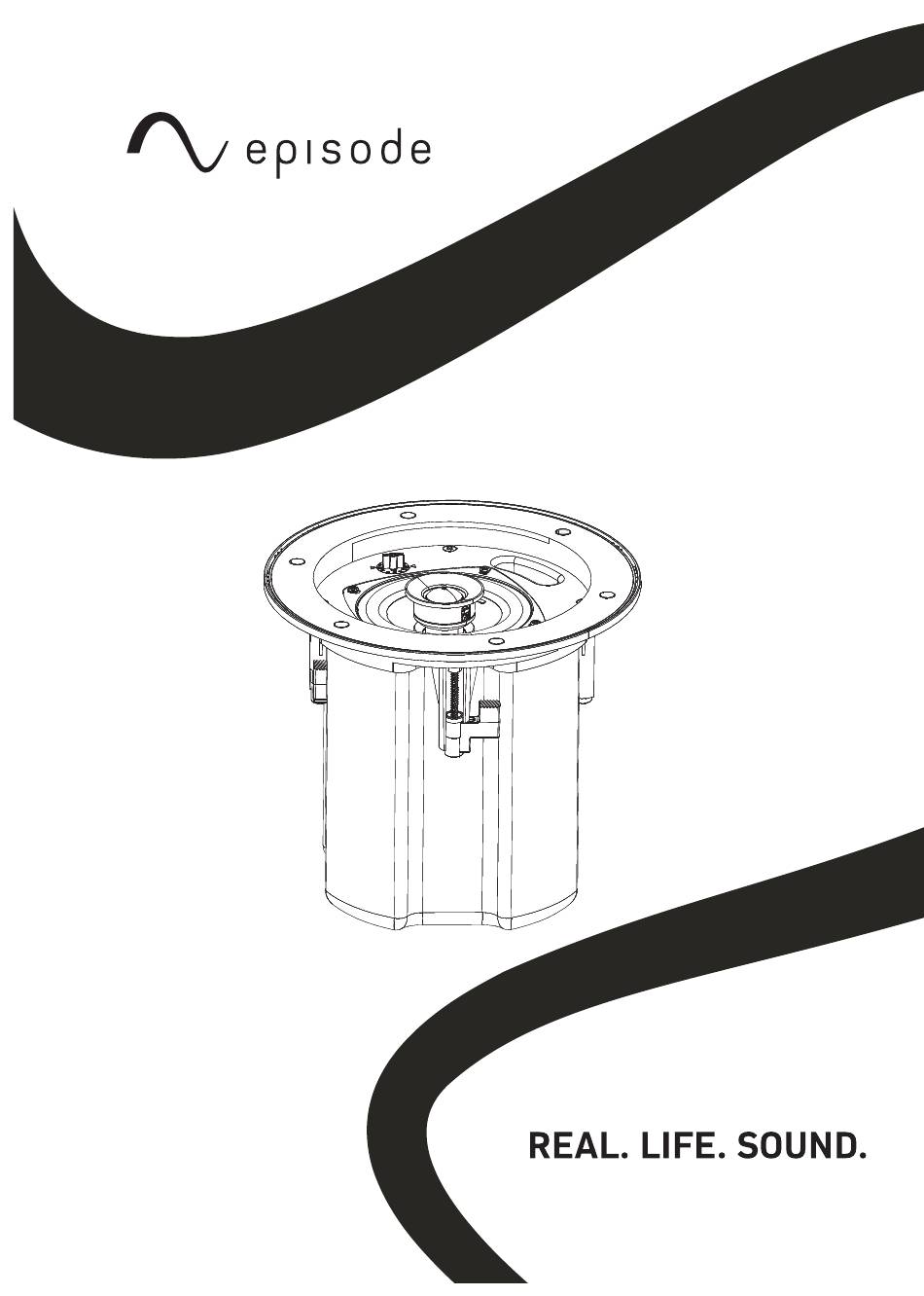

- Page 1 INSTALLATION MANUAL ECS-800-IC-4 ECS-800-IC-6 ECS-800-ICSUB-8...
- Page 2 page | 2 www.snapav.com Support 866.838.5052 www.snapav.com Support 866.838.5052...
-
Page 3: Speaker Wiring
| 3 WELCOME TO EPISODE Thank you for purchasing a great product from Episode®, one of the best sounding speaker lines available today. We appreciate your purchase and are committed to providing the highest quality products possible. The ECS-800-IC series speaker line is a superb choice for 70V/100V music distributed-line systems and can even be set to bypass the transformer if you need an 8 ohm speaker in a pinch. - Page 4 page | 4 Best Practices • In most cases, it is easiest to install a speaker system by pre-wiring and then installing the speakers. • Plan the locations of the speaker holes, volume control boxes, and the amplifier and be sure wiring can be routed everywhere necessary before cutting any holes.
-
Page 5: Speaker Installation
6. Insert the speaker into the opening. Tighten the four dog screws using a #2 Phillips Screwdriver. Note: Make sure the tile bridge stays centered and that Installation Stage © 2018 Episode®... - Page 6 page | 6 the mounting dogs clamp onto the ring. Be careful, over- tightening the screw can damage the ceiling tile and/or the speaker. 7. Set the speaker tap switch on the front of the speaker to the appropriate setting. Tip: If you aren’t sure of the tap settings needed for the speaker, leave the grille off so that settings can easily be adjusted using the rotary knob.
-
Page 7: Tap Setting
- 100V: 15w, 30w, 60w - 8 Ω Bypass 70Hz - 19kHz Frequency Response (-6dB): 87 dB Sensitivity -2.83 V / 1 Meter: 2.8 kHz Crossover Frequency: 8 lbs. each Weight: Perforated Steel Grille Grille Type: Cutout Dimensions 8.8" Diameter © 2018 Episode®... -
Page 8: Troubleshooting
11.4" Diameter TROUBLESHOOTING Episode® speakers are designed to function trouble-free. Most problems that occur are due to simple issues. If you have trouble, please check the list of simple fixes below. If the problem persists, contact Customer Service at 1.866.838.5052.
