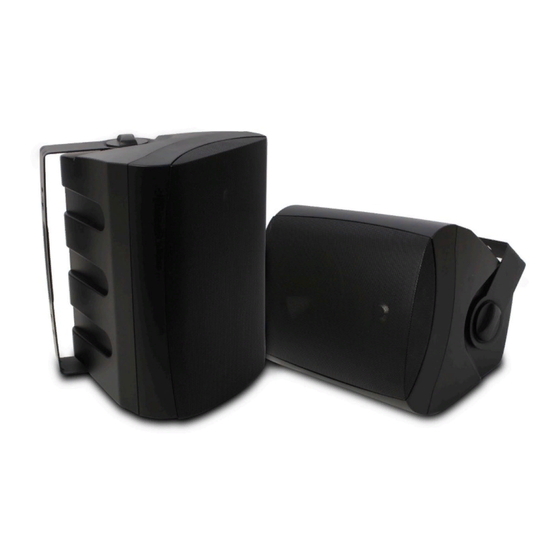

- Page 1 Episode Commercial ® Owners Manual Surface-Mount Loudspeakers...
- Page 3 ECS-AW70V Installation and Users Manual Welcome to Episode ® Thank you for purchasing a great product from one of the best-sounding speaker lines available today, Episode . We appreciate your purchase and are committed to ® providing the highest quality products possible.
- Page 4 U Bracket Installation The ECS-AW70V series loudspeakers are supplied with a U-shaped wall mounting bracket that can be installed vertically, horizontally or under eaves. Use screws, bolt or anchors (not included) that are capable of supporting at least 50 lbs. This will provide a minimum safety factor of 5x the product weight.
-
Page 5: Transformer Tap Settings
ECS-AW70V Installation and Users Manual Threaded Mounting Screw Installation The ECS-AW70V is equipped with (2) M6 threaded inserts located on the back of the speaker that can be used for other types of mounting brackets or for a security cable. - Page 6 ECS-AW70V Installation and Users Manual Verifying Phase When proper polarity is not maintained, the speakers play at the opposite ‘time’ from each other, or out of phase. The result is audio with lack of bass and vocals that sound thin or distant. If during or after calibrating your amplifier you suspect the sound is not...
- Page 7 ECS-AW70V Installation and Users Manual Warranty Lifetime Limited Lifetime Warranty Episode in-wall, in-ceiling and bookshelf Speakers have a Lifetime Limited Warranty. ® This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled.
- Page 8 © 2012 Episode 121217-1500...
