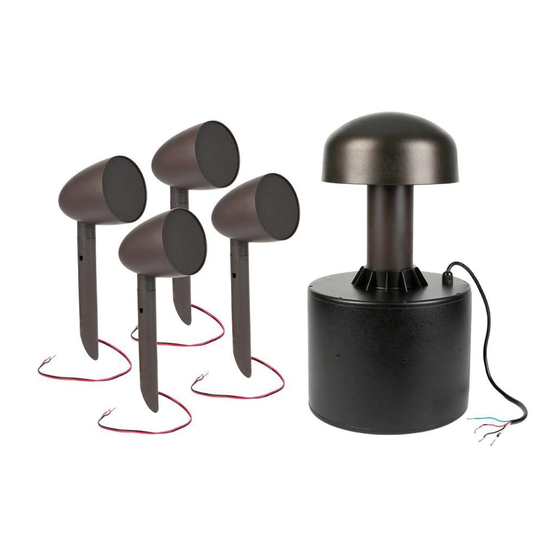

- Page 1 INSTALLATION MANUAL ES-TERRAIN-SYS-4.1 ES-TERRAIN-HSUB-4.1 ES-TERRAIN-SAT-2.0 ES-TERRAIN-HSUB ES-TERRAIN-SUB ES-TERRAIN-HSUB-4.1 ES-TERRAIN-SYS-4.1 ES-TERRAIN-HSUB ES-TERRAIN-SUB ES-TERRAIN-SAT-2.0...
- Page 2 page | 2...
- Page 3 | 3 INTRODUCTION Welcome to Episode® Speakers. We appreciate your purchase and are committed to providing the highest-quality products possible. IMPORTANT INSTRUCTIONS AND CONSIDERATIONS Read and understand all instructions. Carefully plan the location and account for potential electrical, plumbing or other obstacles before beginning installation.
-
Page 4: Planning The Project
page | 4 PLANNING THE PROJECT The subwoofer is the heart of the outdoor system. Place it in a position that is as near to the center of the listening area as possible. To increase the perceived bass output, place the subwoofer next to a wall or other resonant/reflective surface. Satellite Subwoofer Audio Source... - Page 5 page | 5 Speaker Wire Recommendations We recommend using high-quality stranded speaker wire. Connect the left and right wires from the AV receiver or amplifier directly to the corresponding left and right binding posts on the speaker. Use burial-rated wire for all installations. For maximum performance: •...
-
Page 6: Installation
page | 6 INSTALLATION Once you have laid out your plan and marked the positions on the ground, dig the hole for the subwoofer and set it in place. Couplers come attached to the satellites. Prior to installing the sattelite onto the stake, use the provided end cap and place it on top of each stake. - Page 7 page | 7 From Amp or To Next Speaker (if + − − Previous Speaker not Last Speaker) Burial Subwoofer The subwoofer has four input connections. Using the wire nuts, connect both left and right channels to the subwoofer, making sure positive and negative connections are properly made.
- Page 8 page | 8 negative connections are properly made. Place the Hardscape subwoofer over the base plate and secure it with the four provided screws. Plug all four holes with the provided rubber plug covers. Continue down the line and connect the rest of the speakers, then connect the wires to the amplifier.
- Page 9 page | 9 Other Uses for ES-TERRAIN Subwoofers These DVC subwoofers can be paired with ES-AW-500 Series speakers when wired in the configuration shown below with a 4-ohm-stable amplifier. Burial Subwoofer Red + White+ Black − Green − Amplifier Outputs Hardscape Subwoofer Red + White+...
-
Page 10: Troubleshooting
| 10 TROUBLESHOOTING Episode speakers are designed to function trouble-free. Most problems that occur are due to simple issues. Refer to the list of fixes below, or contact Tech Support at 866.838.5052 if problems persist. No Sound • Verify that there is audio coming from the selected source. Select another source, if necessary to verify. -
Page 11: Specifications
| 11 SPECIFICATIONS Product ES-TERRAIN-SYS-4.1 ES-TERRAIN-HSUB-4.1 Package Contents 4 x 4” Satellite Speakers 4 x 4” Satellite Speakers 1 x 8” Subwoofer 1 x 8” Subwoofer Height Sat: 452.88 mm (17.83”) w/ Sat: 452.88 mm (17.83”) w/ stake. stake. - Page 12 page | 12 Product ES-TERRAIN-SAT-2.0 ES-TERRAIN-HSUB ES-TERRAIN-SUB Package Contents 2 x 4” Satellite 1 x 8” Subwoofer 1 x 8” Subwoofer Speakers Height Sat: 452.88 mm Sub: 302.26 mm Sub: 566.42 mm (17.8”) w/stake. (11.9”) (22.3”) 143 mm (5.6”) w/o stake..
-
Page 13: Product Dimensions
page | 13 PRODUCT DIMENSIONS Satellite Speakers 137.16 mm (5.4)" 193.04 mm (7.6") 143 mm (5.6") 452.88 mm (17.8") Burial Subwoofer 314.96 mm (12.4") 566.42 mm (22.3") -
Page 14: Contacting Technical Support
page | 14 Hardscape Subwoofer 403.86 mm (15.9") 327.66 mm (12.9") 302.26 mm (11.9") WARRANTY & REGULATORY Find details of the product’s Limited Warranty and other safety, patent, and legal snapone.com/legal resources at or request a paper copy from Customer Service 866.424.4489 CONTACTING TECHNICAL SUPPORT tech.control4.com/s/contactsupport... - Page 15 page | 15...
- Page 16 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, Episode, OvrC, Strong, SunBriteTV, Triad, and WattBox are also registered trademarks or trademarks of Snap One, LLC.
