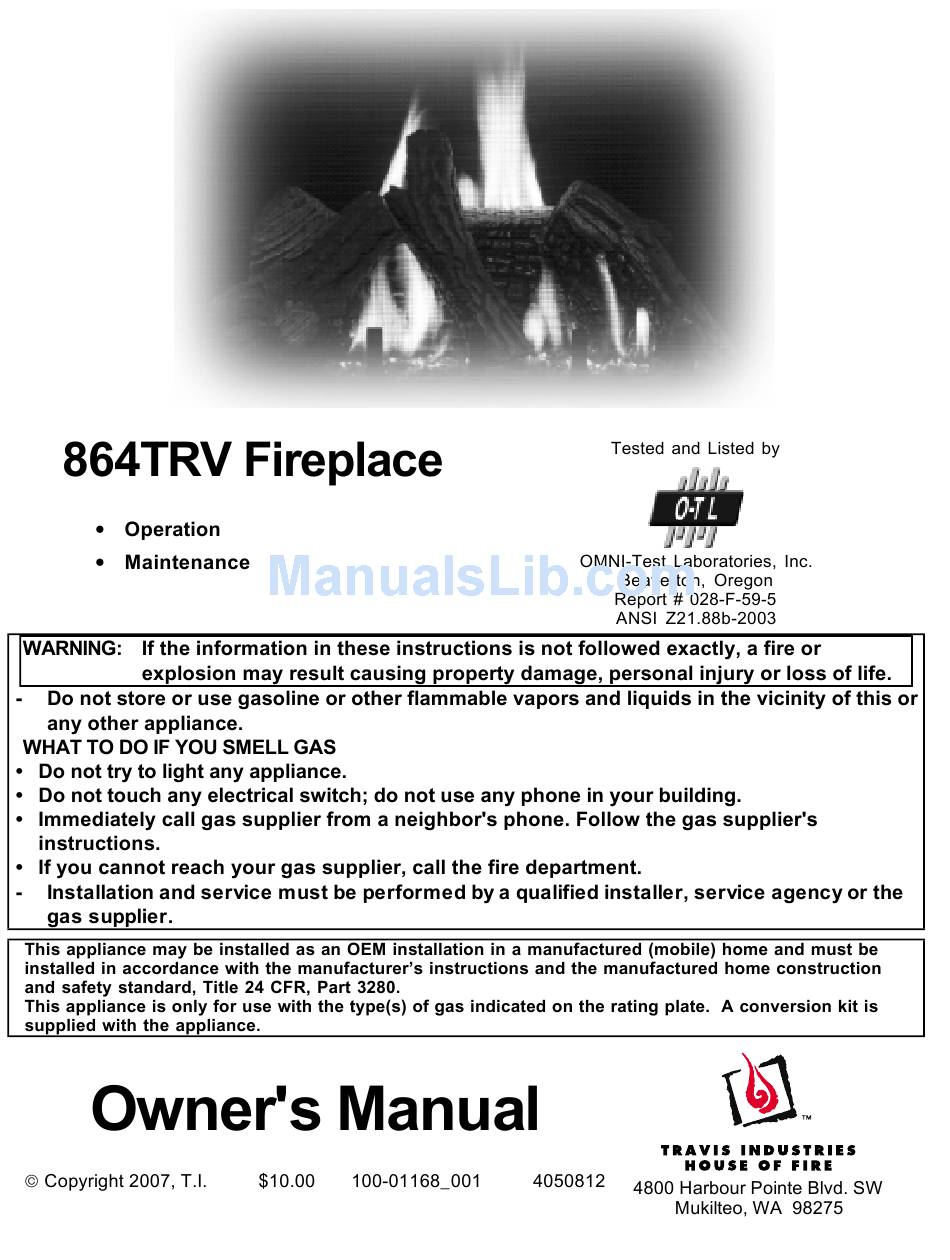

Travis Industries 864TRV Owner's Manual

Lopi owner's manual fireplace 864trv
Hide thumbs Also See for 864TRV:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Operation & Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 864TRV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Travis Industries 864TRV

Summary of Contents for Travis Industries 864TRV

  • Page 2 Introduction Important Information Installation Warnings...
  • Page 3 Table of Contents Features Heating Specifications...
  • Page 4 Look for this label: For LPG only | Pout 11” W.C. If the label is present, the heater is equipped for LP (propane). If the label is absent, the heater is equipped for NG (natural gas).
  • Page 5 This Manual...

  • Page 6: Before You Begin

    Before You Begin Location of Controls Optional Blower Control Optional Accent Light Pilot Igniter ON/OFF Switch Gas Control Valve Comfort Control Lift the control cover up and swing it forward to access the controls. The Pilot Flame can be found under the right side log Flame Adjust Knob Gas Control Knob An instruction card for operating...

  • Page 7: Starting The Pilot Flame

    Starting The Pilot Flame 5 minutes PILOT IGNITER 30 seconds...

  • Page 8: Starting The Fireplace For The First Time

    Starting the Fireplace for the First Time Turning the Fireplace On and Off After the pilot has been started... A switch is provided behind A wall switch may be the control cover (below used to turn the the firebox). fireplace on and off. Adjusting the Flame Height Flame Height Adjustment Knob...

  • Page 9: Adjusting The Optional Blower Speed

    Adjusting the Optional Blower Speed Turn the dial all the way counter-clockwise until it clicks off. Normal Operating Sounds Blower Snap Disk This part can produce a clicking sound as it turns the blower on and off. Gas Control Valve As the gas control valve is turned on and off you will hear a dull clicking sound.

  • Page 10: Maintaining Your Fireplace's Appearance

    Maintaining Your Fireplace's Appearance Yearly Service Procedure Check the walls and ceiling of the firebox for deterioration. Check the burner holes. Make sure the burners are not warped or damaged. Before Disassembly - Check the pilot flame. It should touch the thermocouple and thermopile. Thermopile Pilot Hood Thermocouple...

  • Page 11: Grill Installation And Removal

    Grill Installation and Removal Upper Grill Installation Hold the grill at an angle and insert the lower slot over the bushing on the fireplace (both sides). You may need press on the grill to get the tab over the bushing (this prevents the grill from accidentally falling off).

  • Page 12: Face Installation And Removal

    Face Installation and Removal Phillips Screwdriver Four screws hold the face in place. The screws are accessed through the grills on the face.

  • Page 13: Glass Frame Removal And Installation

    Glass Frame Removal and Installation Based upon the face being used, either: (a) swing the access door down and remove the top grill, (b) remove the face (unscrew or lift off - see the instructions included with the face for details). Open the six latches holding the glass frame in place (start with the bottom three) - follow the directions shown to the right.
  • Page 14 Glass Frame Removal and Installation (continued) The latch can come loose from the latch assembly. This occurs only when it is rotated. Follow the directions below to re-install the latch if it comes loose. Hold the latch at an angle and insert it into the slot on the glass frame anchor. Latch Glass Frame Anchor...

  • Page 15: Log Set Installation

    Log Set Installation...

  • Page 20: Glass Cleaning

    Glass Cleaning The glass may be cleaned with a non- abrasive cleaner. To clean the inside of the glass, simply remove the glass place it on a non-scratching surface, and clean the inside surface. If the outside surface of the glass frame requires cleaning, follow the directions below to remove the outer glass frame and screen.

  • Page 21: Troubleshooting Table

    Troubleshooting Table...

  • Page 22: How This Fireplace Works

    How this Fireplace Works When heated, the thermopile generates electricity (a very small amount measured in "Millivolts"). Pilot Flame The pilot flame is a time-proven component that eliminates the possibility of gas buildup inside the firebox. Thermocouple The thermocouple generates a small amount of electricity.

  • Page 23: Wiring Diagram

    Wiring Diagram On/Off Switch (black) Power In Common Molex (white) Connector Ground (green) Optional Blowers Gas Control Valve Optional Regulator Solenoid Replacement Parts List Thermocouple Thermopile Brown Copper Co-Axial Wire White Optional Thermostat Black White Green Ground (attached to stove) White Black Brown...
  • Page 24 Check with your dealer in advance for any costs to you when arranging a warranty call. Mileage or service charges are not covered by this warranty. This charge can vary from store to store. Exclusions Exclusions Exclusions Adjustable Air Restrictor, Pressure Relief Mechanisms, Barometric Control Mechanism (for models with Remote Heat Ducts), Glass Attachment Mechanism...
  • Page 25 Accessories...
