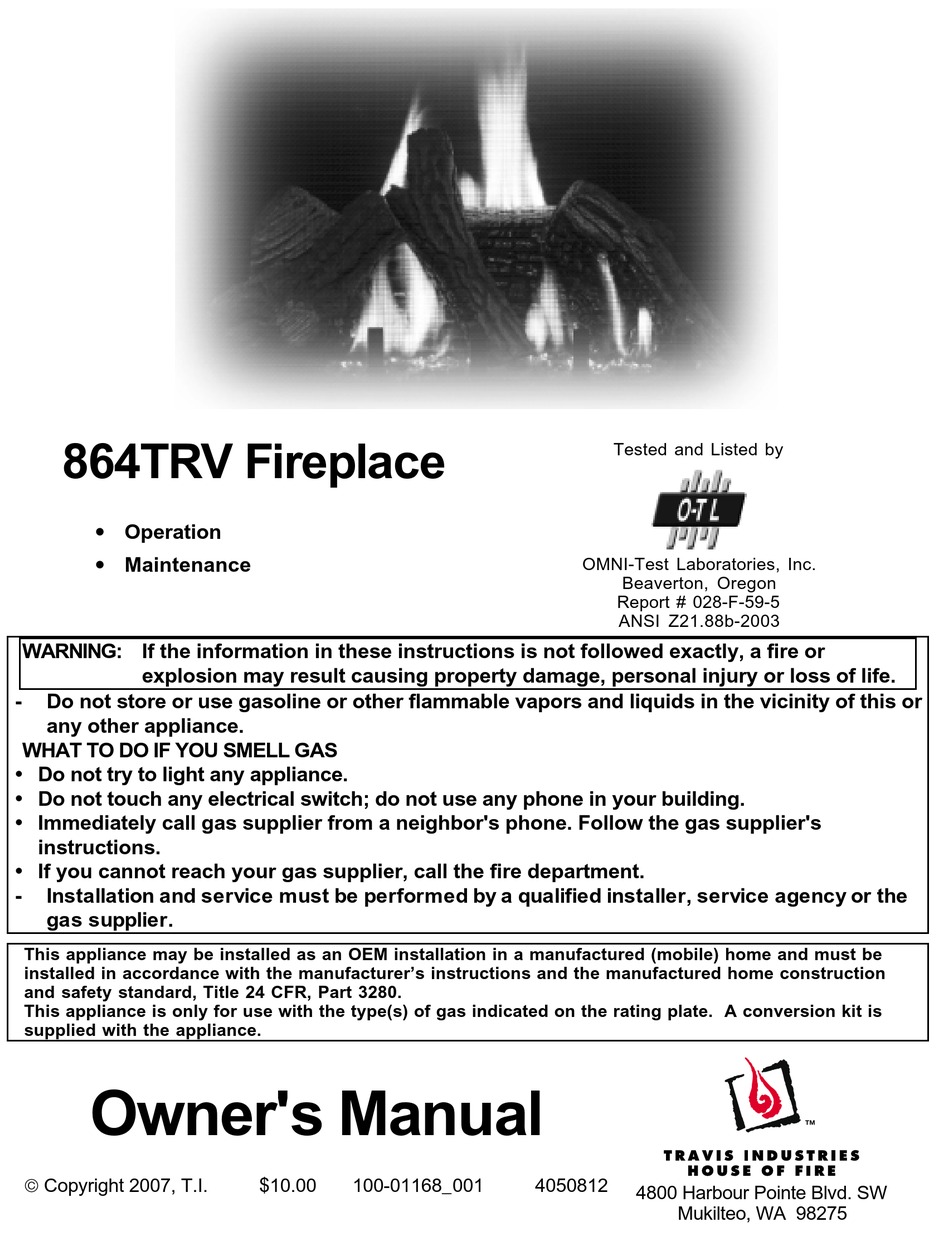

864TRV Fireplace
• Operation
• Maintenance
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be
installed in accordance with the manufacturer's instructions and the manufactured home construction
and safety standard, Title 24 CFR, Part 3280.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Owner's Manual
Copyright 2007, T.I.
$10.00
100-01168_001
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028-F-59-5
ANSI Z21.88b-2003
4050812
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries 864TRV
Summary of Contents for Travis Industries 864TRV
- Page 1 Tested and Listed by 864TRV Fireplace • Operation • Maintenance OMNI-Test Laboratories, Inc. Beaverton, Oregon Report # 028-F-59-5 ANSI Z21.88b-2003 WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Introduction
Introduction Introduction We welcome you as a new owner of a 864TRV gas fireplace. This manual details operation and maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference. -
Page 3: Table Of Contents
AFUE (Annual Fuel Utilization Efficiency) 68.3 % 69.4 % Heating capacity will vary with floor plan, insulation, and outside temperature. Efficiency rating is a product thermal efficiency rating determined under continuous operation independent of installed system. © Travis Industries 100-01168_001 4050812... -
Page 4: Safety Precautions
Immediately call a qualified vicinity of this heater. service technician to inspect the appliance and to replace any part of the control system and any gas control that has been under water. © Travis Industries 100-01168_001 4050812... - Page 5 If the fiber logs become damaged, replace with Travis Industries log set. Children and adults should be Travis Industries, Inc. grants alerted to the hazards of high no warranty, implied or stated, surface temperature and for the installation or...
-
Page 6: Operation
Optional Blower Control This knob controls the speed of the optional internal convection blower that pushes heated air into the room. Optional Accent Light This knob controls the optional accent lights located behind the logs. © Travis Industries 100-01168_001 4050812... - Page 7 With the pilot lit, proceed to step “f”. Replace the glass. Turn the gas control knob counter- clockwise to "ON". The pilot is now lit and the heater can be turned on and off. © Travis Industries 100-01168_001 4050812...
-
Page 8: Starting The Fireplace For The First Time
Your fireplace has an adjustable flame to tailor the look and heat output to your specific needs. It is adjusted by turning the middle dial on the gas control valve. Index Mark Flame Height Adjustment Knob Turn counter-clockwise to adjust the flame higher, clockwise to lower. © Travis Industries 100-01168_001 4050812... -
Page 9: Adjusting The Optional Blower Speed
This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if the appliance was left idle for a long period. © Travis Industries 100-01168_001 4050812... -
Page 10: Maintenance
If the pilot or main burners do not burn correctly, contact your dealer for service. Monitor the blower operation. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is found near the vent termination. © Travis Industries 100-01168_001 4050812... -
Page 11: Grill Installation And Removal
(this prevents the it allows the grill to swing bushing. Once in place the grill is grill from accidentally falling off). forward. held in place by gravity. © Travis Industries 100-01168_001 4050812... -
Page 12: Face Installation And Removal
Some fireplaces have a face that fits over the glass frame. The face can be removed following the directions below. Phillips Screwdriver Four screws hold the face in place. The screws are accessed through the grills on the face. © Travis Industries 100-01168_001 4050812... -
Page 13: Glass Frame Removal And Installation
Lift the glass frame slightly and attach the lower latches. NOTE: Make sure the glass frame is all the way in place - it should be flush with the front of the fireplace when installed. © Travis Industries 100-01168_001 4050812... - Page 14 Top of Firebox Glass Frame Anchor Note how the washer on the latch fits behind the flange on the glass frame anchor. Once fully inserted, turn the latch until it is upright. © Travis Industries 100-01168_001 4050812...
-
Page 15: Log Set Installation
Rear Log Installation Place the rear log as shown below. Make sure it is pushed all the way back on the log shelf. The rear log has a slot that straddles the rear burner and pilot assembly © Travis Industries 100-01168_001 4050812... - Page 16 Right Log Installation The right log has a curved slot that fits over the right side grate. Place the right log as shown below. The left side of the log should be slid back against this ledge. © Travis Industries 100-01168_001 4050812...
- Page 17 Maintenance Left Log Installation Place the left log as shown above. Note how the right side of the log comes up, but does not cover, the burner holes.. © Travis Industries 100-01168_001 4050812...
- Page 18 Maintenance Center Log Installation The pin on the rear log inserts into the hole on the center log. Note how the center log rests on the center grate. © Travis Industries 100-01168_001 4050812...
- Page 19 Place the embers along the hearth plate and burner - make sure they do not cover any burner holes or air channels. Use the embers to cover any rivets and to make the firebox more realistic. © Travis Industries 100-01168_001...
-
Page 20: Glass Cleaning
30°(do not over-bend) With the outer glass Inner glass frame frame and screen removed, the outer surface of the glass The screen is may be cleaned. sandwiched between the inner and outer glass frame. Outer glass frame © Travis Industries 100-01168 4050812... -
Page 21: Troubleshooting Table
See "Adjusting the Flame Height" Short (Under 6") The logs or coals are placed incorrectly See "Log Set Installation" Thin Layer of Soot Improper air shutter adjustment Adjust Air Shutter - contact your dealer Covers the Glass © Travis Industries 100-01168_001 4050812... -
Page 22: How This Fireplace Works
This valve is placed on the gas line amount of electricity. If the pilot flame to shut off gas to the appliance goes out, the gas valve automatically during maintenance procedures. shuts off all gas. © Travis Industries 100-01168_001 4050812... -
Page 23: Wiring Diagram
Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. -
Page 24: Warranty Warranty
At that time, you may be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty. -
Page 25: Optional Equipment List
Extra Room Power Heat Duct Installed behind the wall, the extra room power heat duct pulls heat from the fireplace and blows it into a separate location. © Travis Industries 100-01168_001 4050812... -
Page 26: Index Index
Warranty ............24 Important Information..........2 Window Cleaning..........20 Installation Warnings...........2 Window Removal and Installation ......13 Introduction ............2 Wiring Diagram..........23 Location of Controls..........6 Yearly Service Procedure........10 Log Set Installation ..........15 Maintaining Your Fireplace's Appearance ....10 © Travis Industries 100-01168_001 4050812...
