Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.

FCC Information

This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
his own expense.
Mounting
The VIP-814 is designed for wall, table or rack
mounting.
Table: Provided with the VIP-814 are four
rubber pads. Peel the pads from their carrier
backing and place at the four corners of the
bottom of the unit.
Wall: Using the bracket and screws provided,
secure the VIP-814 to the wall.

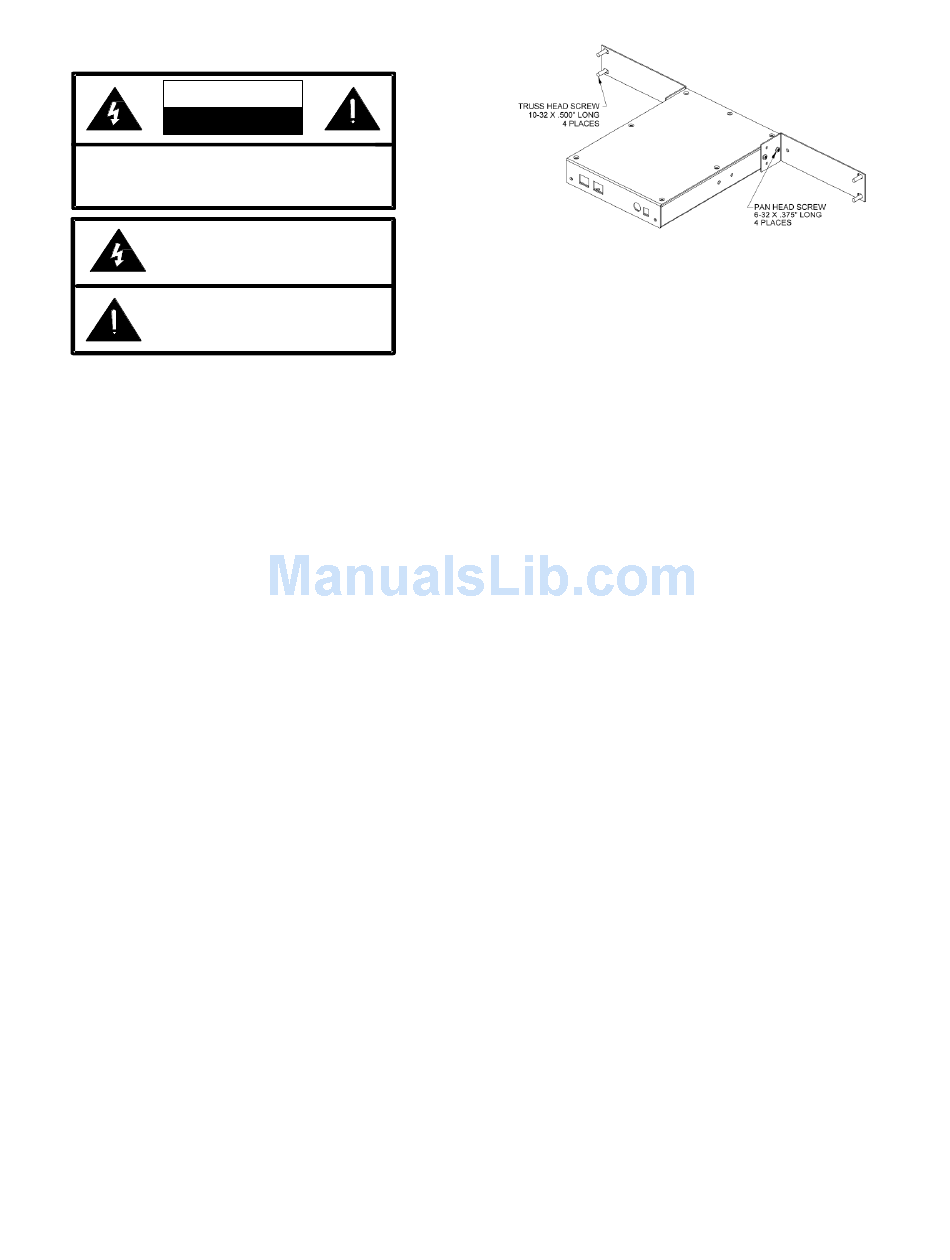

Rack: Following the assembly drawing below,
attach the two mounting brackets to the VIP-814
unit. Using rack screws, mount the VIP-814 in
an available 1U rack slot.

Power Connections

The preferred method of powering a VIP-814 is
via a Power over Ethernet (PoE) switch meeting
the 802.3af specification.
If the rear panel barrel connector is used for
power, the preferred power supply is a Valcom
VIP-324.
Make all required signal connections before
applying power to the unit. If powering via
802.3af, make sure all signal connections via the
rear panel are made then connect the VIP-814
to the Ethernet switch.
If power is supplied via the barrel connector,
make sure all signal connections are secure.
Attach the unit to the network via the front panel
RJ-45 Ethernet connector. Apply power by
plugging the power supply in to the VIP-814 via
the barrel connector on the rear of the VIP-814.

Network Connection

The VIP-814 has one CAT-5 RJ-45 network
connector on the front panel.
Use the supplied CAT-5 patch cable to connect
the VIP-814 to an Ethernet switch. If the
Ethernet switch is 802.3af compliant the VIP-814
will draw power from it.
Signal Connections
On the rear panel, the VIP-814 has 4 RJ-11
jacks for telephone connection and 2 terminal
blocks for relay connections.
Telephone Connections: Connect standard
analog telephones to the VIP-814 via the rear
panel RJ-11 jacks labeled Phone 1, Phone 2,
Phone 3 and Phone 4. Tip and Ring appear on
pins 3 and 4 of these jacks.
Relay Connections: Access to the four form C
relays is provided via two six pin screw terminal
block. The relays are labeled K1, K2, K3 and
K4. Each relay is brought out on three
terminals. The common contact is the middle
terminal with the normally closed contact on the
left and the normally open contact on the right.
Relay contacts are rated for 1A @ 24VDC.
