Valcom InformaCast VIP-801A-IC Installation Manual

INSTALLATION

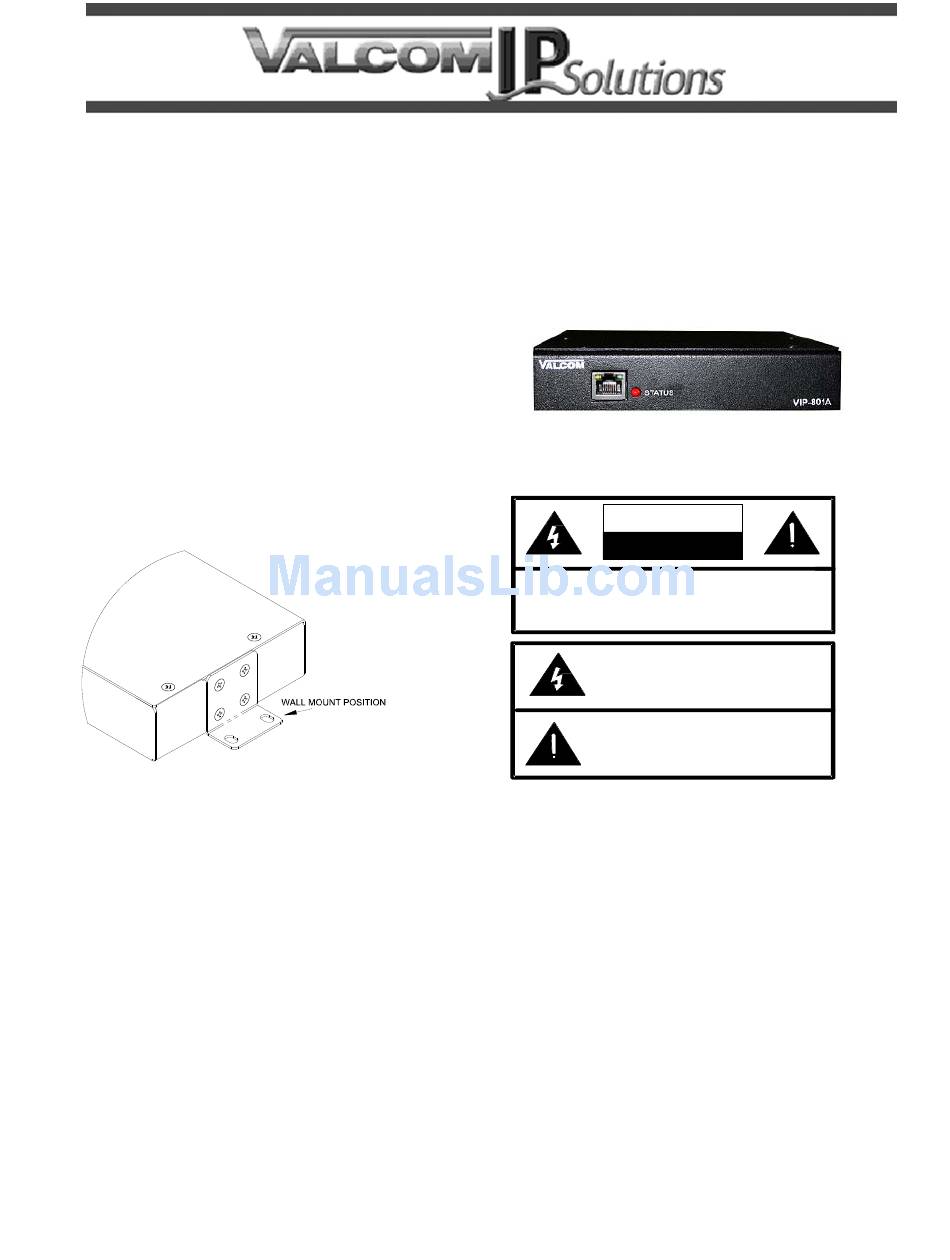

Mounting
The VIP-801A-IC is designed for wall or table
mounting.
Table: Provided with the VIP-801A-IC are four
rubber pads. Peel the pads from their carrier
backing and place at the four corners of the
bottom of the unit.
Wall: Using the brackets and screws provided,
secure the VIP-801A-IC to the wall.
INSTALLATION

FCC Information

This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
his own expense.

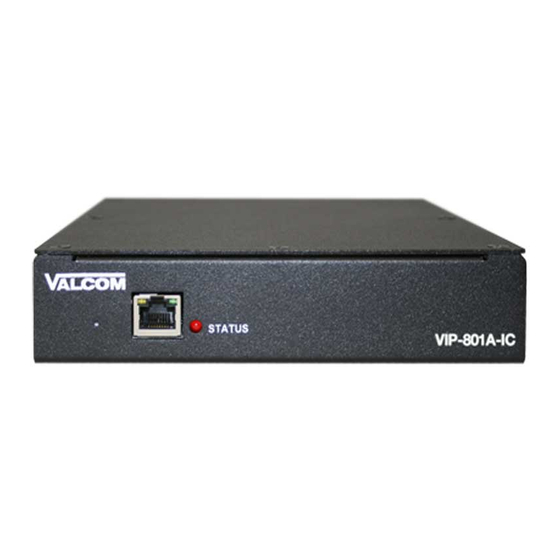

VIP-801A-IC
InformaCast
Network Audio Port
1
®
Compliant
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Power Connections
The preferred method of powering a
VIP-801A-IC is via a power over Ethernet switch
meeting the 802.3af specification. If the rear
panel barrel connector is used for power, the
preferred power supply is a Valcom VIP-324D.
Make all required signal connections before
applying power to the unit. If powering via
802.3af Power over Ethernet (PoE), make sure
all signal connections via the back panel are
made then connect the VIP-801A-IC to the
Ethernet switch.
If power is supplied via the barrel connector,
make sure all signal connections are secure.
Attach the unit to the network via the front panel
RJ-45 Ethernet connector. Apply power by
