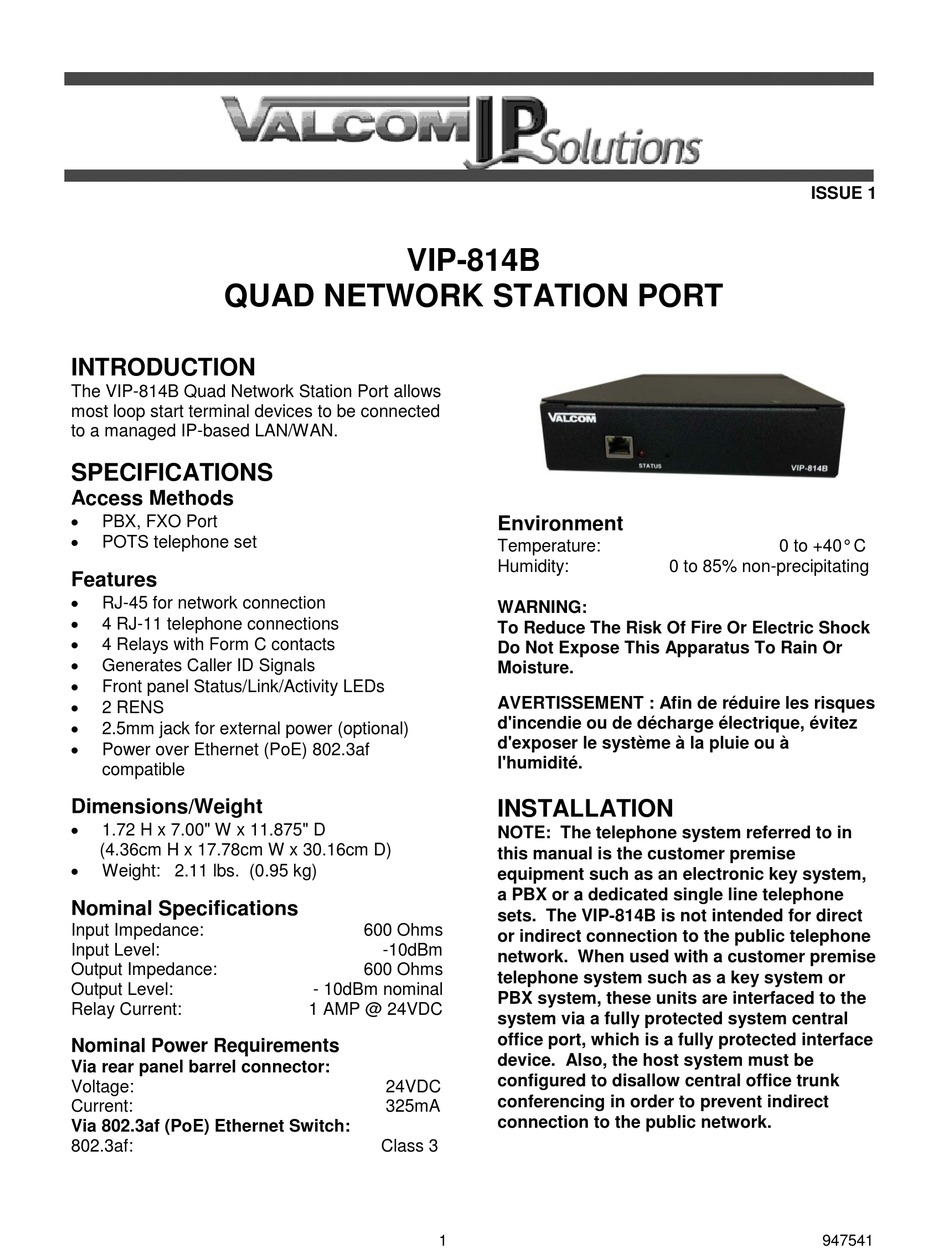

Valcom VIP-814B Manual

QUAD NETWORK STATION PORT

INTRODUCTION

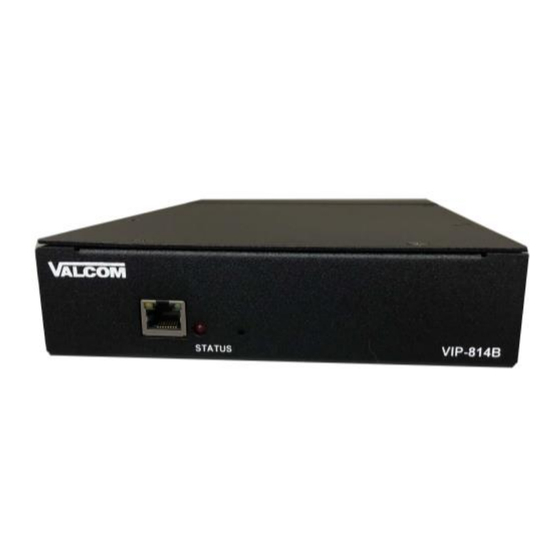

The VIP-814B Quad Network Station Port allows
most loop start terminal devices to be connected
to a managed IP-based LAN/WAN.

SPECIFICATIONS

Access Methods

PBX, FXO Port

POTS telephone set
Features

RJ-45 for network connection

4 RJ-11 telephone connections

4 Relays with Form C contacts

Generates Caller ID Signals

Front panel Status/Link/Activity LEDs

2 RENS

2.5mm jack for external power (optional)

Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight

1.72 H x 7.00" W x 11.875" D
(4.36cm H x 17.78cm W x 30.16cm D)

Weight: 2.11 lbs. (0.95 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af (PoE) Ethernet Switch:
802.3af:
VIP-814B
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1 AMP @ 24VDC
24VDC
325mA
Class 3
1
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
WARNING:
To Reduce The Risk Of Fire Or Electric Shock
Do Not Expose This Apparatus To Rain Or
Moisture.
AVERTISSEMENT : Afin de réduire les risques
d'incendie ou de décharge électrique, évitez
d'exposer le système à la pluie ou à
l'humidité.

INSTALLATION

NOTE: The telephone system referred to in
this manual is the customer premise
equipment such as an electronic key system,
a PBX or a dedicated single line telephone
sets. The VIP-814B is not intended for direct
or indirect connection to the public telephone
network. When used with a customer premise
telephone system such as a key system or
PBX system, these units are interfaced to the
system via a fully protected system central
office port, which is a fully protected interface
device. Also, the host system must be
configured to disallow central office trunk
conferencing in order to prevent indirect
connection to the public network.
ISSUE 1
0 to +40° C
947541
