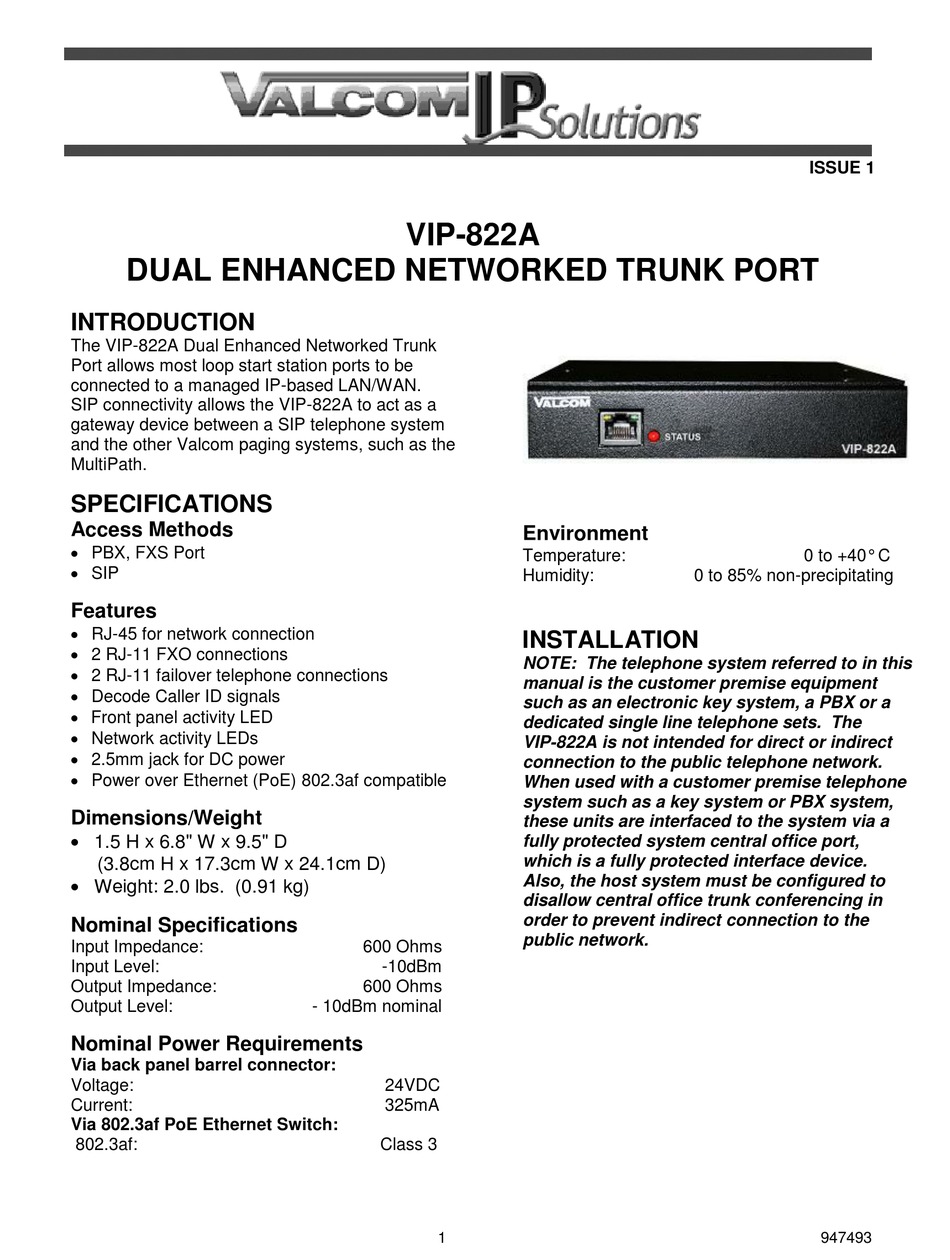

Valcom VIP-822A Quick Start Manual

DUAL ENHANCED NETWORKED TRUNK PORT
INTRODUCTION

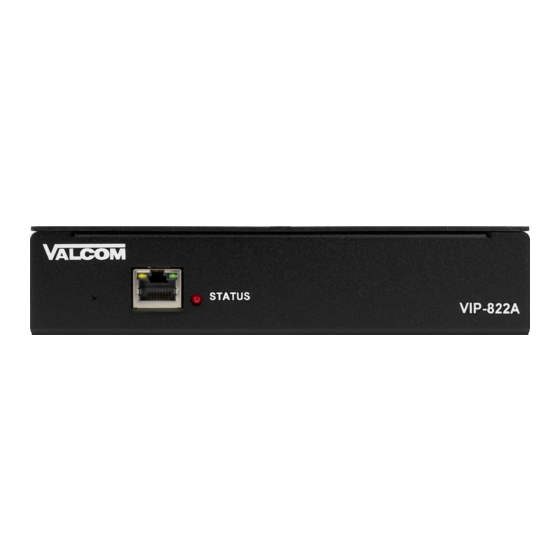

The VIP-822A Dual Enhanced Networked Trunk
Port allows most loop start station ports to be
connected to a managed IP-based LAN/WAN.
SIP connectivity allows the VIP-822A to act as a
gateway device between a SIP telephone system
and the other Valcom paging systems, such as the
MultiPath.
SPECIFICATIONS
Access Methods
 PBX, FXS Port
 SIP
Features
 RJ-45 for network connection
 2 RJ-11 FXO connections
 2 RJ-11 failover telephone connections
 Decode Caller ID signals
 Front panel activity LED
 Network activity LEDs
 2.5mm jack for DC power
 Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
 1.5 H x 6.8" W x 9.5" D
(3.8cm H x 17.3cm W x 24.1cm D)
 Weight: 2.0 lbs. (0.91 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
VIP-822A
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
24VDC
325mA
Class 3
1
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
INSTALLATION
NOTE: The telephone system referred to in this
manual is the customer premise equipment
such as an electronic key system, a PBX or a
dedicated single line telephone sets. The
VIP-822A is not intended for direct or indirect
connection to the public telephone network.
When used with a customer premise telephone
system such as a key system or PBX system,
these units are interfaced to the system via a
fully protected system central office port,
which is a fully protected interface device.
Also, the host system must be configured to
disallow central office trunk conferencing in
order to prevent indirect connection to the
public network.
ISSUE 1
0 to +40° C
947493
