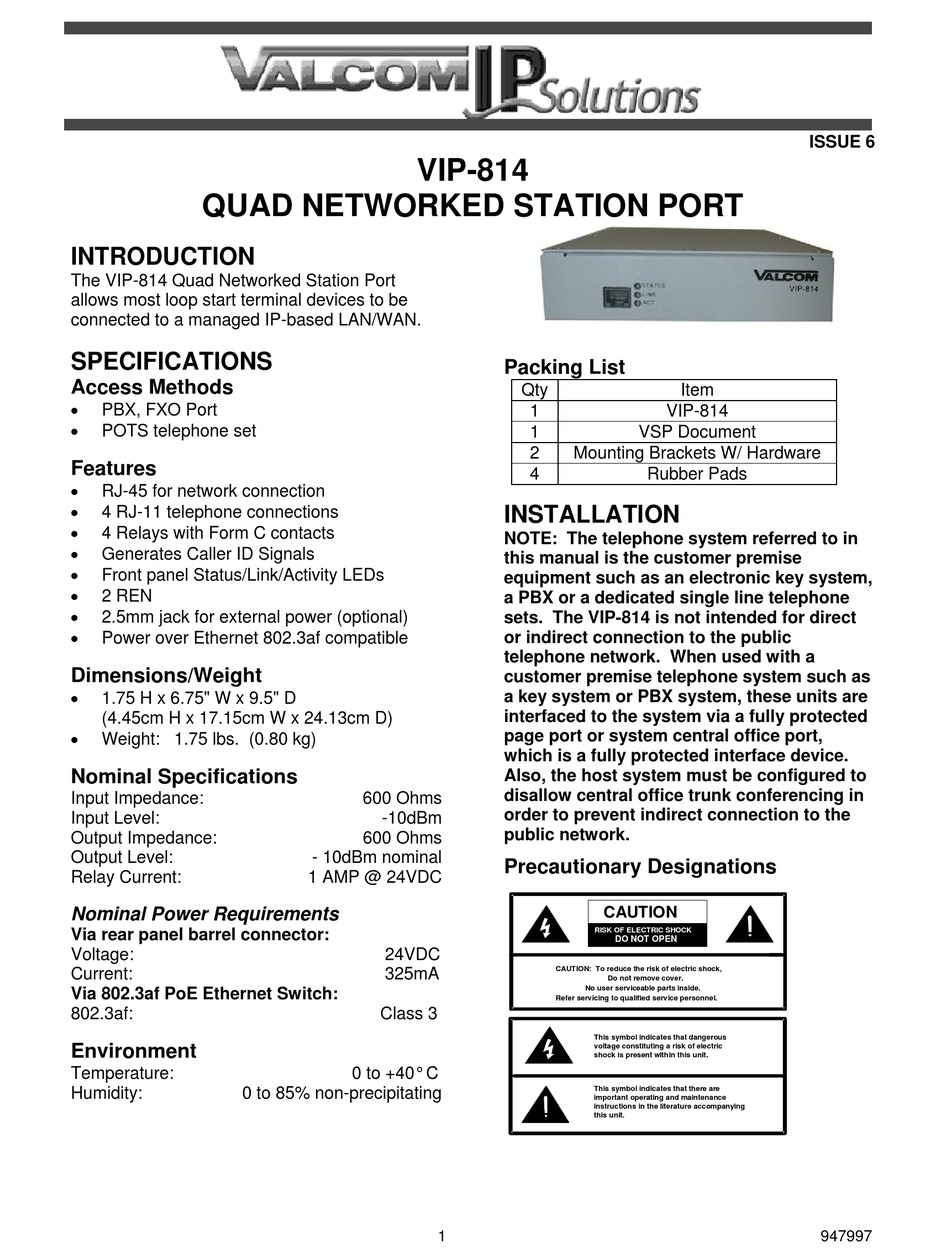

Valcom VIP-814 User Manual

QUAD NETWORKED STATION PORT
INTRODUCTION
The VIP-814 Quad Networked Station Port
allows most loop start terminal devices to be
connected to a managed IP-based LAN/WAN.

SPECIFICATIONS

Access Methods

PBX, FXO Port

POTS telephone set
Features

RJ-45 for network connection

4 RJ-11 telephone connections

4 Relays with Form C contacts

Generates Caller ID Signals

Front panel Status/Link/Activity LEDs

2 REN

2.5mm jack for external power (optional)

Power over Ethernet 802.3af compatible
Dimensions/Weight

1.75 H x 6.75" W x 9.5" D
(4.45cm H x 17.15cm W x 24.13cm D)

Weight: 1.75 lbs. (0.80 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
VIP-814
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1 AMP @ 24VDC
24VDC
325mA
Class 3
0 to +40° C
1

Packing List

Qty Item
1 VIP-814
1 VSP Document
2 Mounting Brackets W/ Hardware
4 Rubber Pads
INSTALLATION
NOTE: The telephone system referred to in
this manual is the customer premise
equipment such as an electronic key system,
a PBX or a dedicated single line telephone
sets. The VIP-814 is not intended for direct
or indirect connection to the public
telephone network. When used with a
customer premise telephone system such as
a key system or PBX system, these units are
interfaced to the system via a fully protected
page port or system central office port,
which is a fully protected interface device.
Also, the host system must be configured to
disallow central office trunk conferencing in
order to prevent indirect connection to the
public network.
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
ISSUE 6
947997
