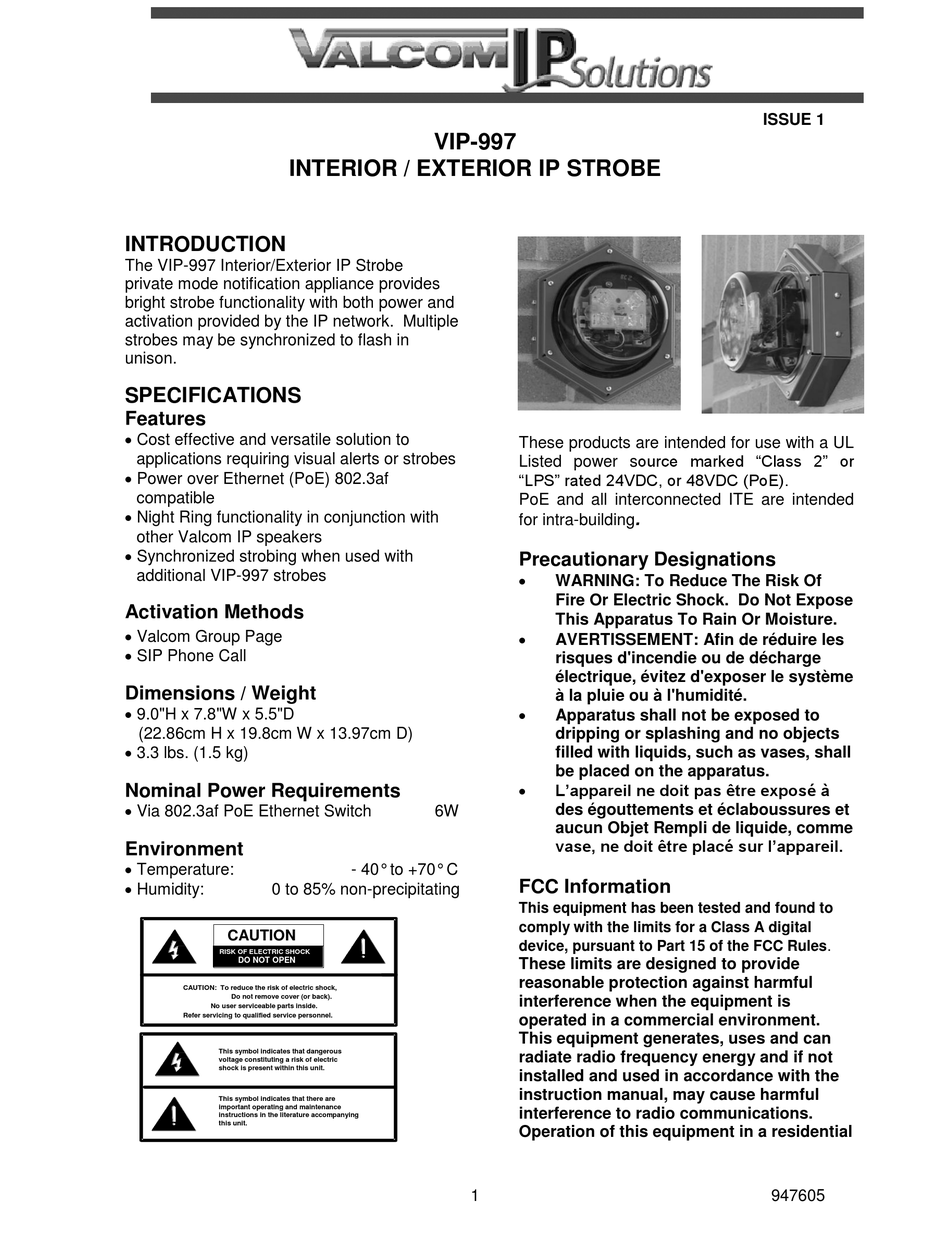

Valcom VIP-997 Manual

INTERIOR / EXTERIOR IP STROBE
INTRODUCTION
The VIP-997 Interior/Exterior IP Strobe
private mode notification appliance provides
bright strobe functionality with both power and
activation provided by the IP network. Multiple
strobes may be synchronized to flash in
unison.
SPECIFICATIONS
Features
 Cost effective and versatile solution to
applications requiring visual alerts or strobes
 Power over Ethernet (PoE) 802.3af
compatible
 Night Ring functionality in conjunction with
other Valcom IP speakers
 Synchronized strobing when used with
additional VIP-997 strobes
Activation Methods
 Valcom Group Page
 SIP Phone Call
Dimensions / Weight
 9.0"H x 7.8"W x 5.5"D
(22.86cm H x 19.8cm W x 13.97cm D)
 3.3 lbs. (1.5 kg)
Nominal Power Requirements
 Via 802.3af PoE Ethernet Switch
Environment
 Temperature:
 Humidity:
0 to 85% non-precipitating
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
VIP-997
These products are intended for use with a UL
Listed power source marked "Class 2" or
"LPS" rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended
for intra-building
Precautionary Designations




6W
- 40° to +70° C
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is
operated in a commercial environment.
This equipment generates, uses and can
radiate radio frequency energy and if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential
1
.
WARNING: To Reduce The Risk Of
Fire Or Electric Shock. Do Not Expose
This Apparatus To Rain Or Moisture.
AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système
à la pluie ou à l'humidité.
Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall
be placed on the apparatus.
L'appareil ne doit pas être exposé à
des égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l'appareil.
ISSUE 1
947605
