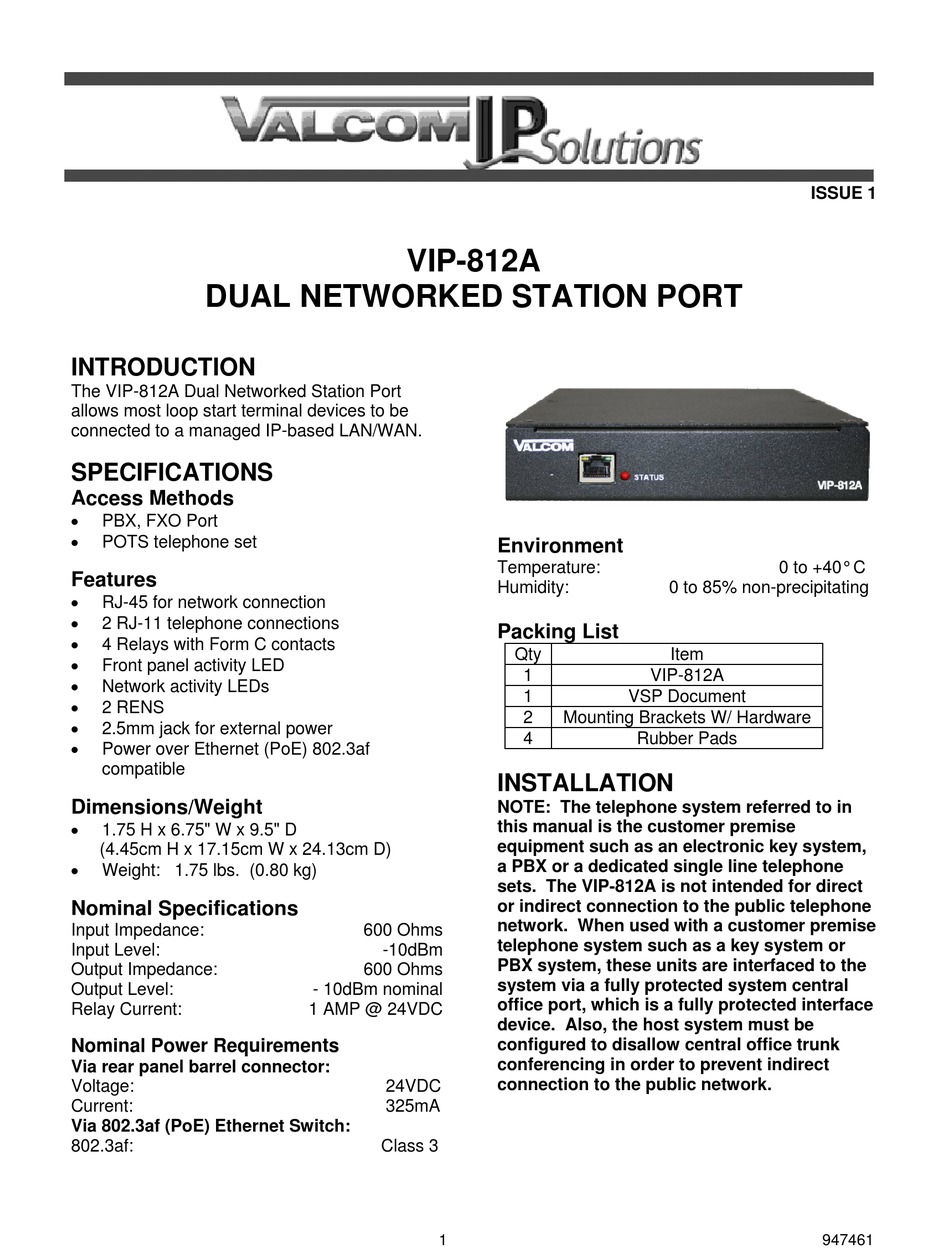

Valcom VIP-812A Quick Start Manual

DUAL NETWORKED STATION PORT
INTRODUCTION
The VIP-812A Dual Networked Station Port
allows most loop start terminal devices to be
connected to a managed IP-based LAN/WAN.
SPECIFICATIONS
Access Methods

PBX, FXO Port

POTS telephone set
Features

RJ-45 for network connection

2 RJ-11 telephone connections

4 Relays with Form C contacts

Front panel activity LED

Network activity LEDs

2 RENS

2.5mm jack for external power

Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight

1.75 H x 6.75" W x 9.5" D
(4.45cm H x 17.15cm W x 24.13cm D)

Weight: 1.75 lbs. (0.80 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af (PoE) Ethernet Switch:
802.3af:
VIP-812A
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1 AMP @ 24VDC
24VDC
325mA
Class 3
1
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Packing List
Qty Item
1 VIP-812A
1 VSP Document
2 Mounting Brackets W/ Hardware
4 Rubber Pads
INSTALLATION
NOTE: The telephone system referred to in
this manual is the customer premise
equipment such as an electronic key system,
a PBX or a dedicated single line telephone
sets. The VIP-812A is not intended for direct
or indirect connection to the public telephone
network. When used with a customer premise
telephone system such as a key system or
PBX system, these units are interfaced to the
system via a fully protected system central
office port, which is a fully protected interface
device. Also, the host system must be
configured to disallow central office trunk
conferencing in order to prevent indirect
connection to the public network.
