Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.

FCC Information

This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
his own expense.
Mounting
The VIP-812A is designed for wall, table or rack
mounting.
Table: Provided with the VIP-812A are four
rubber pads. Peel pads from their carrier backing
and place at the four corners of the bottom of the
unit.
Wall: Using the template on last page of this
document, mark the location of the bracket screw
holes on the wall. Drill 5/64" pilot holes, 3/4"
deep, at each screw location and use the wood
screws provided to attach the brackets to the
wall. For surfaces other than wood, use
hardware appropriate for the surface (not
included). With the brackets securely attached to
the wall, attach the VIP-812A to the brackets
using the included hardware. Figure 2 illustrates
the bracket assembly.
Rack: Following the assembly drawing, attach
the two mounting brackets to the VIP-812A unit.
Using rack screws, mount the VIP-812A in an
available 1U rack slot. See Figure 1.

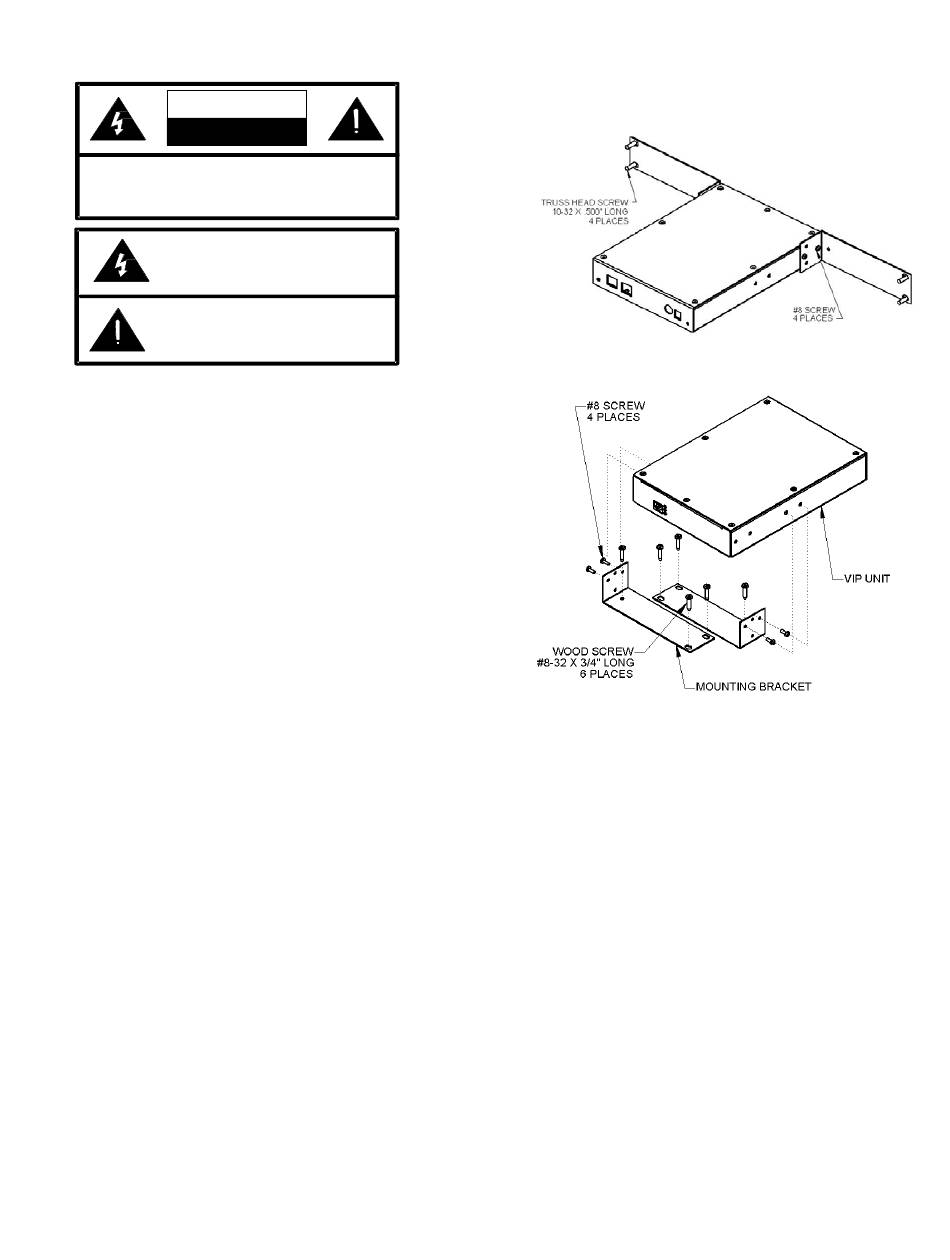

Figure 1. Rack Mount
Figure 2. Wall Mount

Power Connections

The preferred method of powering a VIP-812A is
via a Power over Ethernet (PoE) switch meeting
the 802.3af specification.
If the rear panel barrel connector is used for
power, the preferred power supply is a Valcom
VIP-324D.
Make all required signal connections before
applying power to the unit. If powering via
802.3af, make sure all signal connections via the
back panel are made then connect the VIP-812A
to the Ethernet switch.
If power is supplied via the barrel connector,
make sure all signal connections are secure.
Attach the unit to the network via the front panel
RJ-45 Ethernet connector. Apply power by
plugging the power supply in to the VIP-812A via
the barrel connector on the rear of the VIP-812A.
