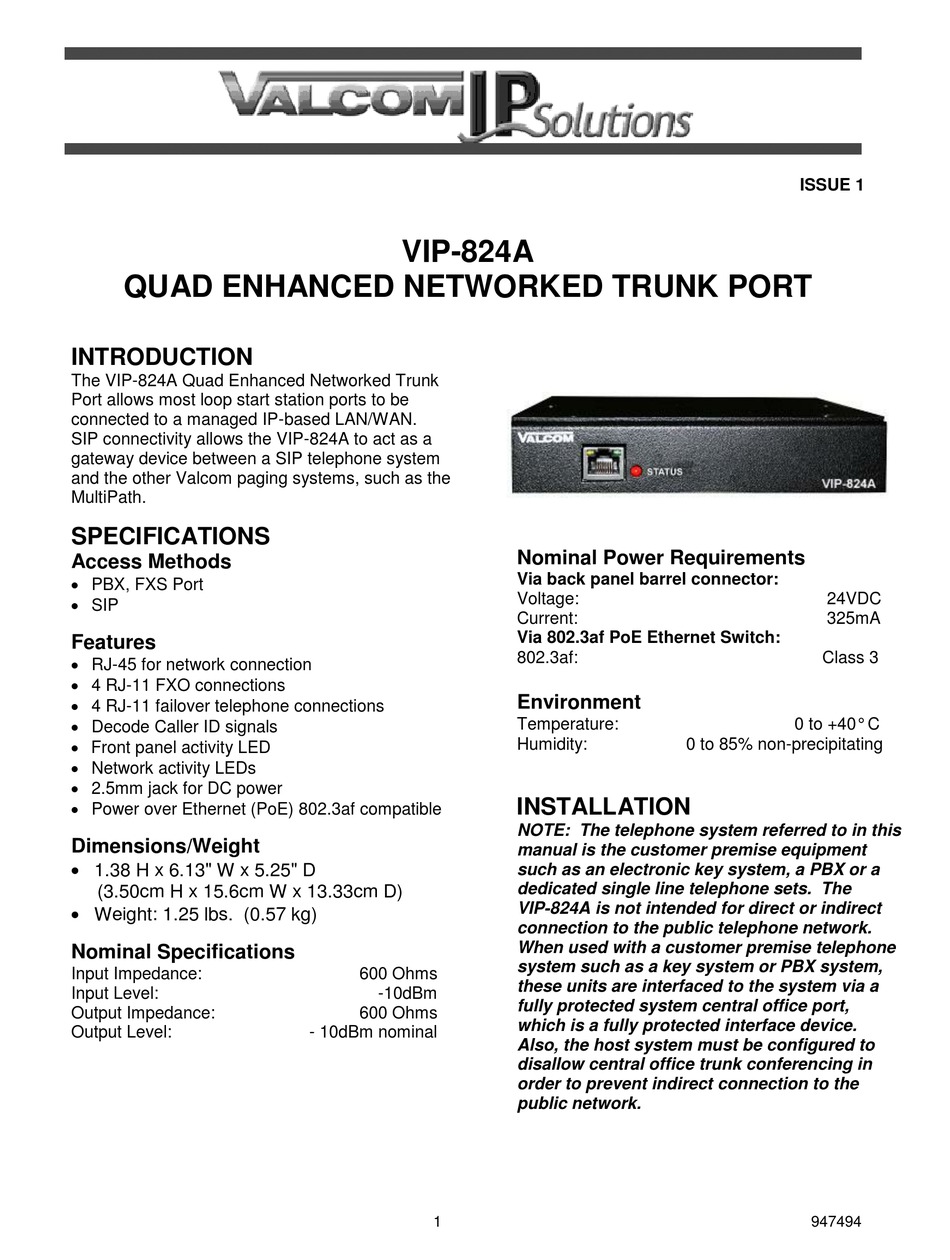

Valcom VIP-824A Quick Start Manual

QUAD ENHANCED NETWORKED TRUNK PORT
INTRODUCTION
The VIP-824A Quad Enhanced Networked Trunk
Port allows most loop start station ports to be
connected to a managed IP-based LAN/WAN.
SIP connectivity allows the VIP-824A to act as a
gateway device between a SIP telephone system
and the other Valcom paging systems, such as the
MultiPath.
SPECIFICATIONS
Access Methods
 PBX, FXS Port
 SIP
Features
 RJ-45 for network connection
 4 RJ-11 FXO connections
 4 RJ-11 failover telephone connections
 Decode Caller ID signals
 Front panel activity LED
 Network activity LEDs
 2.5mm jack for DC power
 Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
 1.38 H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)
 Weight: 1.25 lbs. (0.57 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
VIP-824A
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
INSTALLATION
NOTE: The telephone system referred to in this
manual is the customer premise equipment
such as an electronic key system, a PBX or a
dedicated single line telephone sets. The
VIP-824A is not intended for direct or indirect
connection to the public telephone network.
When used with a customer premise telephone
system such as a key system or PBX system,
these units are interfaced to the system via a
fully protected system central office port,
which is a fully protected interface device.
Also, the host system must be configured to
disallow central office trunk conferencing in
order to prevent indirect connection to the
public network.
ISSUE 1
24VDC
325mA
Class 3
0 to +40° C
947494
