Step 5

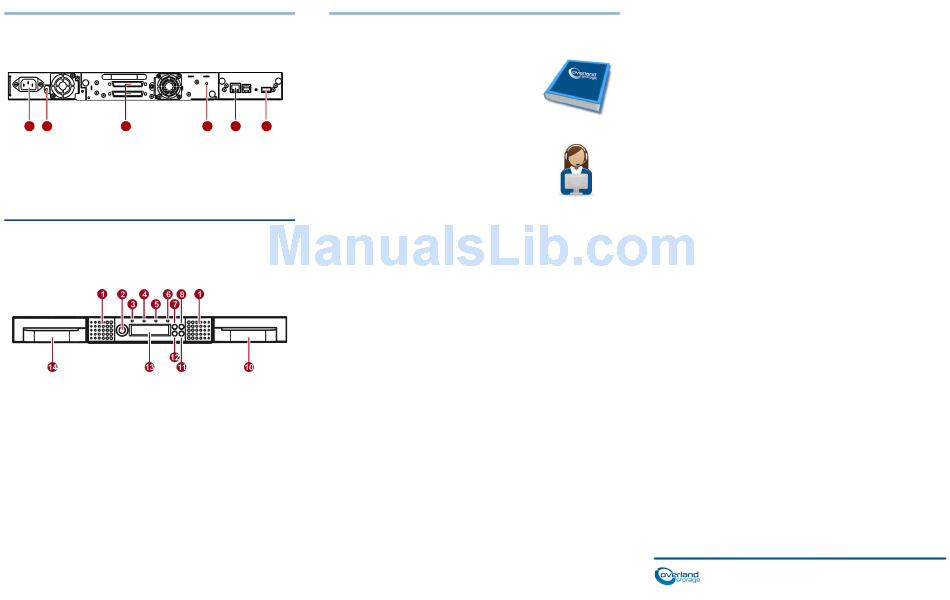

Cable Attachment
All cabling, power connections, and cooling are located on the rear panel.
1 2 3
1 - AC Power Socket 3 - Network Ports
2 - Shipping Lock 4 - Tape Drive LED
1. Connect the network cables to their ports (3).
2. Connect the management cable to the RJ45 port (5).
3. Plug the power cord into the AC Power Socket (1).
4. Press the Power button on the front just left of the LED screen.
Step 6
The library can be operated using either the Operator Control Panel (OCP) on the front
of the device or remotely using the Remote Management Interface (RMI) web access.
Operator Control Panel
The OCP is the LCD screen located on the front panel (13), and displays actions and
status information, menu items, and error messages equivalent to the operation mode.
There are two modes:
• User interaction mode – This mode is employed when a user is pushing buttons
on the OCP.
• System driven mode – This is the normal mode of operation where the OCP
displays statuses associated with the actions resulting from commands issued
from the host software application.
It is supported by four LEDs above the screen (3-6) and four buttons to the right (7, 8,
11, 12). Refer to the NEOs StorageLoader User Guide for complete details.
Remote Management Interface
Many of the same operations performed locally from the OCP can also be performed
remotely using the network-connected RMI interface.
The RMI hosts a dedicated, protected Internet site that displays a graphical representation of the
library. After establishing a network connection to the library, open any HTML browser
and enter the IP address of the library.
NOTE: To access the RMI, you must first set the desired static IP address for the library using
the OCP or configure the library to use DHCP.
Refer to the NEOs StorageLoader User Guide for complete details.
–4–
Step 7
User Guides
For detailed information on configuring your NEOs
StorageLoader, refer to the NEOs StorageLoader User
Guide available online at:
http://docs.overlandstorage.com/neo
4 5 6
Warranty and Technical Support
5 - Ethernet Port
For warranty and general technical support information,
6 - USB Port
see our Contact Us web page:
http://www.overlandstorage.com/company/contact-us/
index.aspx
For information on contacting Overland Technical Support,
see our Contact Support web page:
http://docs.overlandstorage.com/support
–5–
http://support.overlandstorage.com
You can get additional technical support on the Internet at the Overland Storage Support web
by contacting Overland Storage using the information found on the Contact Us
©2014 Overland Storage, Inc.
