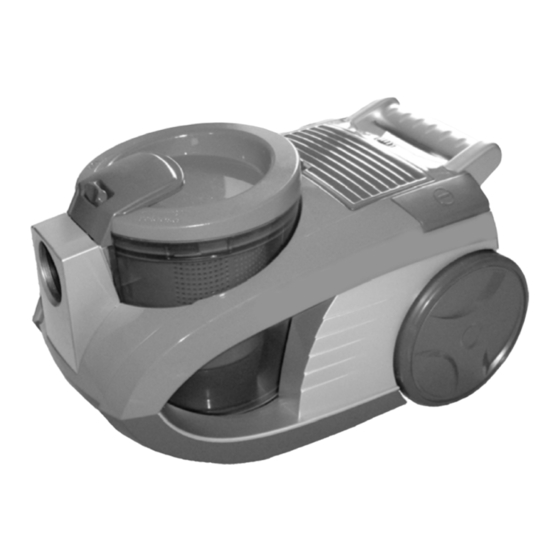

Maxi Vacuum Cleaner
For Household Use Only
Model No. DC001-D
Item No.:
900153
220 - 240Va.c. 50Hz
2400W Max
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
Advertisement
Table of Contents
Related Manuals for Piranha Maxi DC001-D
Summary of Contents for Piranha Maxi DC001-D

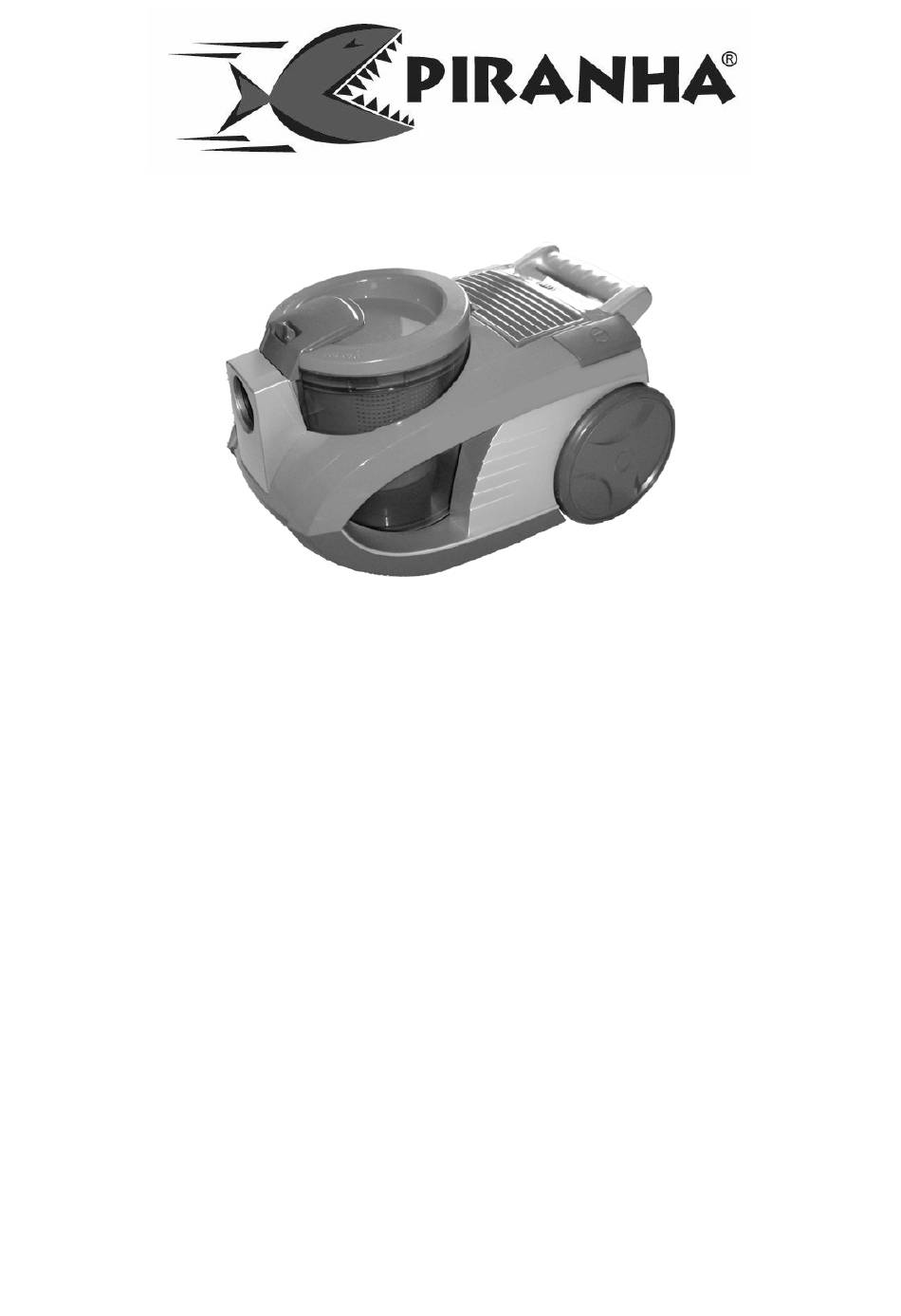

- Page 1 Maxi Vacuum Cleaner For Household Use Only Model No. DC001-D Item No.: 900153 220 - 240Va.c. 50Hz 2400W Max Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement.
-
Page 2: Table Of Contents
Warnings.................. 3 Safety Direction............... 3 Transporting your Vacuum ............ 5 Components ................6 Assembly Method ..............7 5.1 Fitting Flexible Hose ..............7 5.2 Hose Removal................7 5.3 Fitting Telescopic Tube and Accessories ....... 7 ... -
Page 3: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. Keep appliance out of reach of young children. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 Return appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment. DO NOT misuse the cord. Never pull the appliance by the cord or pull to disconnect it from the outlet. Instead, grasp the plug and pull to disconnect. DO NOT use the vacuum cleaner to pick up large objects, hard or sharp objects such as glass, nails, screws, coins, etc.
-
Page 5: Transporting Your Vacuum
DO use only as described in this manual. Use only manufacturer's recommended attachments. DO Keep cord away from heated surfaces. DO Keep all openings free of dust, lint. hair, and anything that may reduce airflow. DO use extra care when vacuuming on stairs. DO keep your work area well lit. -
Page 6: Components
Components 1. Hose Coupling / Air inlet 2. Dust Canister Release Button 3. Dust Canister 4. Air Outlet Filter 5. Cord Rewind Button 6. Variable Suction Control 7. Carrying Handle 8. Power On / Off Button 9. Power Cord (at back) 10. -
Page 7: Assembly Method
Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose into the Hose Coupling / Air inlet hole and push in hard until it locks into place Hose Removal To remove flexible hose from the vacuum cleaner, press the side clips on the coupling “inwards”... -
Page 8: The Tools
5.3.1 The Tools Crevice tool Upholstery Tool with Removable Brush • Crevice tool is for cleaning furniture and into corners. • Brush attachment can be used for general applications. 5.3.2 Tool Holder The Crevice Tool and Upholstery Tool with Removable Brush can be stored on the vacuum hose handle as shown. -
Page 9: Floor Head
Floor Head The floor head is adjustable to suit either hard floors or carpets. Press the lever down to Retract the brush Lift the lever up to Extend the brush • Hard Floors – Extend Brush Laminate flooring, tiles, vinyl etc. •... -
Page 10: Emptying The Dust Canister
Emptying the Dust Canister Empty the Dust Canister as frequently as possible or when the suction power is reduced. To remove the Dust Canister, press the release button backward and pull the Dust Canister up and out of the housing. Empty the canister by holding the Dust Canister in position over a rubbish bin, press the side latch to open the base and release the dust. -
Page 11: User Maintenance
10 User Maintenance WARNING: The plug must be removed from the power socket before any maintenance or replacement. NOTE: To maximise the performance of your vacuum cleaner, you should clean your filters regularly. If the filters are broken or worn, replace them before continuing to use the vacuum. -
Page 12: Exhaust Filter
Twist the cover off the dust container base to expose the filters. One is a white fabric filter the other is a black foam filter. Wash all the Pre Motor Filters in warm mild soapy water, rinse in clean fresh cold water and lay out flat to dry. DO NOT scrub the filter or place in a dishwasher. -
Page 13: Cleaning The Dust Canister
DO NOT scrub the filter or place in a dishwasher. DO NOT use a hair drier to dry the filter. DO NOT use the Vacuum Cleaner without the filter in place. NOTE: Never use the vacuum cleaner with a wet or damp filter. Refit the grille to the vacuum cleaner ensuring it is located and latched correctly. -
Page 14: Cleaning The Vacuum Cleaner And Components
When completely dry, refit the lid to the dust canister ensuring it is located and locked back in position. 10.3 Cleaning the Vacuum Cleaner and Components Do not clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc. Clean only the outside of the vacuum cleaner. -
Page 15: Guarantee
12 Guarantee WHAT’S COVERED H.E. Group Pty Ltd guarantees this product for a full replacement or refund for a period of twelve months from the date of purchase. This guarantee is valid with the presentation of the original proof of purchase receipt from the store from which you purchased the product in order to establish the purchase price and provide the correct value of the product paid for by you.
