2. Connect your
Note: The Source Drive can be a drive you intend to make an exact copy of, or an
Image drive containing several hard drive images.

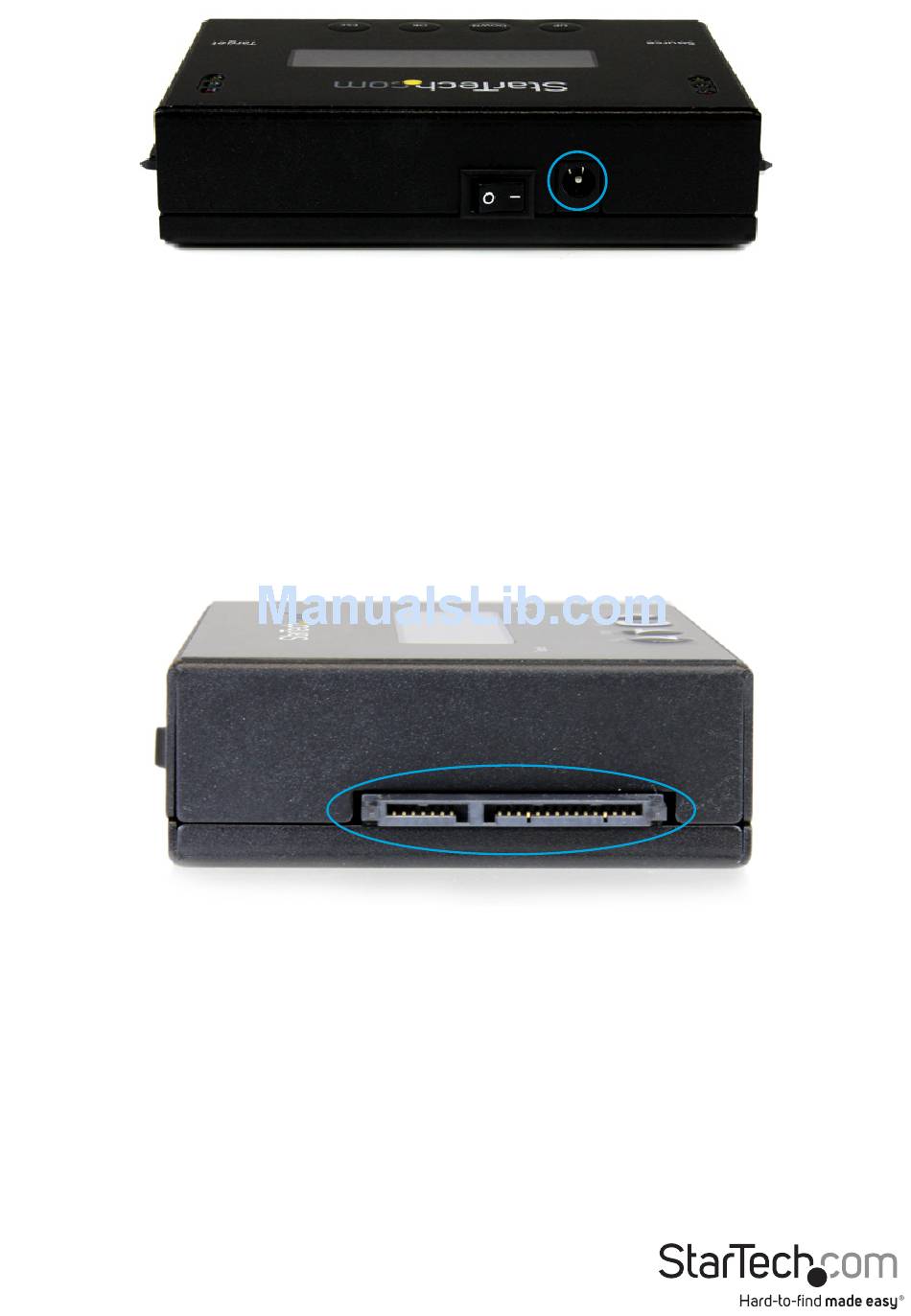

a) If the source drive is a SATA HDD/SSD, use the included Short SATA cable or
the included Long SATA cable if the drive is installed into a PC chassis.
b) If your source drive is an eSATA HDD/SSD Enclosure or Dock, use the
included eSATA + 12V Power Cable or eSATA+5V Power Cable depending
on your drive requirements.
3. Connect your
Note: The Target Drive can be a drive you intend to overwrite with another drive
image, or an Image drive you intend to add an additional drive image to.
a) If the target drive is a SATA HDD/SSD, use the included Short SATA cable or
the included Long SATA cable if the drive installed into a PC Chassis.
b) If your target drive is an eSATA HDD/SSD Enclosure or Dock, use the included
eSATA + 12V Power Cable or eSATA+5V Power Cable depending on your
drive requirements.
Instruction Manual
Source drive to the SATA SSD/HDD Source Port on the SATDUP11IMG.
Target drive to the SATA SSD/HDD Target Port on the SATDUP11IMG.
