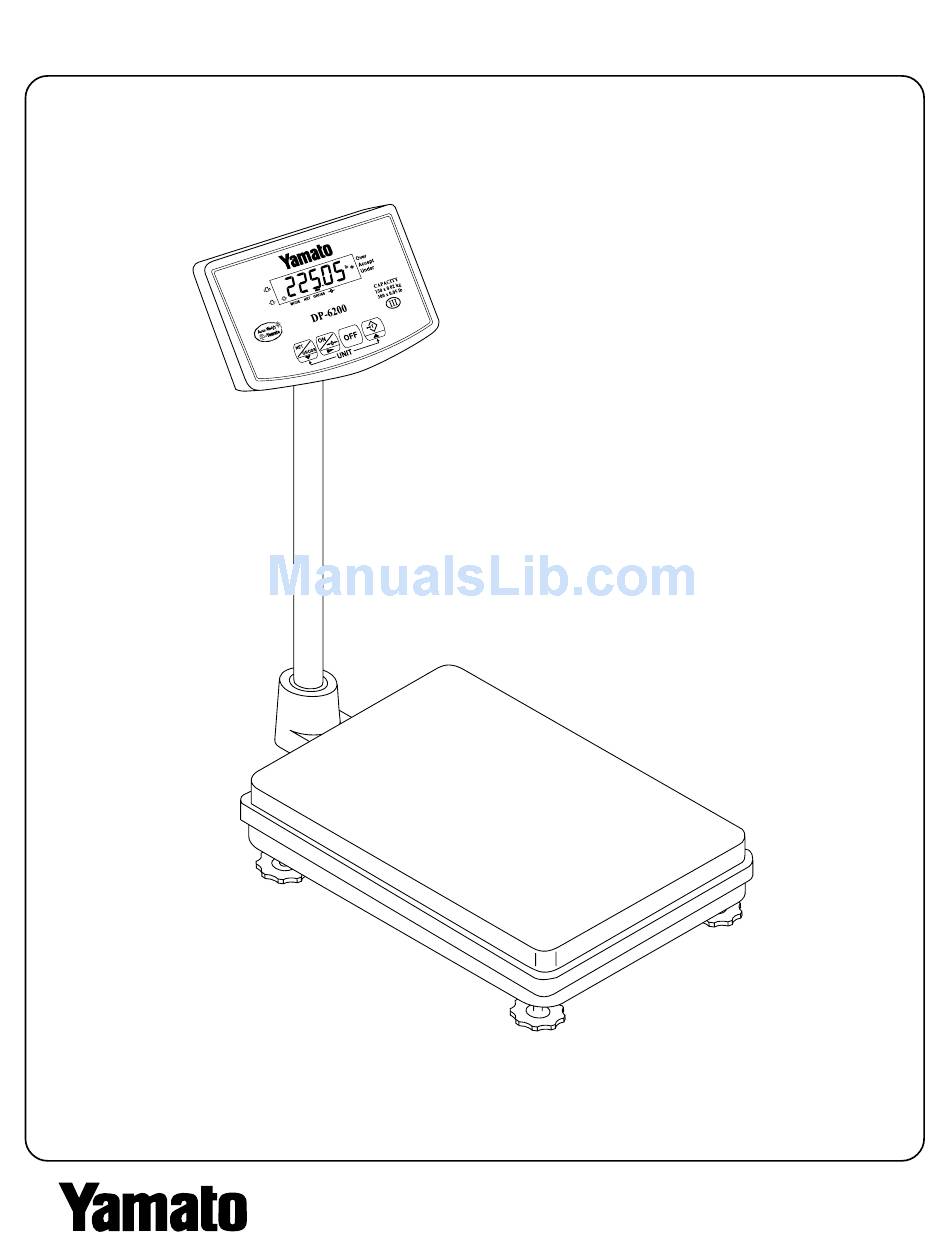

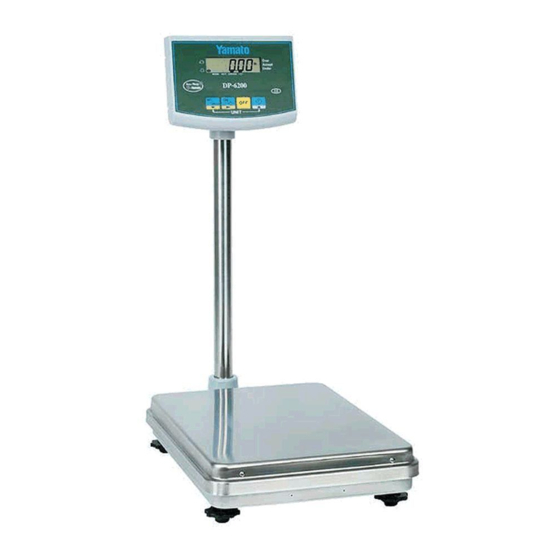

  • Page 1 DP-6200 Operation Manual YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada www.YamatoCorp.com Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827 YCO-1111-09-02...

  • Page 2: Table Of Contents

    DP-6200 Operation Manual Table of Contents Safety Instructions II. Description Name and Function of Parts Specifications III. Setup Assembling the Scale Adjusting the Indicator Angle Leveling the Scale Installing Batteries or AC Adaptor IV. Directions for Use Turning the Scale On and Off...

  • Page 3: Safety Instructions

    9) Do not insert your finger into the gap or holes in the scale. You may be injured. 10) The DP-6200 uses a liquid crystal display. If the LCD breaks and the liquid leaks from the LCD, do not touch it with your fingers.

  • Page 4: Description

    DP-6200 Operation Manual II Description Name and Function of Parts INDICATOR KEYS COLUMN STOP COLUMN SCREW HOLE FLOAT LEVEL COLUMN LOCKING PLATFORM SCREWS BRACKET COVER COLUMN BRACKET STOP SCREW LEVELLING LEGS WEIGHING PLATFORM FIG. 1 FIG. 2 SERIAL NO. COVER...
  • Page 5 DP-6200 Operation Manual II Description Name and Function of Parts Over Accept Under MODE NET GROSS CAPACITY 150 x 0.02 kg DP-6200 DP-6200 300 x 0.05 lb GROSS UNIT FIG. 4 Low Battery Indicator Time to replace the batteries. Hold Indicator The scale is in Hold mode (not legal-for-trade).

  • Page 6: Specifications

    DP-6200 Operation Manual II Description Specifications Weighing system: Strain-gauge load cell Platform: 13.8” x 19.7” (350 x 500 mm), stainless steel Weight display: Single face display Type: 7 segment LCD Character size, etc.: 0.5” (12 mm) (W) x 0.9” (23 mm) (H), 5 digits...

  • Page 7: Setup

    Use only the AC adaptor specified for use with the scale. Using the wrong adaptor can damage the scale. Insert the adaptor plug securely into the jack on the back of the indicator. WARNING! The DP-6200 is not washdown unless the AC adaptor jack is plugged with a water-tight seal.

  • Page 8: Directions For Use

    DP-6200 Operation Manual IV Directions for Use Turning the Scale On and Off Remove everything from the platform surface and press the key. The display will briefly flash all segments of the LCD. After approximately 5 seconds, the display will stop flashing and automati- cally set to zero.

  • Page 9: Setting The Over/Under Indicator

    DP-6200 Operation Manual IV Directions for Use Setting the Over/Under Indicator 1) Place the scale in normal weighing mode. 2) Press and hold the key and push the key (yellow GROSS tabs). 3) Press the key to select the digit you want to change. The flashing underscore will advance to the right.

  • Page 10: Weighing

    DP-6200 Operation Manual V Weighing Using the Over/Under Indicator 1) Begin with no load on the scale, the display reading zero, and the center of zero and stable indicators lit. The small up and down arrowheads on the right side of the display indicate that the over and under setpoints, respectively, have been set.

  • Page 11: Batching

    DP-6200 Operation Manual V Weighing Net Weighing (cont’d.) 4) To display the gross weight, press the key. The gross GROSS indicator will light and the weight displayed will be the gross weight of the item(s) and the container. Press the GROSS again to return to the net weight.

  • Page 12: Troubleshooting And Error Messages

    DP-6200 Operation Manual VI Troubleshooting and Error Messages The scale can check various functions automatically. When a problem is detected, the following mes- sages will be displayed. If you take the steps described below but the problem is not fixed, the scale needs to be calibrated or serviced by a qualified scale technician.
  • Page 13 DP-6200 Operation Manual VI Troubleshooting and Error Messages Electronic circuitry error. When the operating circuitry registers an error, this message may be displayed. Turn the power off and then on again. Electromagnetic disturbance error. This indication is occa- sionally displayed due to strong static electricity and/or electro- magnetic disturbance.

  • Page 14: User Parameters

    DP-6200 Operation Manual VII User Parameters Setting the User Parameters The scale keywords can be changed in the user setup mode to disable or change the duration of the auto-off function, to set which units (metric or standard) the scale defaults to when turned on, to set the RS-232C communications parameters and to set the display hold.

  • Page 15: User Parameter Table

    DP-6200 Operation Manual VII User Parameters User Parameter Table Function Description Word Value Auto-off timer 000 Disables auto-off. 001~240 Number of minutes unused to activate auto-off. Display hold timer 000 No display hold for changes less than four divisions. 001~030 Display hold duration, in seconds, for changes less than four divisions.
