CauTIOn!
Machine at risk!
12
• Adhere to the cord data provided by the manufacturer (operating manual) and to local regulations.
• Route the cord in such a way that it does not present a tripping hazard.
• Do not pull the cord over corners or sharp edges, pinch it between objects or allow it to hang loosely in
the open.
• Do not place the cable over hot objects, and protect it from oil and aggressive cleaning agents.

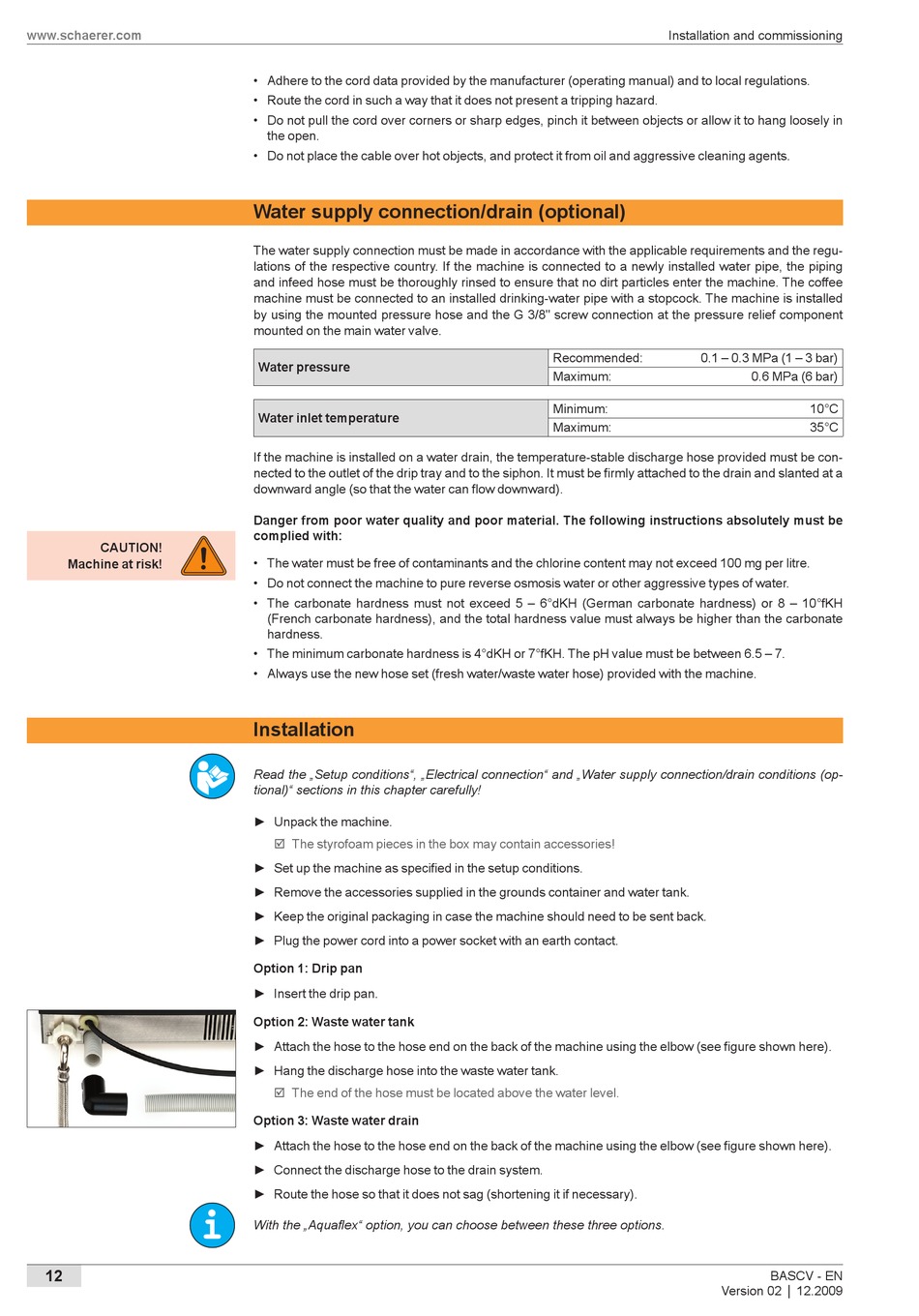

Water supply connection/drain (optional)

The water supply connection must be made in accordance with the applicable requirements and the regu-
lations of the respective country. If the machine is connected to a newly installed water pipe, the piping
and infeed hose must be thoroughly rinsed to ensure that no dirt particles enter the machine. The coffee
machine must be connected to an installed drinking-water pipe with a stopcock. The machine is installed
by using the mounted pressure hose and the G 3/8" screw connection at the pressure relief component
mounted on the main water valve.
Water pressure
Water inlet temperature
If the machine is installed on a water drain, the temperature-stable discharge hose provided must be con-
nected to the outlet of the drip tray and to the siphon. It must be firmly attached to the drain and slanted at a
downward angle (so that the water can flow downward).
Danger from poor water quality and poor material. The following instructions absolutely must be
complied with:
• The water must be free of contaminants and the chlorine content may not exceed 100 mg per litre.
• Do not connect the machine to pure reverse osmosis water or other aggressive types of water.
• The carbonate hardness must not exceed 5 – 6°dKH (German carbonate hardness) or 8 – 10°fKH
(French carbonate hardness), and the total hardness value must always be higher than the carbonate
hardness.
• The minimum carbonate hardness is 4°dKH or 7°fKH. The pH value must be between 6.5 – 7.
• Always use the new hose set (fresh water/waste water hose) provided with the machine.

Installation

Read the „Setup conditions", „Electrical connection" and „Water supply connection/drain conditions (op-
tional)" sections in this chapter carefully!
► Unpack the machine.
The styrofoam pieces in the box may contain accessories!
;
► Set up the machine as specified in the setup conditions.
► Remove the accessories supplied in the grounds container and water tank.
► Keep the original packaging in case the machine should need to be sent back.
► Plug the power cord into a power socket with an earth contact.
Option 1: Drip pan
► Insert the drip pan.
Option 2: Waste water tank
► Attach the hose to the hose end on the back of the machine using the elbow (see figure shown here).
► Hang the discharge hose into the waste water tank.
The end of the hose must be located above the water level.
;
Option 3: Waste water drain
► Attach the hose to the hose end on the back of the machine using the elbow (see figure shown here).
► Connect the discharge hose to the drain system.
► Route the hose so that it does not sag (shortening it if necessary).
With the „Aquaflex" option, you can choose between these three options.
Installation and commissioning
Recommended: 0.1 – 0.3 MPa (1 – 3 bar)
Maximum:
Minimum:
Maximum:
