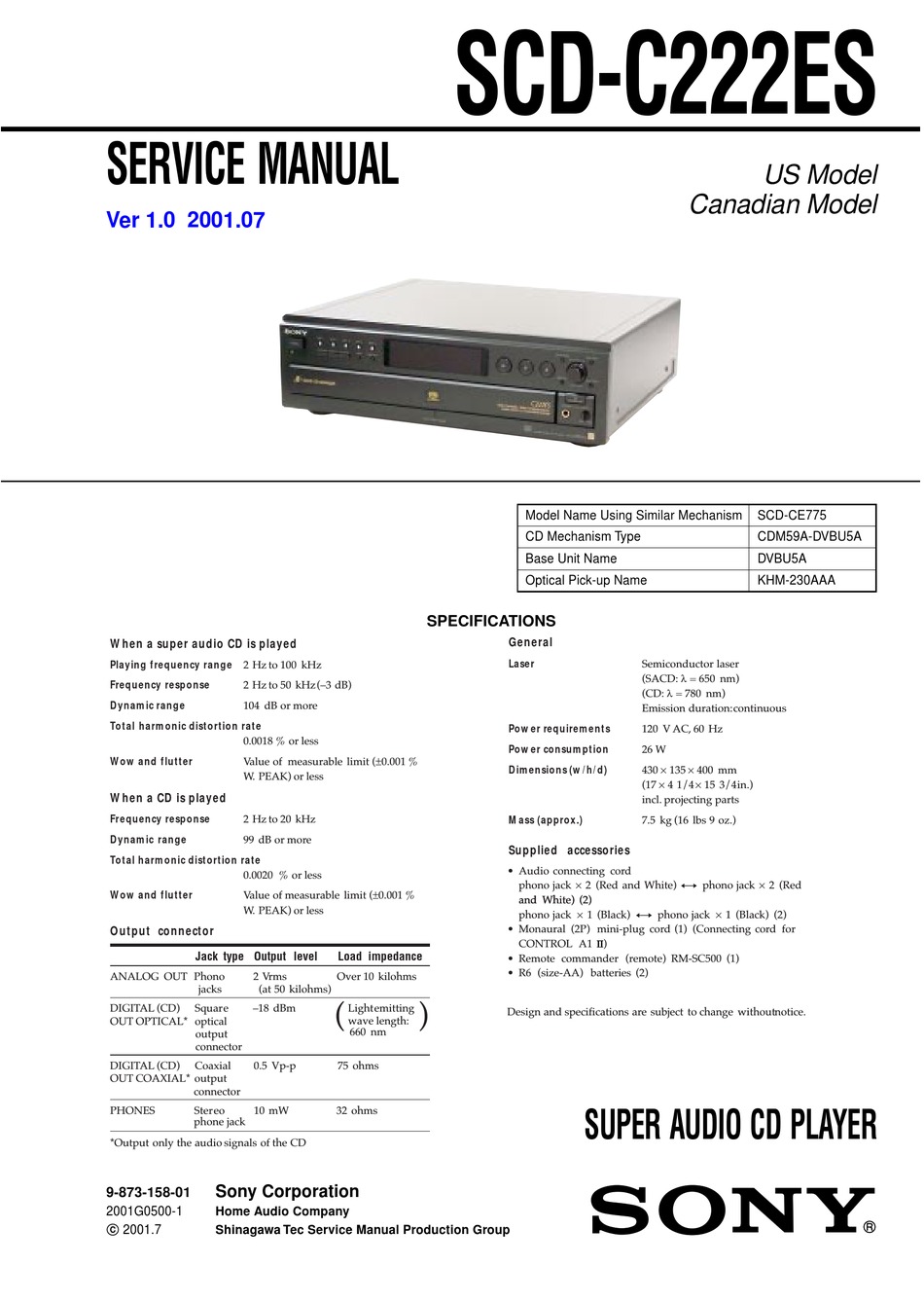

SERVICE MANUAL
Ver 1.0 2001.07
When a super audio CD is played
Playing frequency range 2 Hz to 100 kHz
Frequency response
2 Hz to 50 kHz (–3 dB)
Dynamic range
104 dB or more
Total harmonic distortion rate
0.0018 % or less
Wow and flutter
Value of measurable limit (±0.001 %
W. PEAK) or less
When a CD is played
Frequency response
2 Hz to 20 kHz
Dynamic range
99 dB or more
Total harmonic distortion rate
0.0020 % or less
Wow and flutter
Value of measurable limit (±0.001 %
W. PEAK) or less
Output connector
Jack type Output level
ANALOG OUT Phono
2 Vrms
jacks
(at 50 kilohms)
DIGITAL (CD)
Square
–18 dBm
OUT OPTICAL* optical
output
connector
DIGITAL (CD)
Coaxial
0.5 Vp-p
OUT COAXIAL* output
connector
PHONES
Stereo
10 mW
phone jack
*Output only the audio signals of the CD
Sony Corporation
9-873-158-01
2001G0500-1
Home Audio Company
C 2001.7
Shinagawa Tec Service Manual Production Group
SCD-C222ES
SPECIFICATIONS
• Audio connecting cord
• Monaural (2P) mini-plug cord (1) (Connecting cord for
Load impedance
• Remote commander (remote) RM-SC500 (1)
• R6 (size-AA) batteries (2)
Over 10 kilohms
(
)
Light emitting
Design and specifications are subject to change without notice.
wave length:
660 nm
75 ohms
32 ohms
Model Name Using Similar Mechanism
CD Mechanism Type
Base Unit Name
Optical Pick-up Name
General
Laser
Semiconductor laser
(SACD: λ = 650 nm)
(CD: λ = 780 nm)
Emission duration: continuous
Power requirements
120 V AC, 60 Hz
Power consumption
26 W
430 × 135 × 400 mm
Dimensions (w/h/d)
(17 × 4 1/4 × 15 3/4 in.)
incl. projecting parts
Mass (approx.)
7.5 kg (16 lbs 9 oz.)
Supplied accessories
phono jack × 2 (Red and White) y phono jack × 2 (Red
and White) (2)
and White) (2)
phono jack × 1 (Black) y phono jack × 1 (Black) (2)
CONTROL A1 )
SUPER AUDIO CD PLAYER
US Model
Canadian Model
SCD-CE775
CDM59A-DVBU5A
DVBU5A
KHM-230AAA
